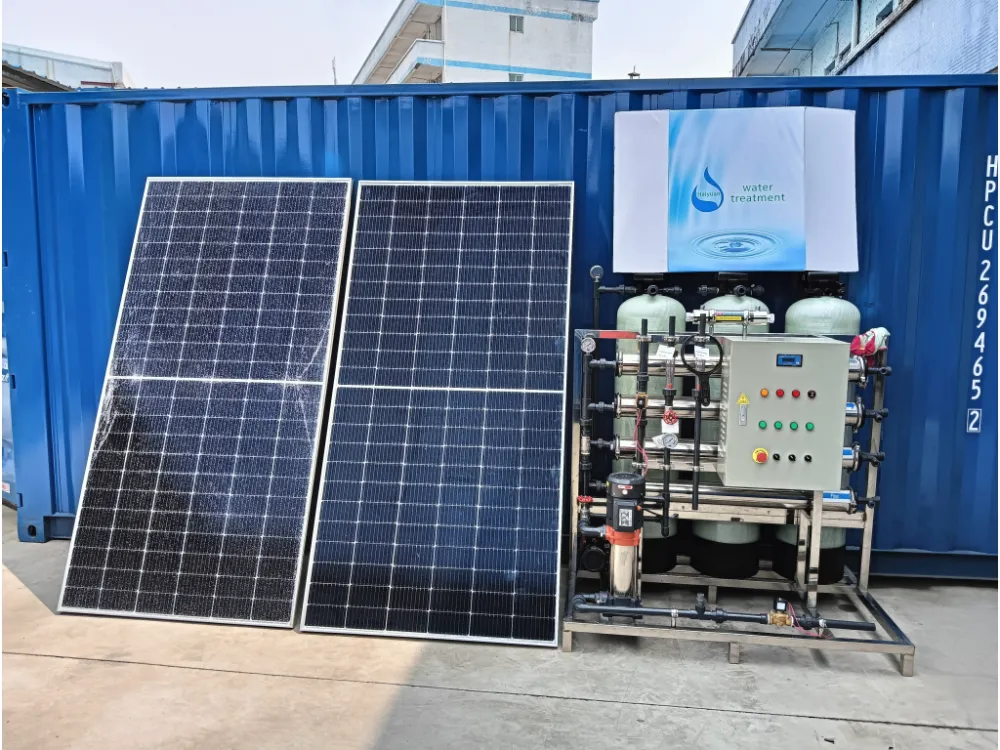

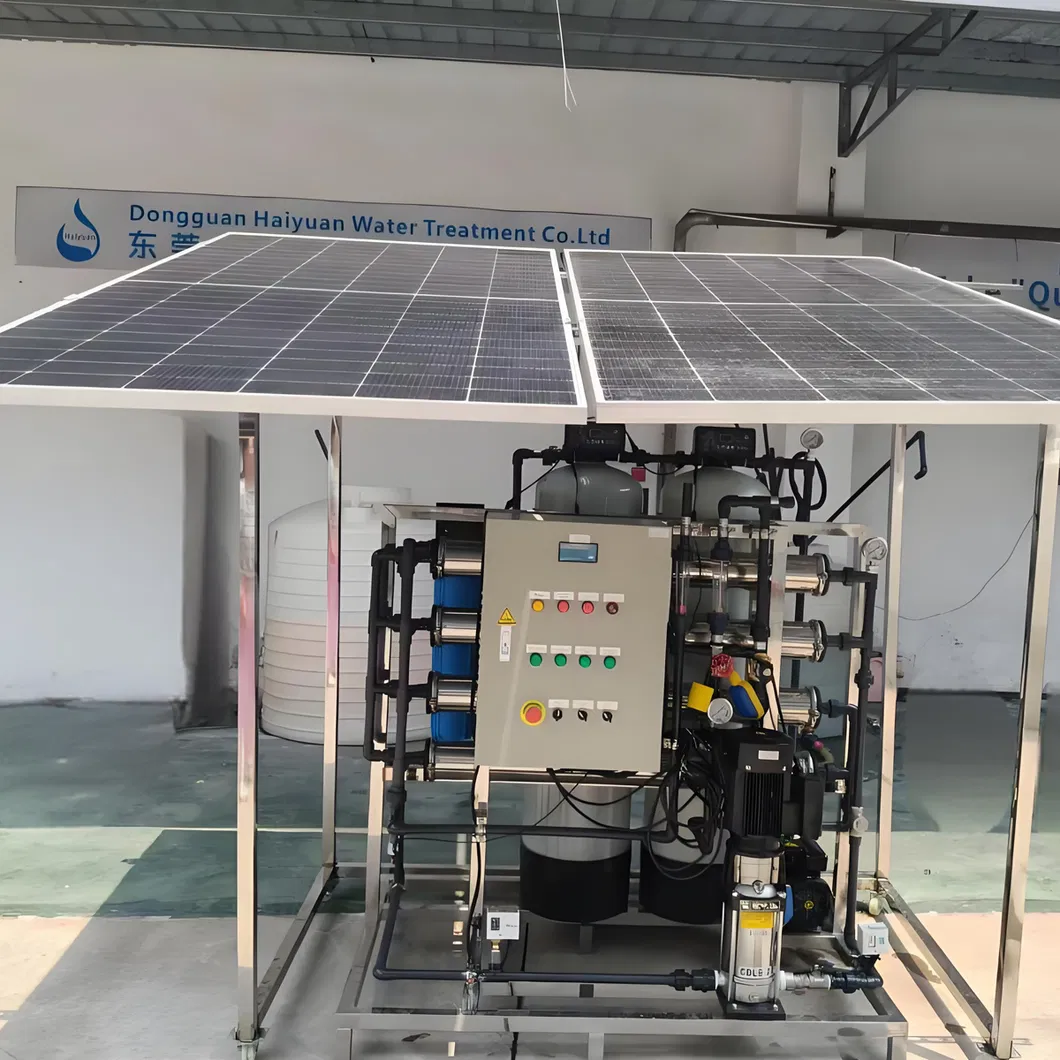

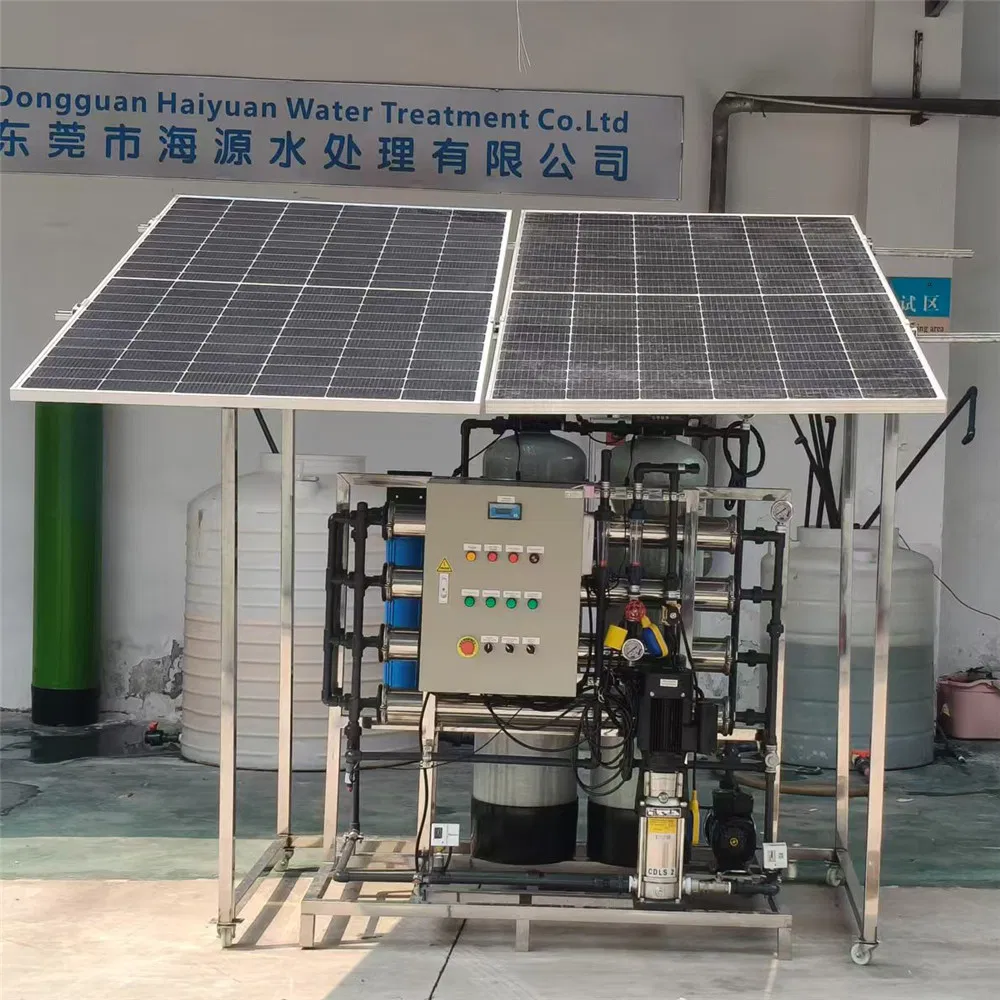

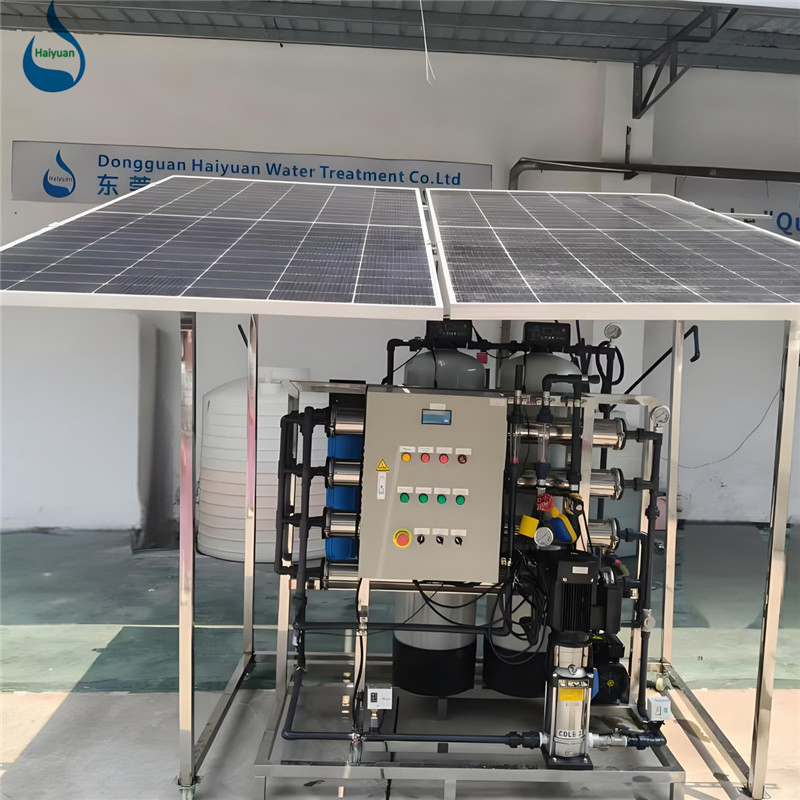

A solar powered reverse osmosis water system is a device that uses solar energy to remove impurities from water (such as seawater, brackish water, etc.) through reverse osmosis technology to produce fresh water. The system integrates solar heat collection, power conversion, and reverse osmosis membrane separation for a sustainable process.
| HY-1000L/hr Solar Reverse Osmosis System Specifications | |||
|---|---|---|---|
| Flow rate | 1000L/hr | Recovery rate | 50% |
| Applicable power | 1PH x 220V, 50Hz | Rated power | 1.65KW |
| Solar powered | 35 KW | Inverter | 44KW |
| Solar panel | 14 PCS | Battery | 14PCS, 36KW |
| Incoming TDS | 80-100 ppm | Output TDS | <0.6ppm |
Industrial Water | Agricultural Irrigation | Remote Areas | Islands | Disaster Relief | Coastal Cities

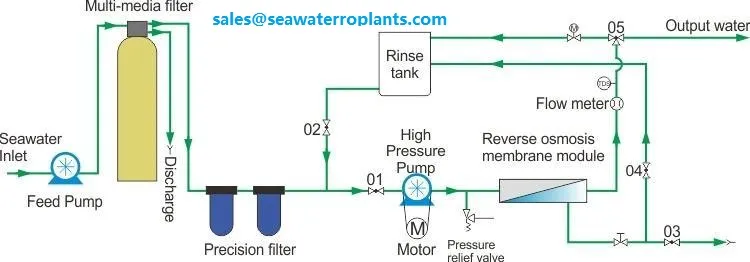

| Phase | Component | Description |
|---|---|---|
| Pre-treatment | Feed water pump | Provides pressure for filters (SS316L) |
| Quartz sand filter | Removes suspended particles and large impurities | |
| Active Carbon Filter | Removes color, chloride, and organic matter | |
| RO Main Part | High pressure pump | Provides pressure for the RO membrane |
| RO membranes | Over 98% desalination rate, removes ions |

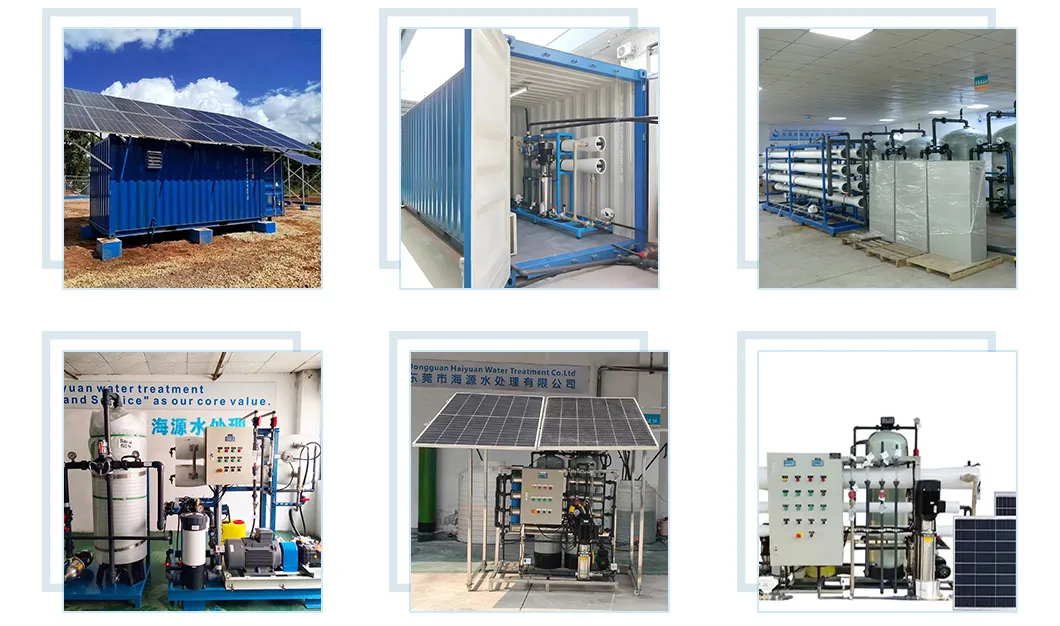

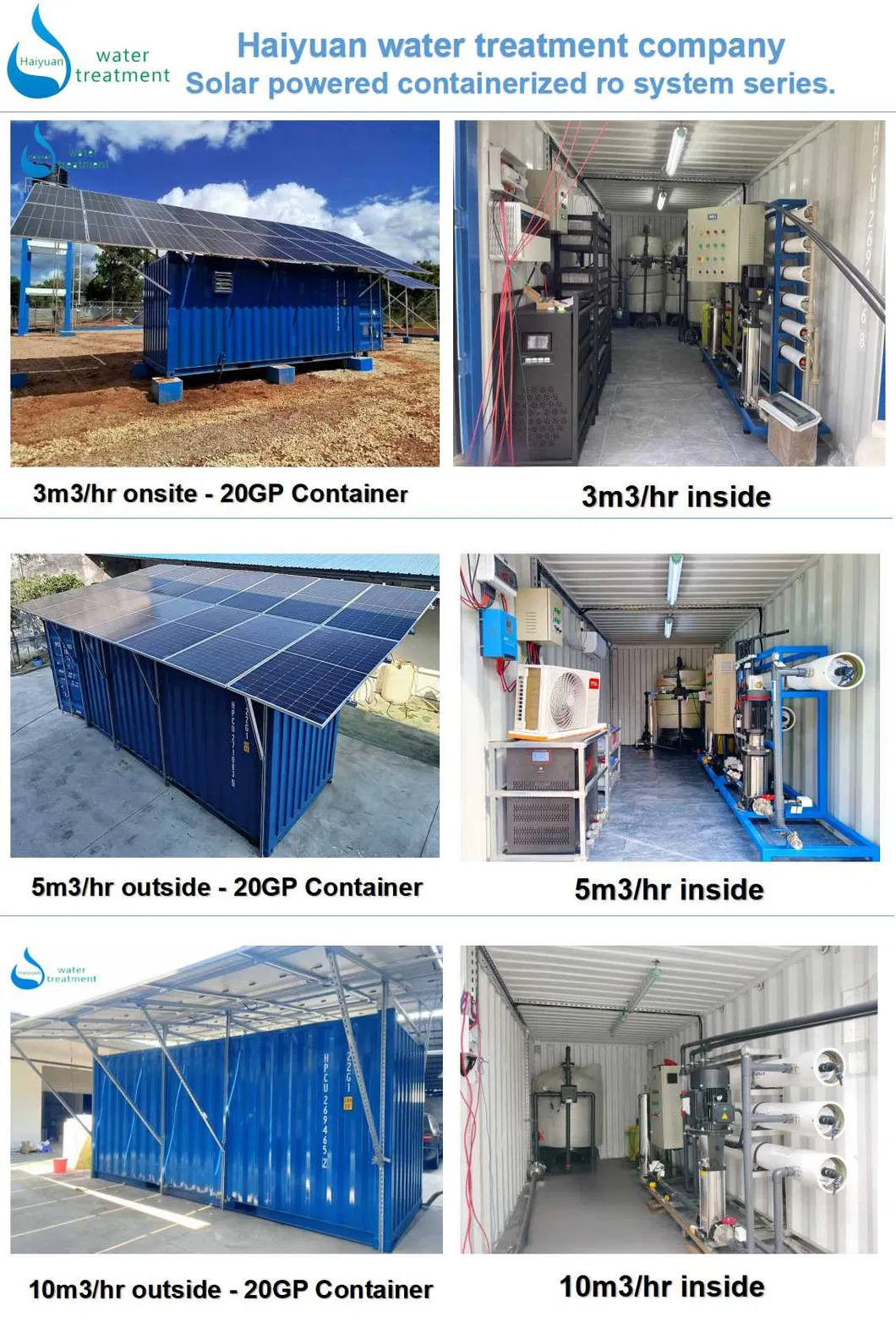

| Model (20GP) | Membrane Qty | Capacity m3/D | Weight/kg | Power |
|---|---|---|---|---|
| HYSW-20GP-20 | 4040×8 | 20 | 2800 | 220V-440V |
| HYSW-20GP-40 | 4040×16 | 40 | 3030 | 50Hz-60Hz |
| Model (40HGP) | Membrane Qty | Capacity m3/D | Weight/kg | Operating Pressure |
|---|---|---|---|---|
| HYSW-40HGP-60 | 8040×6 | 60 | 4900 | 4.0-6.5 Mpa |
| HYSW-40HGP-150 | 8040×16 | 150 | 5530 | 4.0-6.5 Mpa |

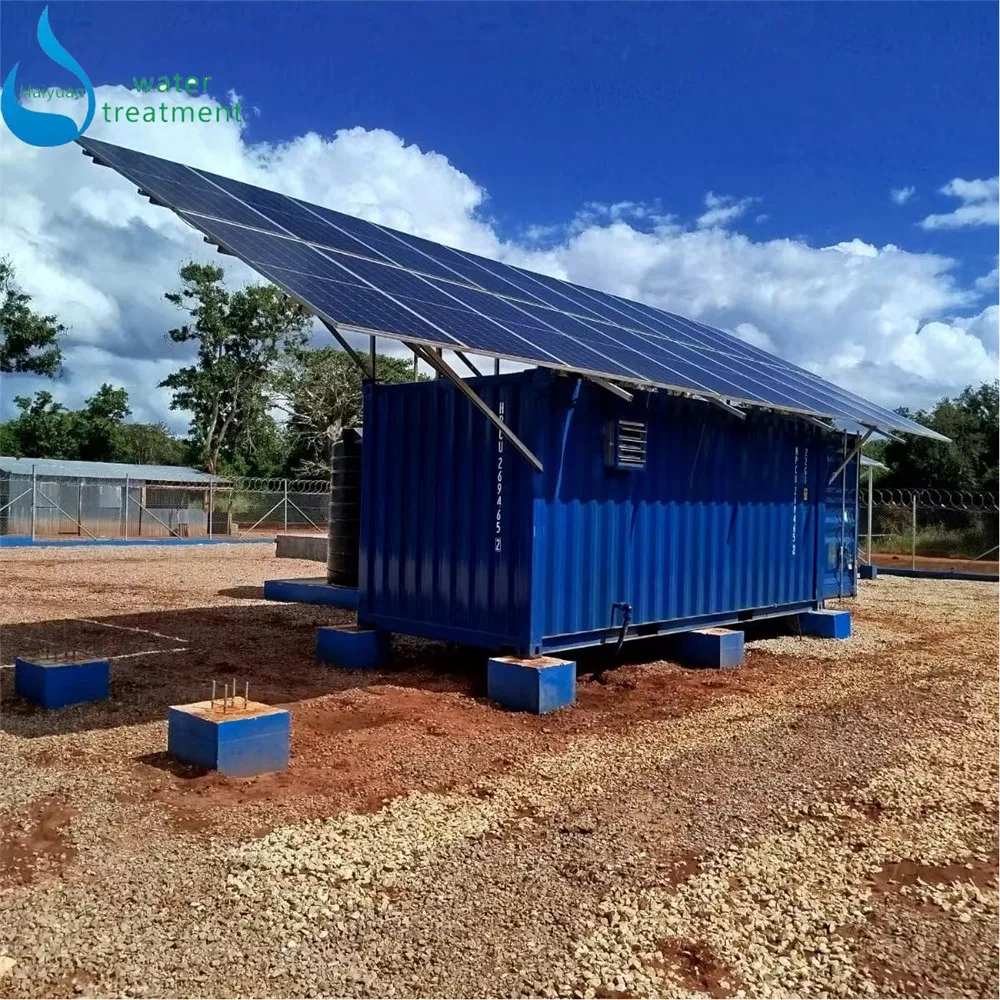

Over 15 years of experience in water treatment systems. We design, manufacture, install, and commission containerized RO solar-powered desalination plants. Our mission is to be your water treatment industry consultant, providing high-quality service and reasonable pricing.

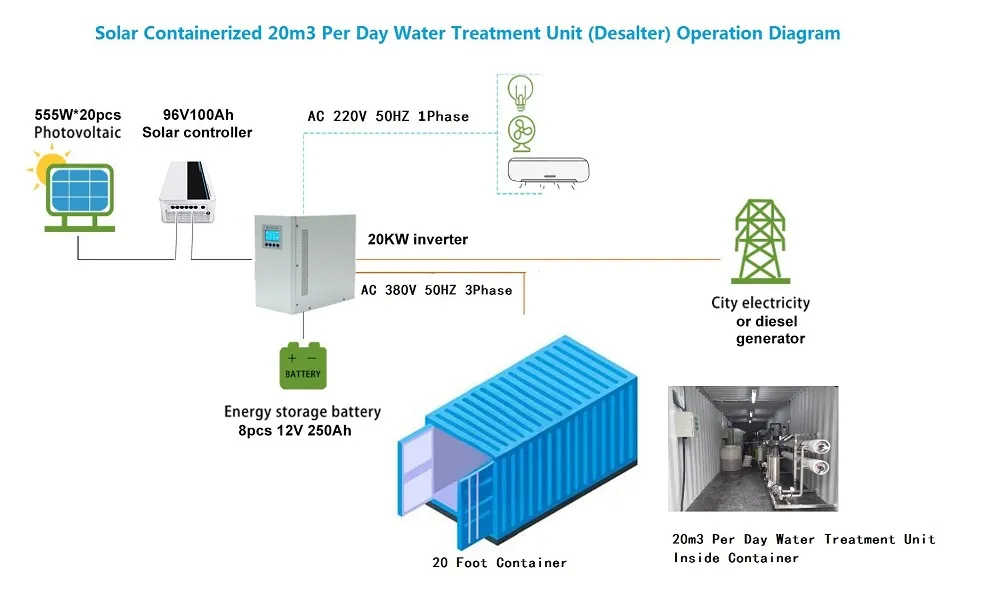

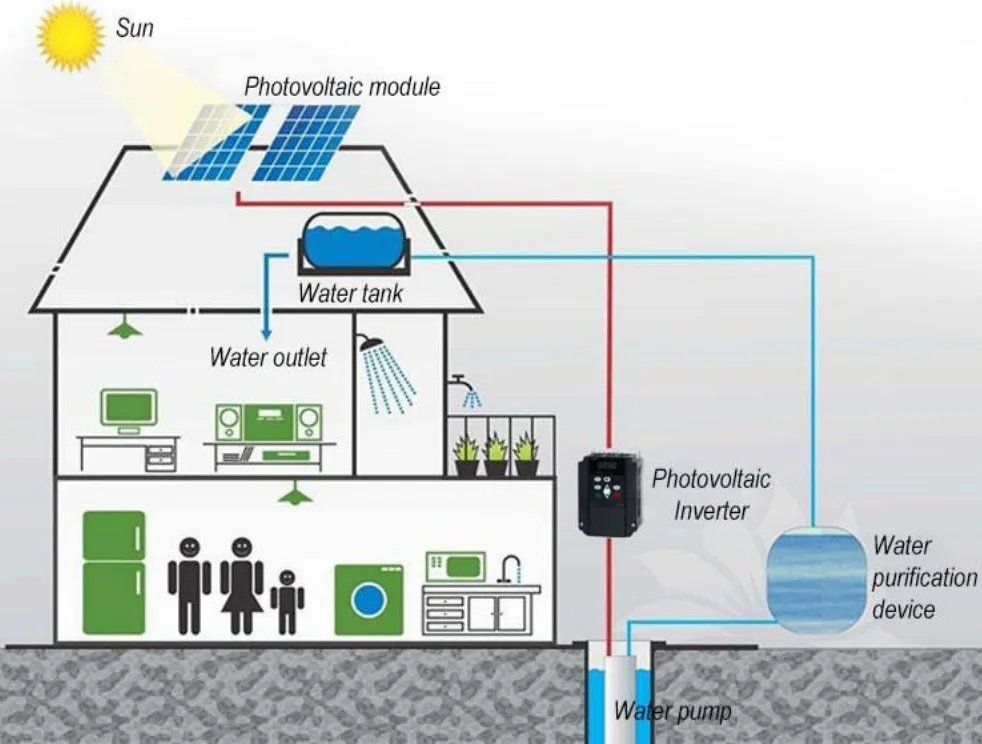

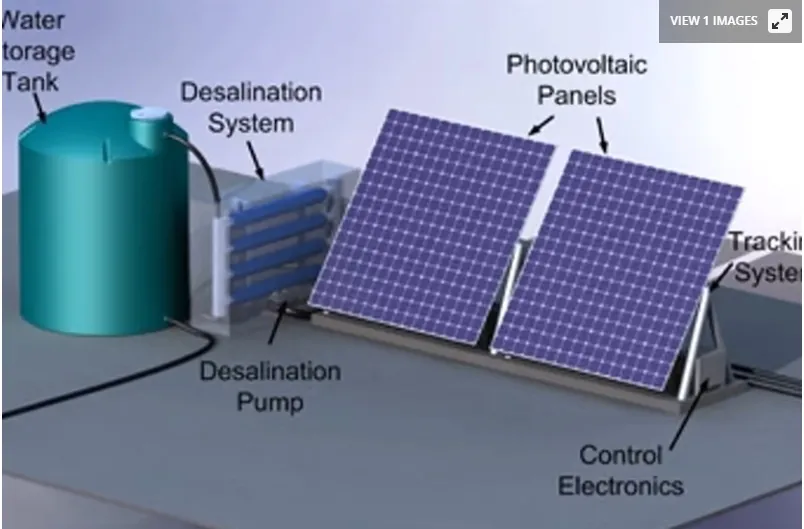

It uses solar panels to capture energy, which is then converted to power a high-pressure pump. This pump forces salt water through a reverse osmosis membrane, separating pure fresh water from salts and impurities.
Yes, the system can be configured with battery storage (such as the 14PCS 36KW battery pack) to store solar energy for use during the night or on cloudy days.
The system is highly adaptable and can process seawater, brackish water, and various types of salt water to produce high-quality drinking or irrigation water.

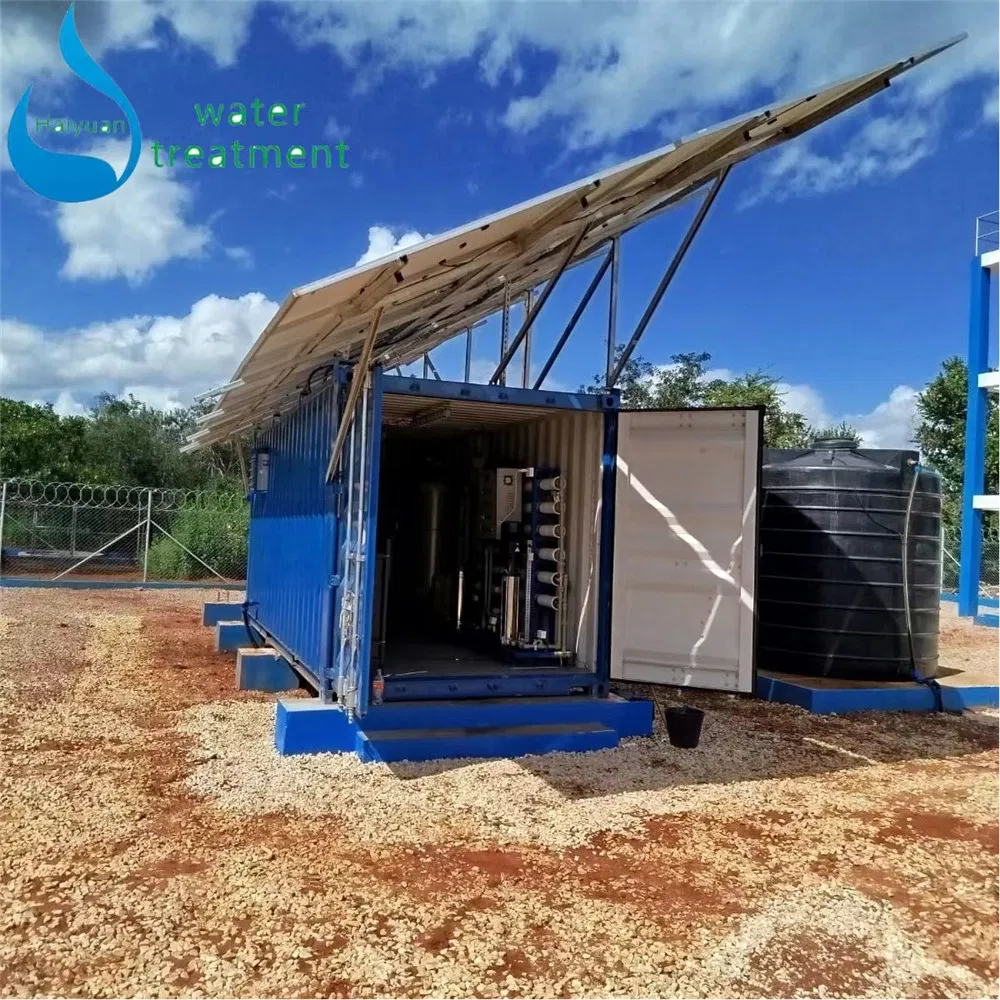

Absolutely. Since it relies on solar energy, it is the perfect solution for islands or remote coastal areas where electricity supply is unstable or non-existent.
Membrane life depends on water quality and maintenance. The system includes pre-treatment filters and an anti-scalant system to prolong the membrane's life and efficiency.
Yes, we provide professional installation instructions, remote online video guidance, and can provide overseas on-site service to help with the setup.
