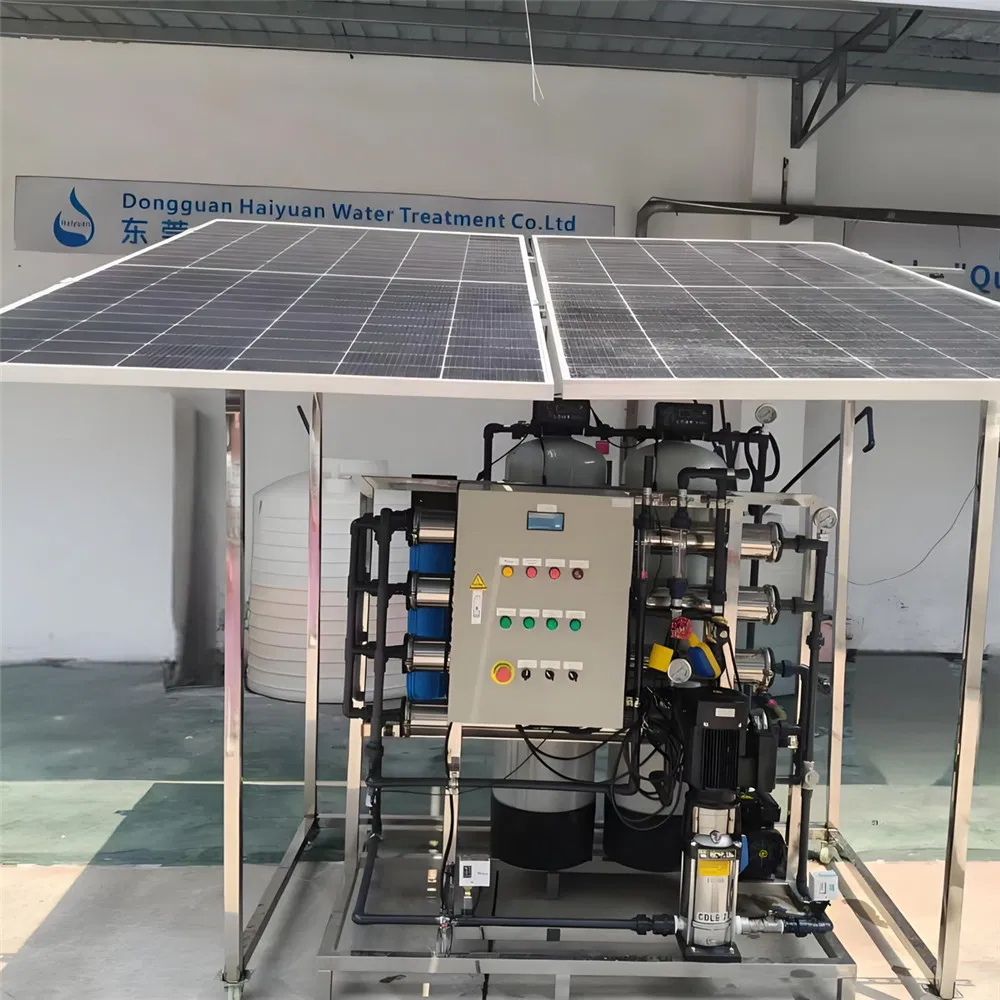

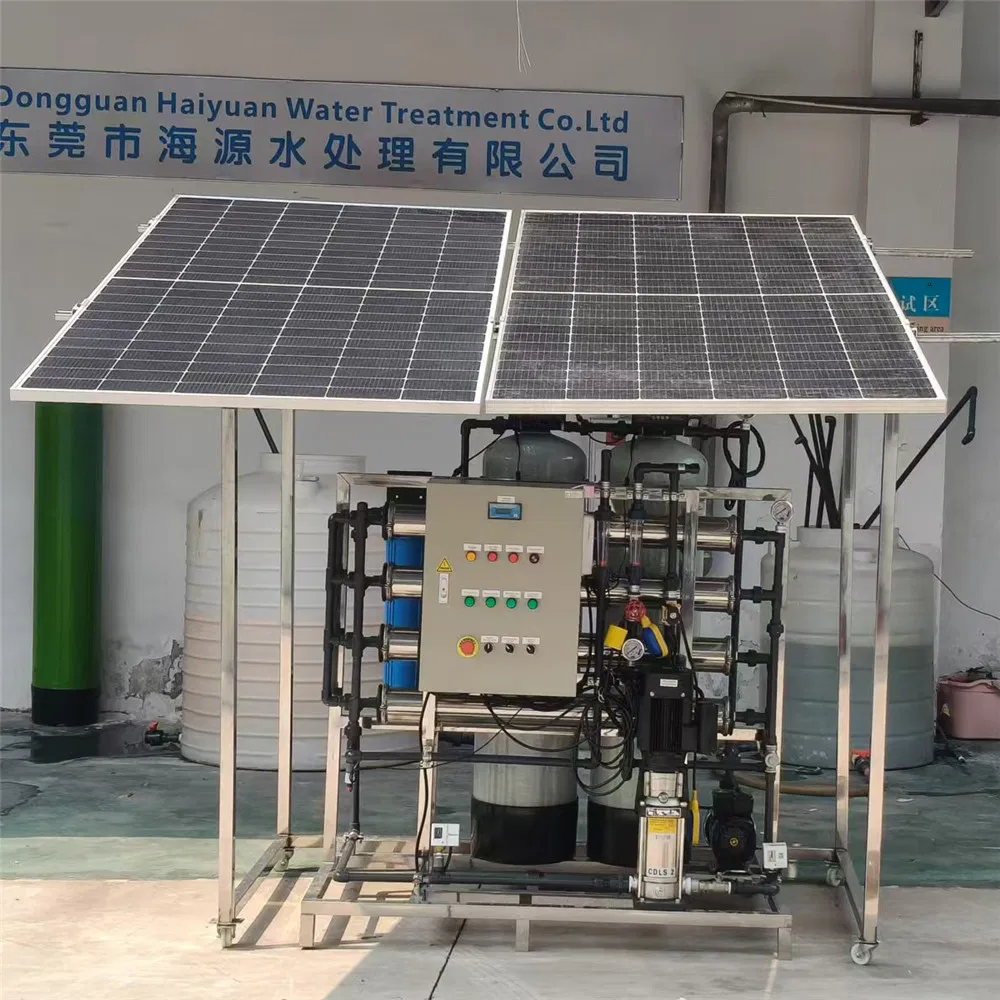

Best-Selling Manufacture Quality Salt Water Incoming Water RO System Solar Powered Reverse Osmosis Desalination System

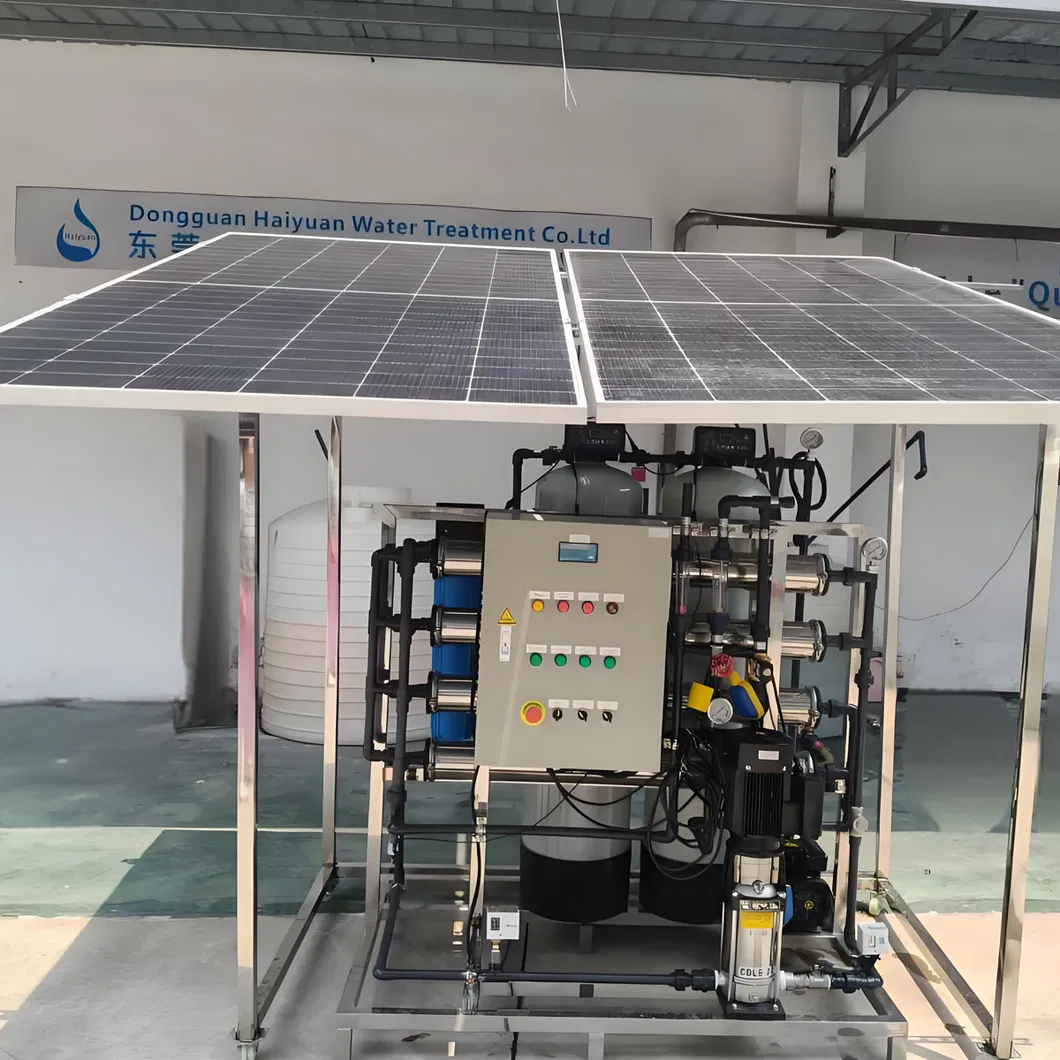

A solar powered reverse osmosis water system is a device that uses solar energy to remove impurities from water (such as seawater, brackish water, etc.) through reverse osmosis technology to produce fresh water. The system integrates solar heat collection, power conversion, and reverse osmosis membrane separation to achieve a sustainable process of extracting clean water.
Key Advantages
1. Low Operating Cost Uses free solar energy, saving significant energy costs during long-term operation.
2. Strong Adaptability Ideal for remote areas, islands, and disaster zones with limited power supply.
3. Superior Water Quality Effectively removes inorganic salts, heavy metals, bacteria, and organic matter.
4. Sustainability Powered by an inexhaustible energy source, ensuring stable long-term operation.
Technical Parameters (1000L/hr)
Flow Rate: 1000L/hr
Recovery Rate: 50%
Applicable Power
1PH x 220V, 50Hz
Rated Power
1.65KW
Solar Powered
35 KW
Inverter
44KW
Solar Panel
14 PCS
Battery
14PCS, 36KW
Incoming TDS
80-100 ppm
Output Water TDS
<0.6ppm
Working Pressure
2.9 Bar
Operating Temp
5-45ºC
RO Membranes
4PCS 4040
Control System
Variable-frequency Drive
Core Functions & Applications
Sustainable Fresh Water Supply: Meet industrial, commercial, and residential needs by desalinating brackish water.
Water Quality Safety: Ensures drinking water safety by removing harmful components.
Disaster Response: Quickly provides fresh water for relief and reconstruction efforts.

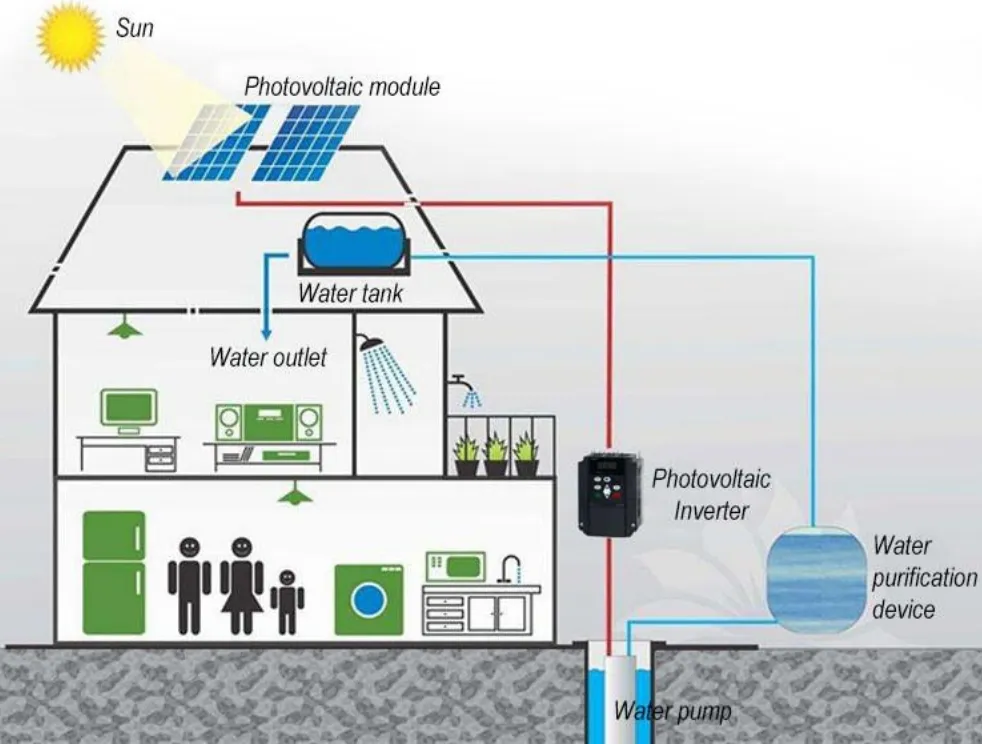

Typical Application Scenarios
Industrial Processing
Agricultural Irrigation
Remote Off-grid Areas
Island Communities
Emergency Disaster Relief
Coastal Water-Scarce Cities
Process Workflow
Stage
Components
Function
Pre-treatment
Feed pump (SS 316L)
Provide initial pressure for filtration
Quartz Sand & Carbon Filter
Remove suspended particles, color, and organic matter
5 & 1 Micron Filters
Protect RO membrane from micro colloids
Main Part
High Pressure Pump (SS 316L)
Force water through RO membranes
RO Membranes
Remove over 98% of ions and salts

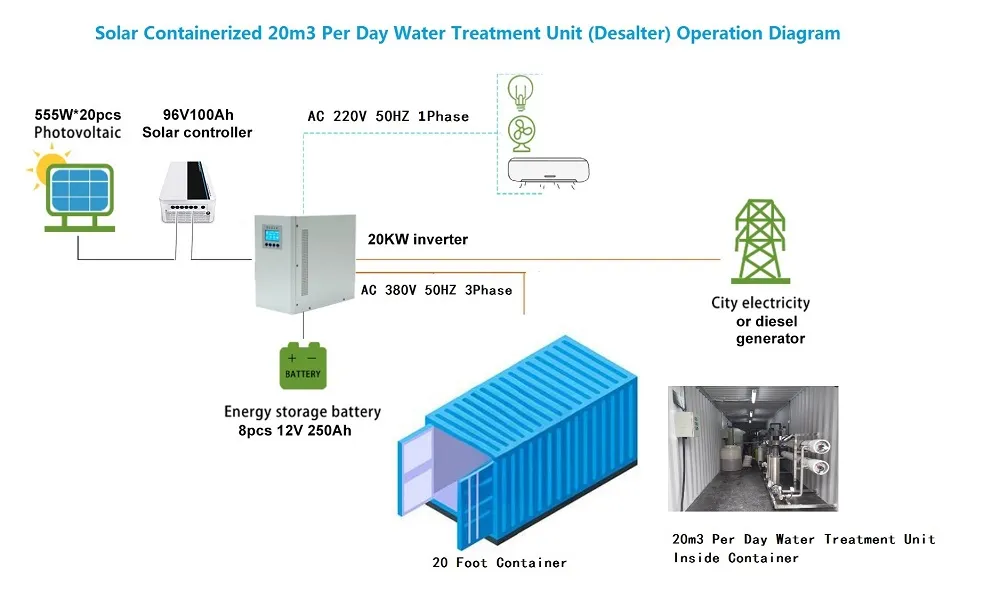

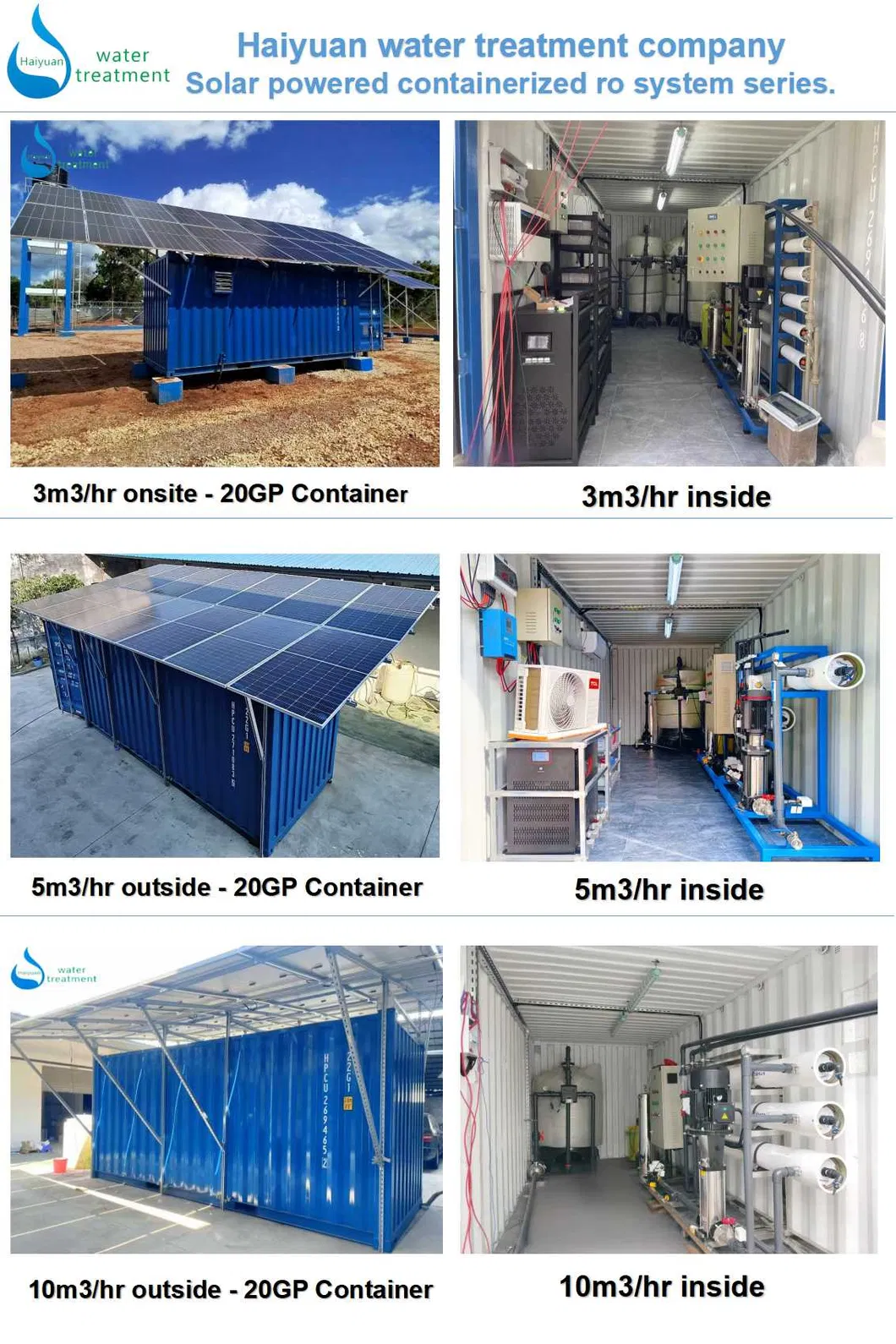

Containerized Solution Options
20GP Container Models
Model
Membranes
Capacity (m³/D)
Weight (kg)
Pressure (Mpa)
HYSW-20GP-20
4040×8
20
2800
4.0-6.5
HYSW-20GP-40
4040×16
40
3030
4.0-6.5
40HGP Container Models
Model
Membranes
Capacity (m³/D)
Weight (kg)
Pressure (Mpa)
HYSW-40HGP-60
8040×6
60
4900
4.0-6.5
HYSW-40HGP-150
8040×16
150
5530
4.0-6.5

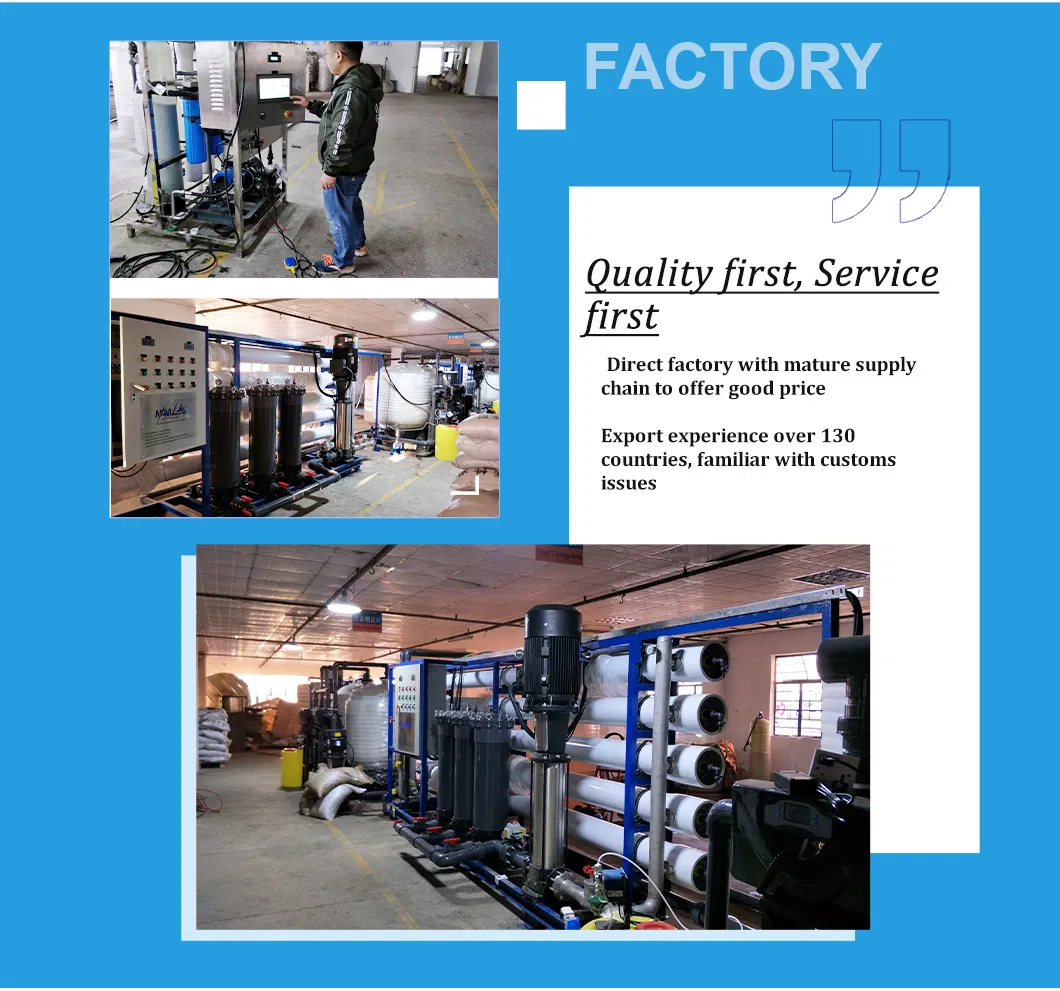

Factory & Quality Assurance
Service and After-Sales
Overseas installation assistance available.
Direct manufacturer pricing and support.
OEM & ODM customization based on user requirements.
24/7 After-sales department support.
Stocked consumables and wearing parts for quick replacement.
Professional technical guidance and operation videos provided.
One-year product guarantee.
Frequently Asked Questions
How does solar energy power the RO system?
The system uses solar panels to convert sunlight into electricity, which is then stored in batteries or used directly via an inverter to drive the high-pressure pumps required for the reverse osmosis process.
What is the desalination rate of the membranes?
The system uses high-quality RO membranes that offer a desalination rate of over 98%, effectively turning salt water into high-quality fresh water.
Can the system work at night or on cloudy days?
Yes, by integrating a battery storage system, the energy collected during sunny periods can be used to power the system during the night or during low-light conditions.
What kind of maintenance is required?
Regular maintenance includes flushing the sand and carbon filters and periodic cleaning of the RO membranes (CIP system) to prevent scaling and blocking.
Is the system mobile or permanent?

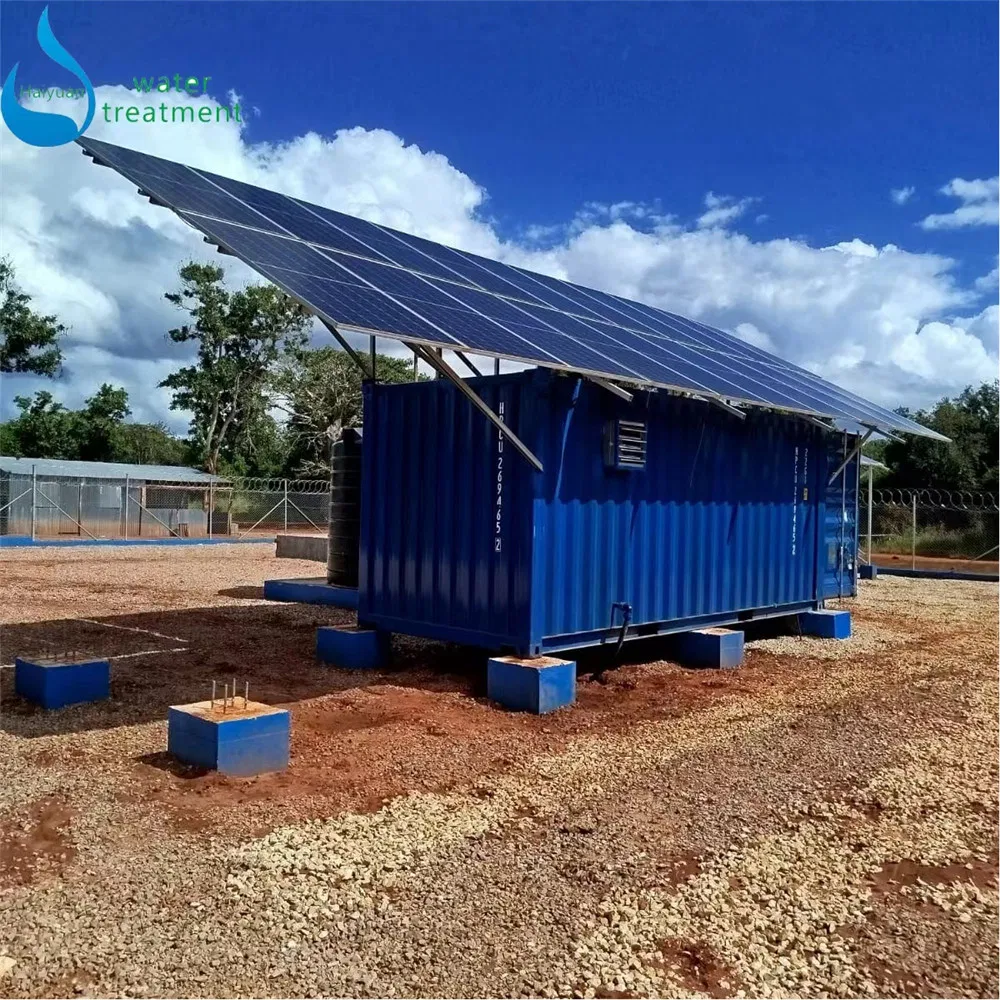

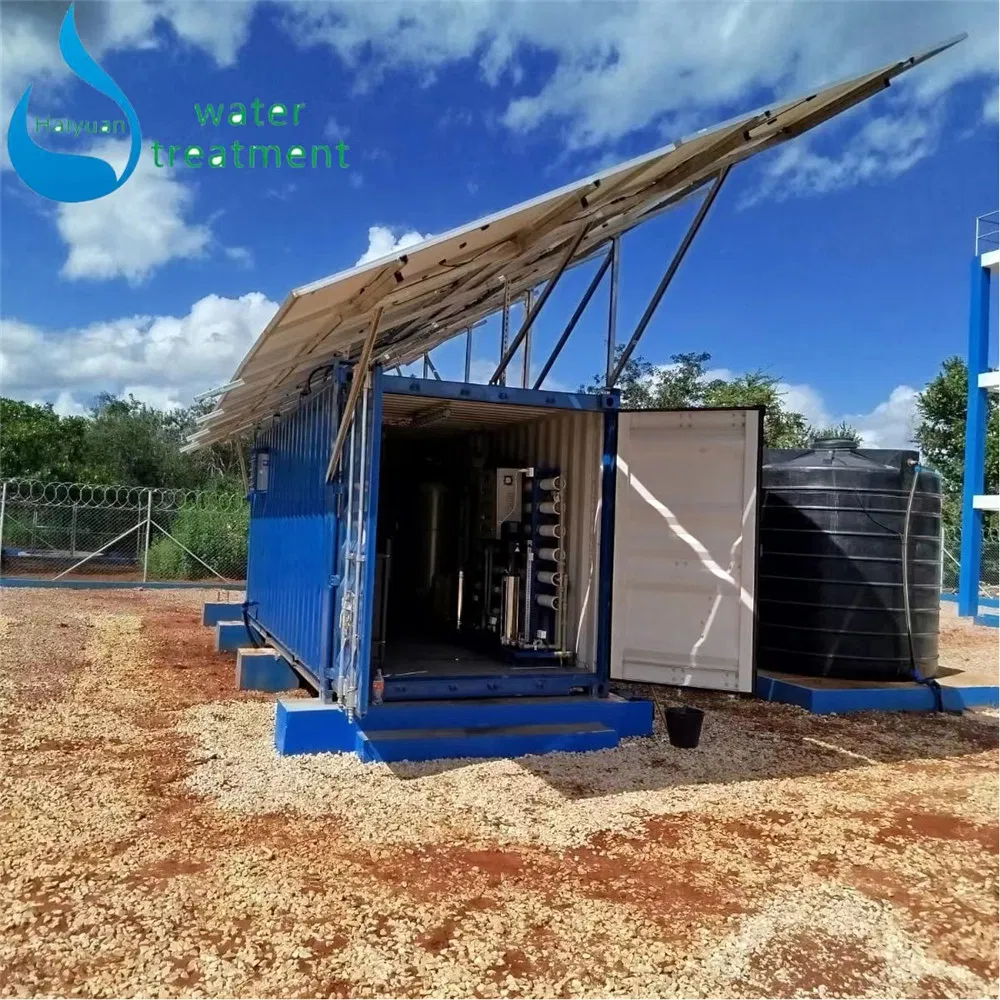

We offer containerized solutions (20GP/40HGP) that are highly mobile, easy to transport, and require minimal site installation.
Can the output capacity be customized?
Absolutely. While our standard model is 1000L/hr, we can customize the flow rate and system configuration to meet your specific water requirements.
