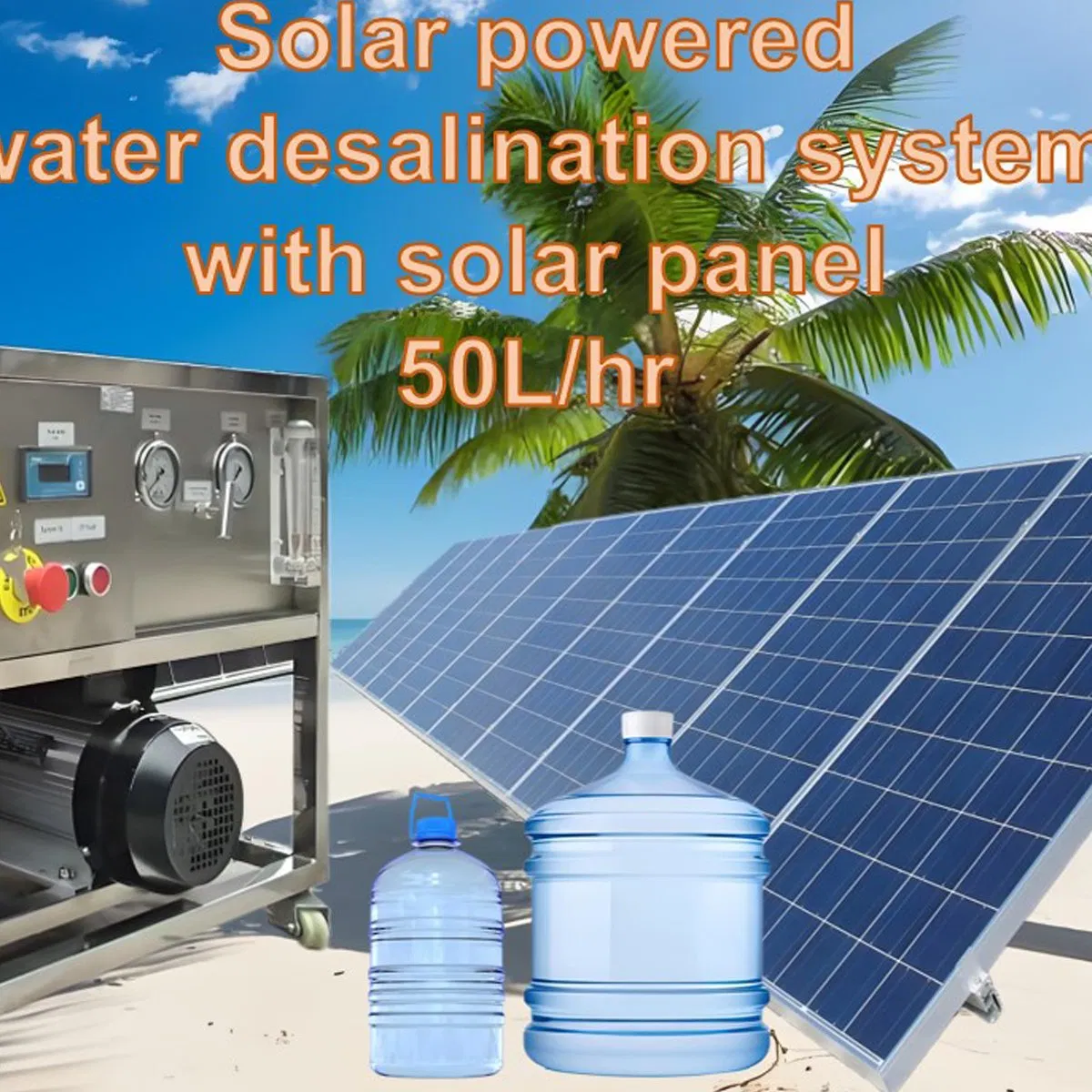

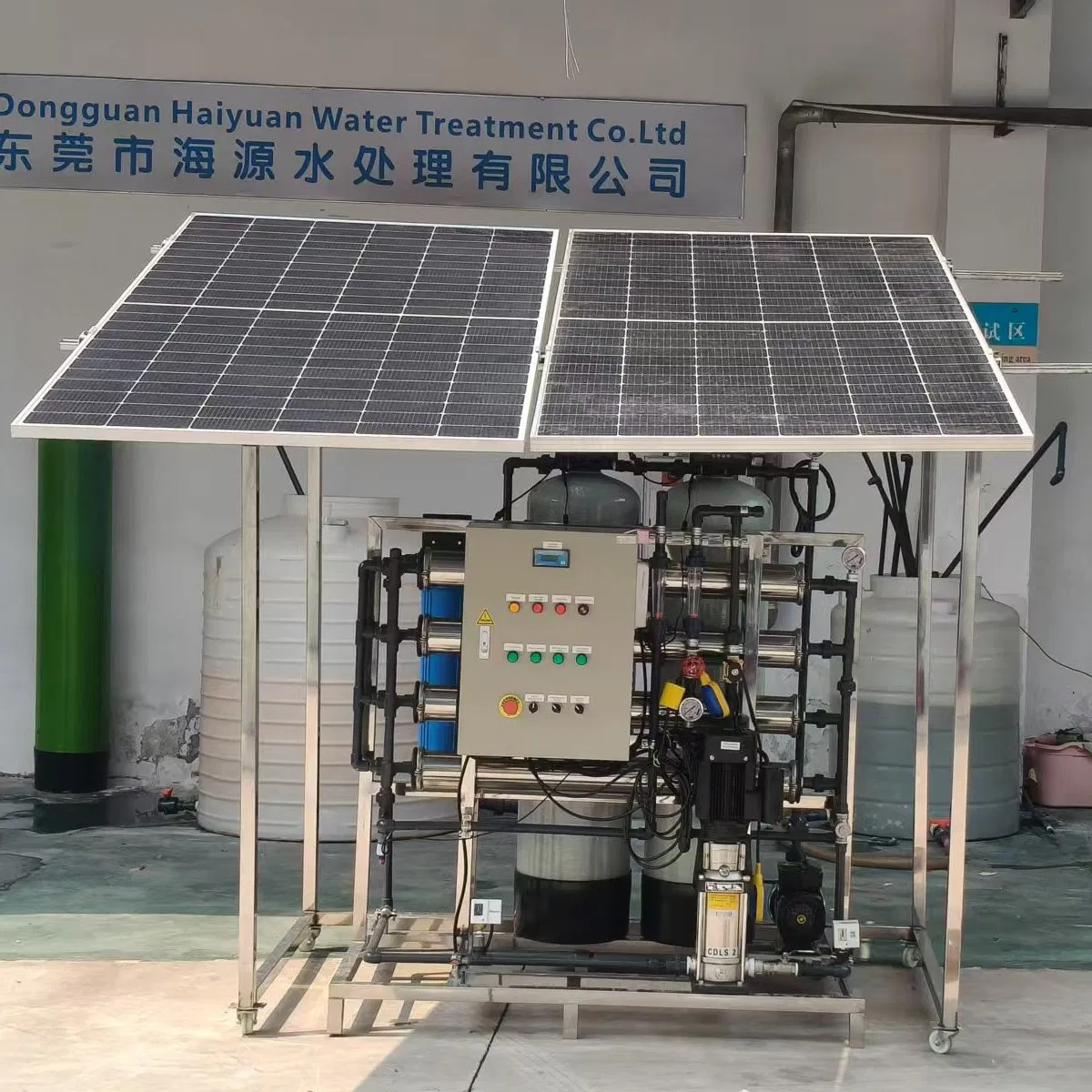

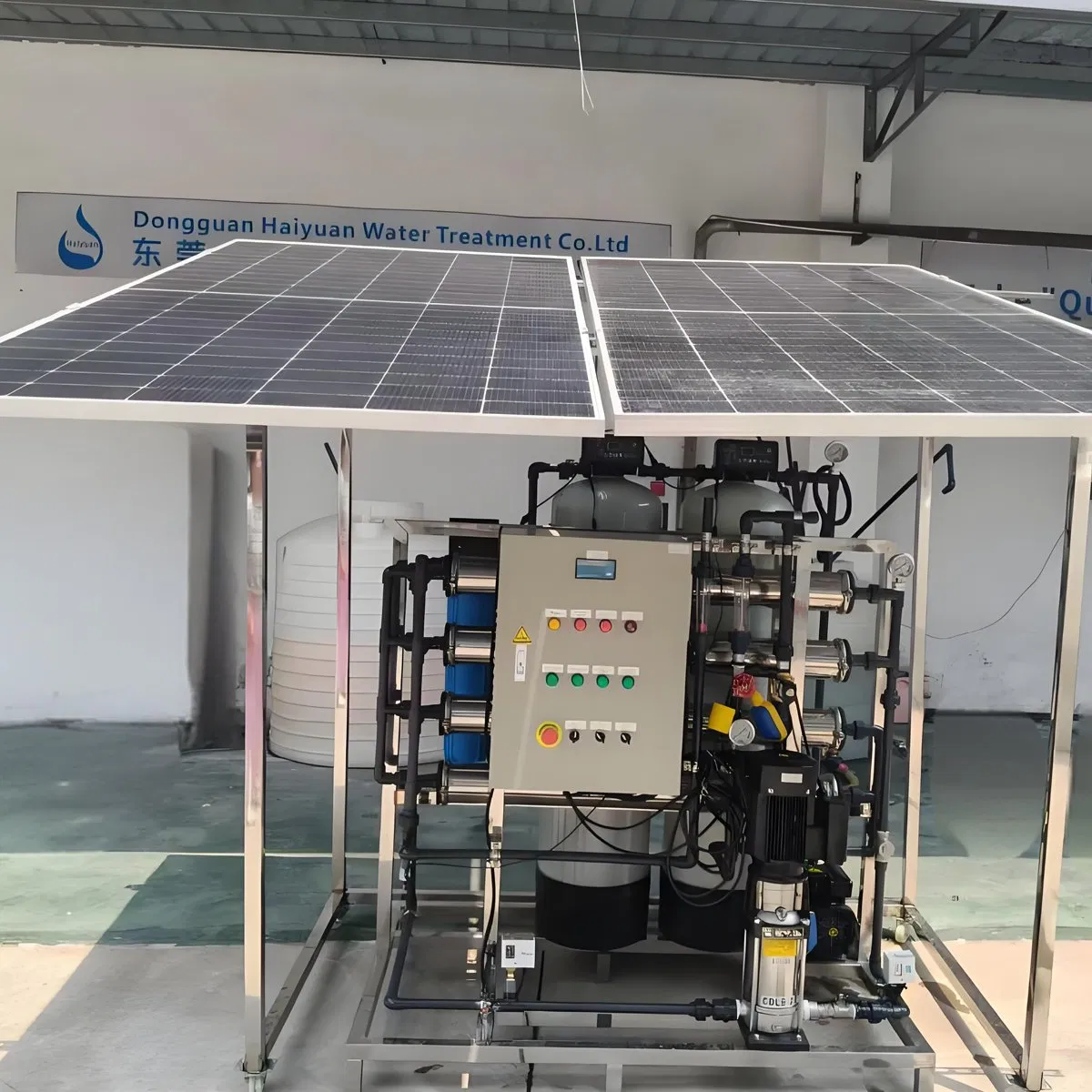

Solar Reverse Osmosis Ro System 1000lph Solar Powered Water Treatment Systems
Solar Water Purification System to make fresh water

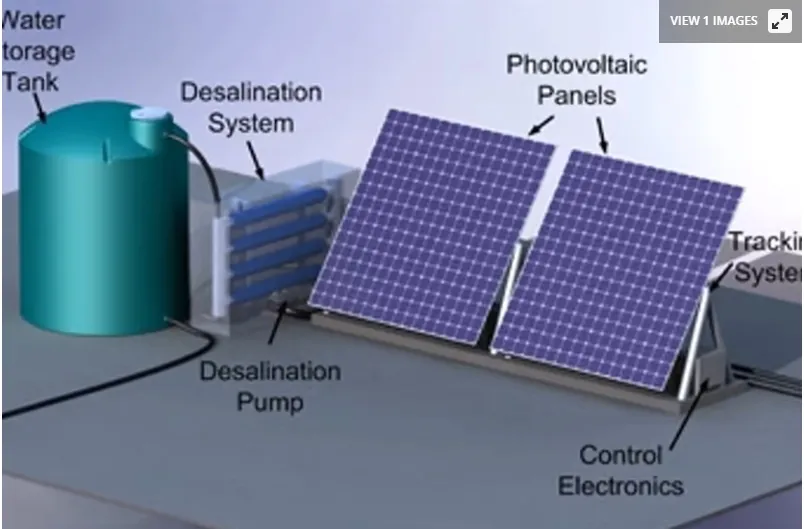

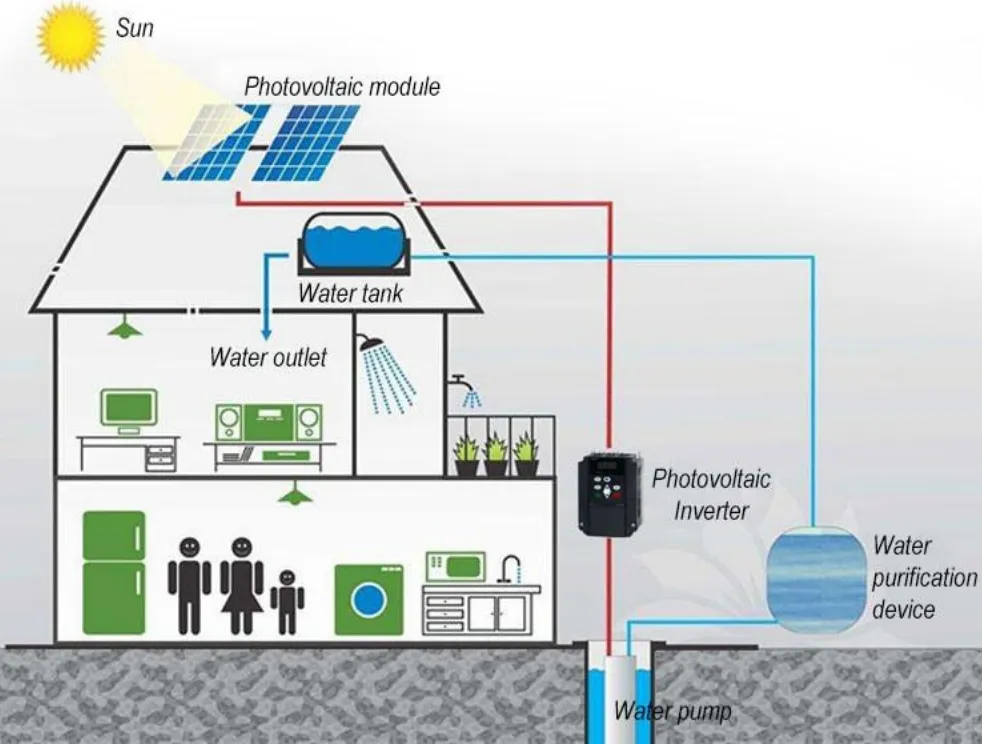

What is solar reverse osmosis water system?
A solar powered reverse osmosis water system is a device that uses solar energy as energy to remove impurities from water (such as seawater, brackish water, etc.) through reverse osmosis technology to produce fresh water. The system integrates multiple technical links such as solar heat collection, power conversion and reverse osmosis membrane separation to achieve a green and sustainable process of extracting fresh water from water.
| HY-1000L/hr solar reverse osmosis water system Specifications | |||
|---|---|---|---|
| Flow rate | 1000L/hr | Recovery rate | 50% |
| Applicable power | 1PH x 220V, 50Hz | Rated power | 1.65KW |
| Solar powered | 35 KW | Inverter | 44KW |
| Incoming TDS | 80-100 ppm | Output TDS | <0.6ppm |
1. Provide fresh water supply: Desalinates seawater/brackish water for industry, commerce, and residential use.
2. Improve water quality: Ensures drinking water safety by removing harmful components.
3. Respond to natural disasters: Quickly provides fresh water for disaster relief and reconstruction.
Common Scenarios: Industrial water, Agricultural irrigation, Remote areas, Islands, Disaster areas, Coastal water-scarce cities.
| Pre-treatment | Quartz sand filter | Remove suspended particles and large impurities. |
| Active Carbon Filter | Remove color, free chloride, and organic matter. | |
| Anti-scalant system | Prevent membrane blocking and prolong lifespan. | |
| 5 & 1 micron filter | Remove micro colloids in the water. | |
| Main RO Part | High pressure pump (SS316L) | Provide high pressure to RO membrane. |
| Ro membranes | More than 98% desalination rate. |

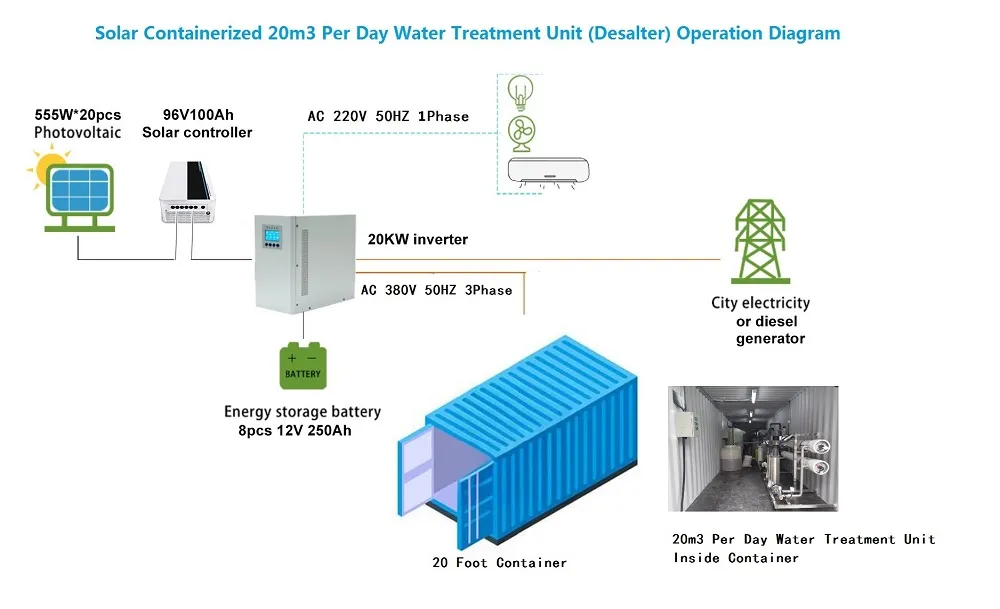

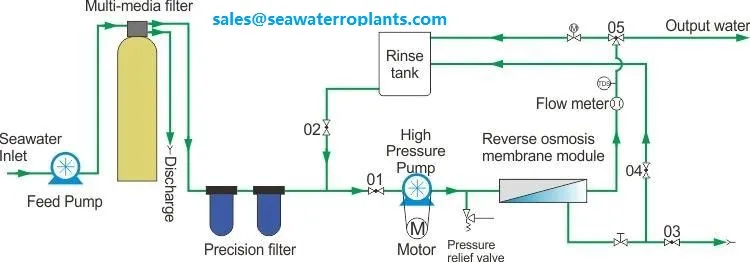

SWRO process flow chart:

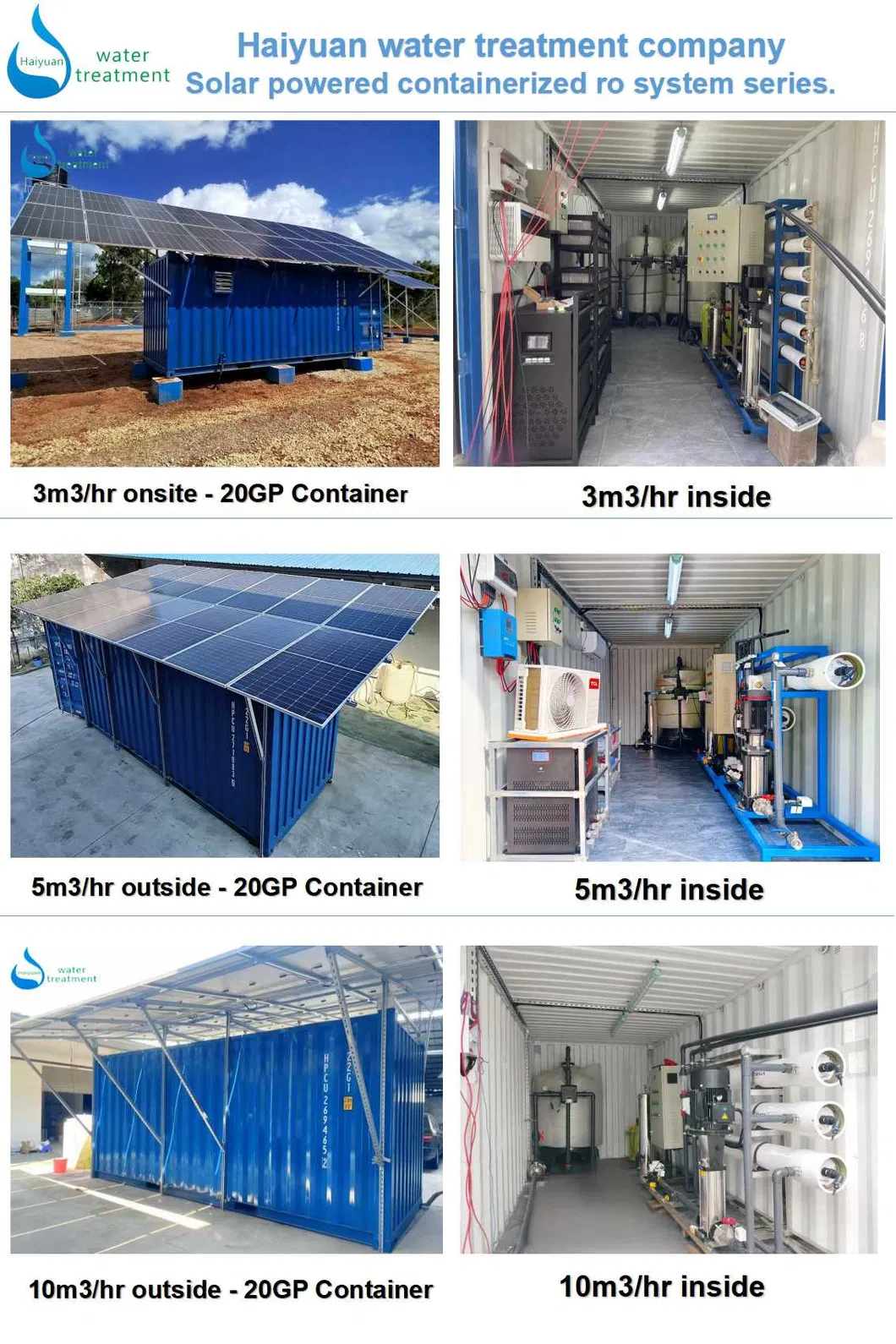

| Model (20GP) | Capacity m3/D | Weight/kg | Pressure/Mpa |
|---|---|---|---|
| HYSW-20GP-20 | 20 | 2800 | 4.0-6.5 |
| HYSW-20GP-40 | 40 | 3030 | 4.0-6.5 |

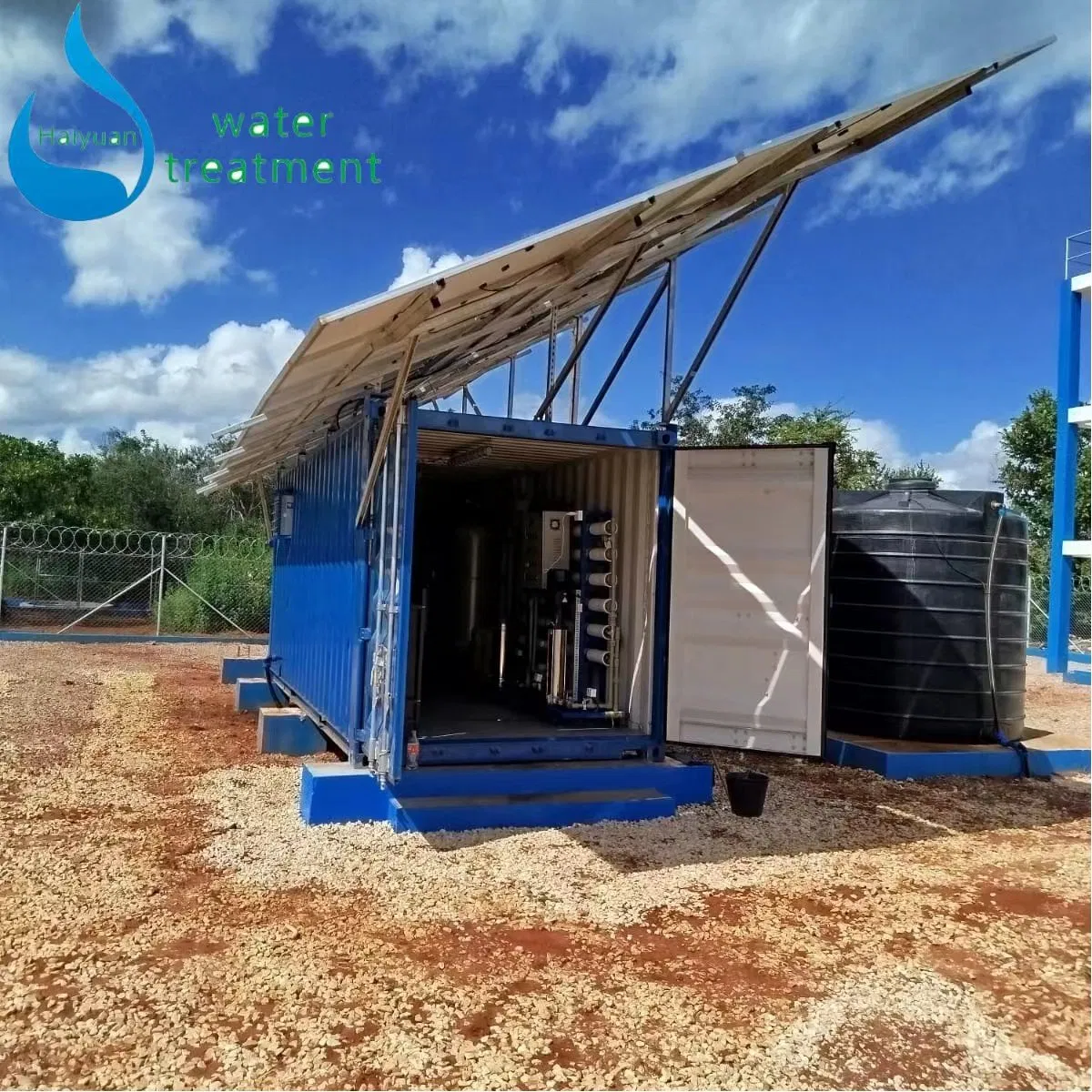

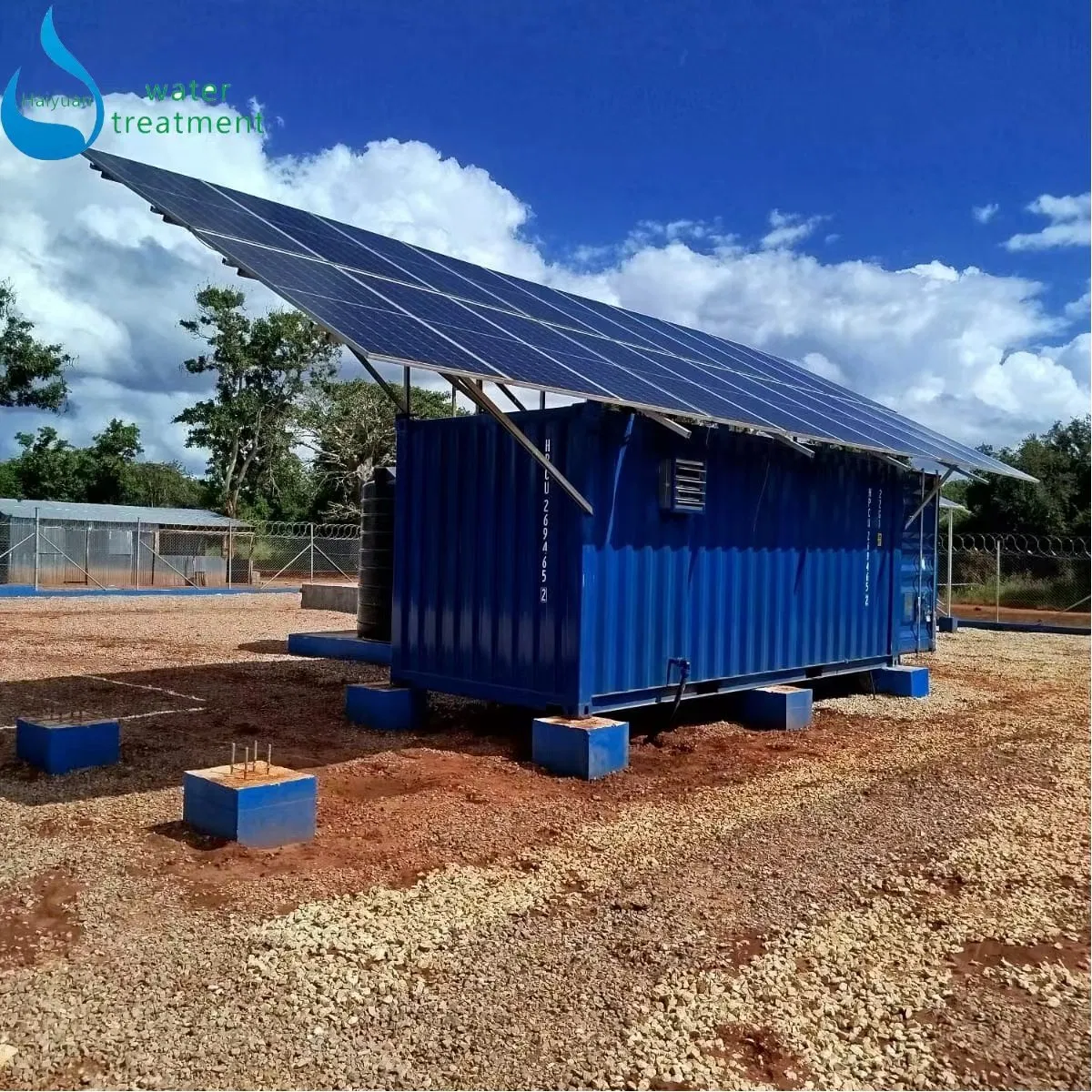

Professional design, manufacture, installation, and commissioning of container RO solar powered water purification systems. With more than 15 years of experience in water treatment systems, we provide integrated professional solutions with advanced technology. Our mission is to be your water treatment industry consultant, enabling customers to get ideal products.
