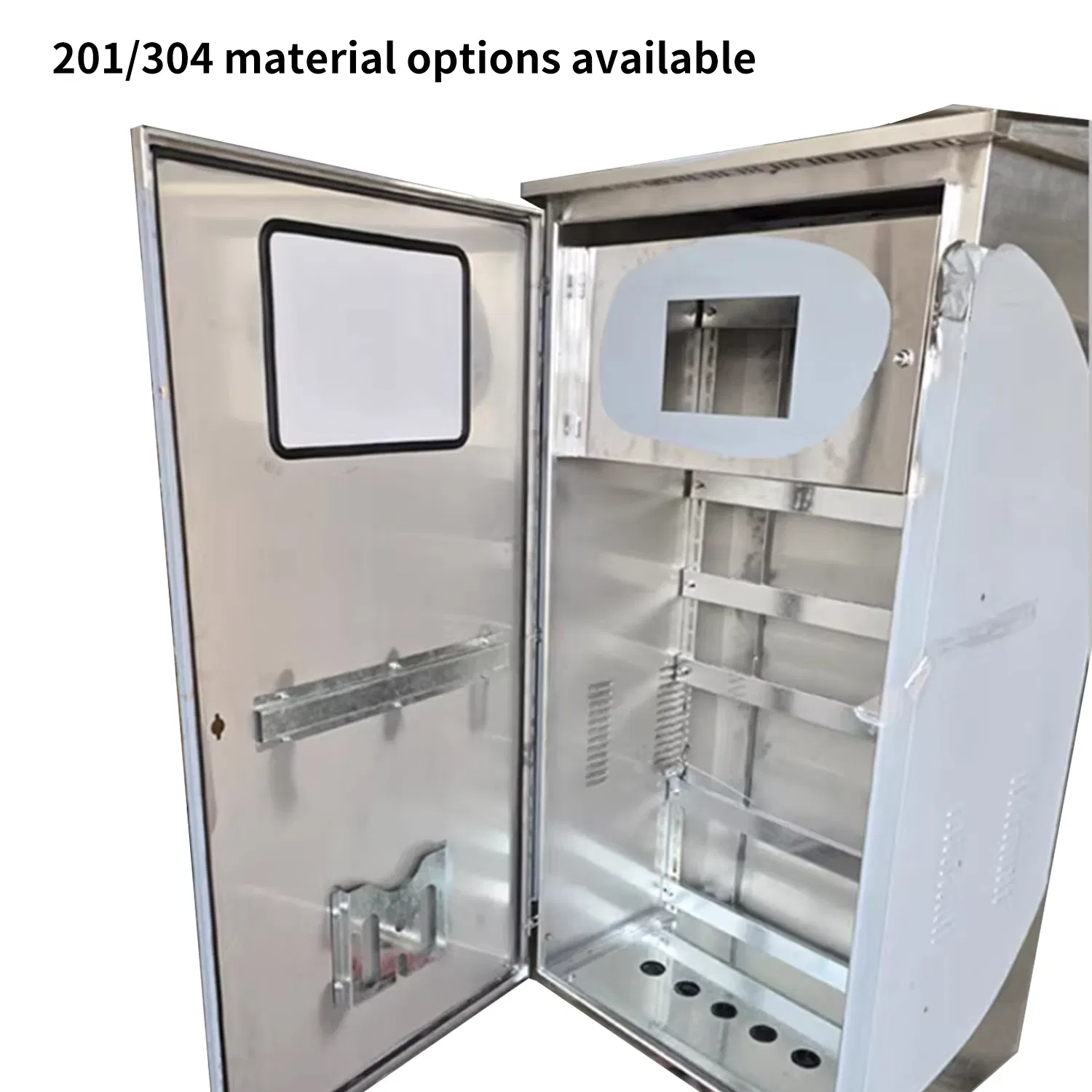

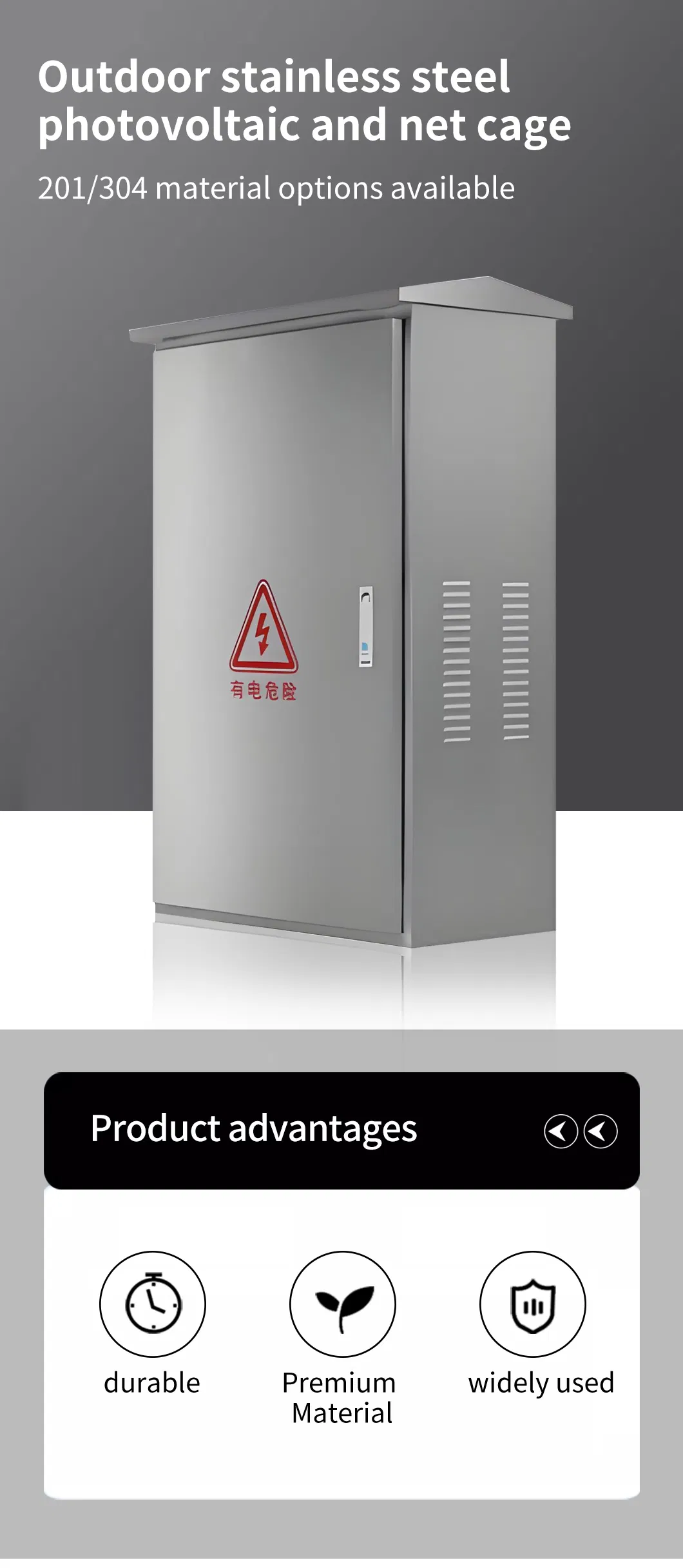

Compact Outdoor Electrical Enclosure System with Outdoor Stainless Steel Photovoltaic and Net Cage Space Saving

Customization:	Available
Type:	Distribution Metering Box
Structure:	Protection

i

Basic Specifications

Certification

ISO9001:2000, VDE, CCC

Form

Partly-welded Type

Operation Voltage

High Voltage

Size

Multi-size options

Application Range

Outdoor Power Systems

Shell Material

Stainless Steel

Protection Grade

IP56 / IP65

Product Type

Battery Rack Enclosure / Solar Cabinet

Material

304 Stainless Steel Panels

Mounting Type

Floor-Standing, Wall-Mountable

Cooling System

Natural Ventilation, Optional Fan Kit

Production Capacity

500 Pieces Per Month

★

Product Description

Model / Size Code (mm)	External Dimensions (LxWxH, mm)	Material Options	Protection Rating	Application Profile
ODPC-600-1000-350	600 x 1000 x 350	201 / 304 Stainless	IP65 / NEMA 4	Main breakers, busbars, and metering equipment.

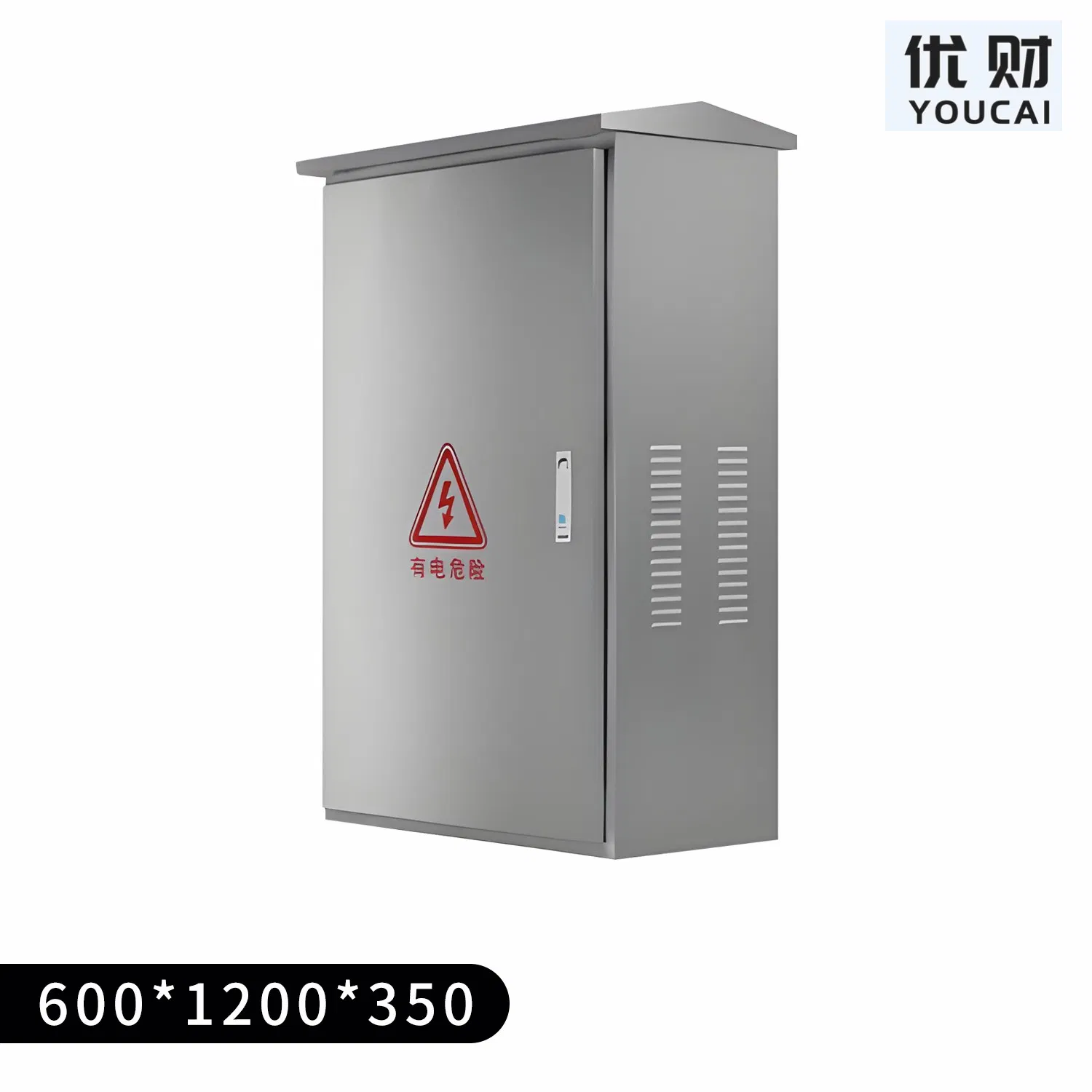

ODPC-600-1200-350	600 x 1200 x 350	201 / 304 Stainless	IP65 / NEMA 4	Vertical Power Cabinet for limited floor area.
ODPC-700-1500-370	700 x 1500 x 370	201 / 304 Stainless	IP65 / NEMA 4	Solar farm combiners or substation cabinets.
ODPC-700-1700-370	700 x 1700 x 370	201 / 304 Stainless	IP65 / NEMA 4	Roadside communication & power hybrid gear.
ODPC-800-1800-370	800 x 1800 x 370	201 / 304 Stainless	IP65 / NEMA 4	Master control panel for mining or port machinery.

✔

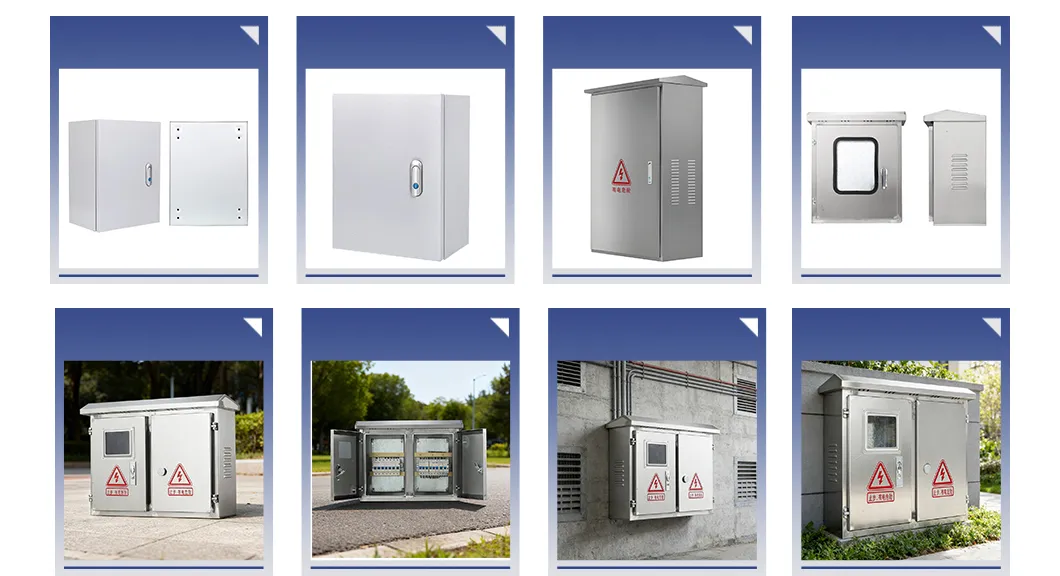

Main Products Range

⚓

Professional Distribution Solutions

Specializing in the research, development, and customization of high-end power distribution equipment, we provide safe, reliable, and energy-saving power system solutions for new energy generation, industrial manufacturing, and infrastructure.

The core product range includes high and low voltage distribution cabinets, photovoltaic grid connection boxes, prefabricated cabins, and energy storage equipment. All products follow authoritative standards such as GB and IEC, ensuring stable operation under complex working conditions.

✦

Certifications & Global Presence

?

Frequently Asked Questions

Is a stainless steel meter box completely rust-proof?

Not absolutely. Stainless steel relies on a passive film to prevent rust; corrosion may occur if the film is damaged. We recommend 304 for inland areas and 316/316L for coastal or high-corrosion industrial environments.

How to verify the material is genuine 304/316?

Use the magnet test (304/316 is mostly non-magnetic), request a material test report, or check the surface smoothness and weld uniformity for high-quality finishing.

What protection rating is best for outdoor use?

Ordinary outdoor use requires at least IP54. For rain-prone areas, choose IP55/IP65. For high-pressure washing or dusty environments, IP66 is recommended. This model is IP65 by default.

What should be considered during installation?

Install in a shaded, vibration-free area at least 1.8 meters above ground. Ensure vertical mounting, reliable grounding, and properly sealed gaps for wire entry.

How do I select the right size?

Select based on the number of users, reserving 2-3 extra slots for future expansion. Ensure ample internal space for any additional components. Consult support for precise sizing.

Can these cabinets be customized?

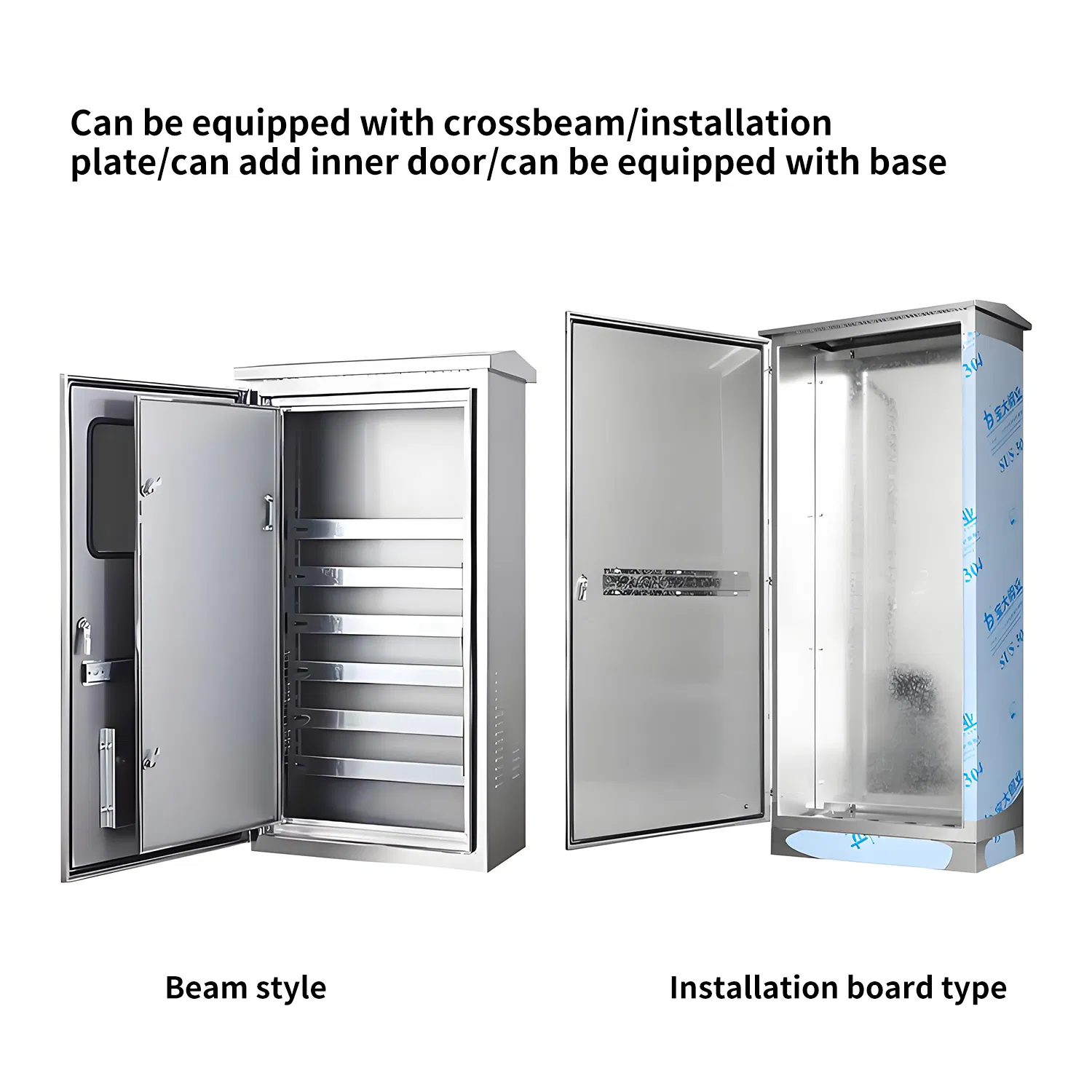

Yes, external dimensions, internal rack structures, and cooling systems can be adjusted according to specific customer requirements and application profiles.
