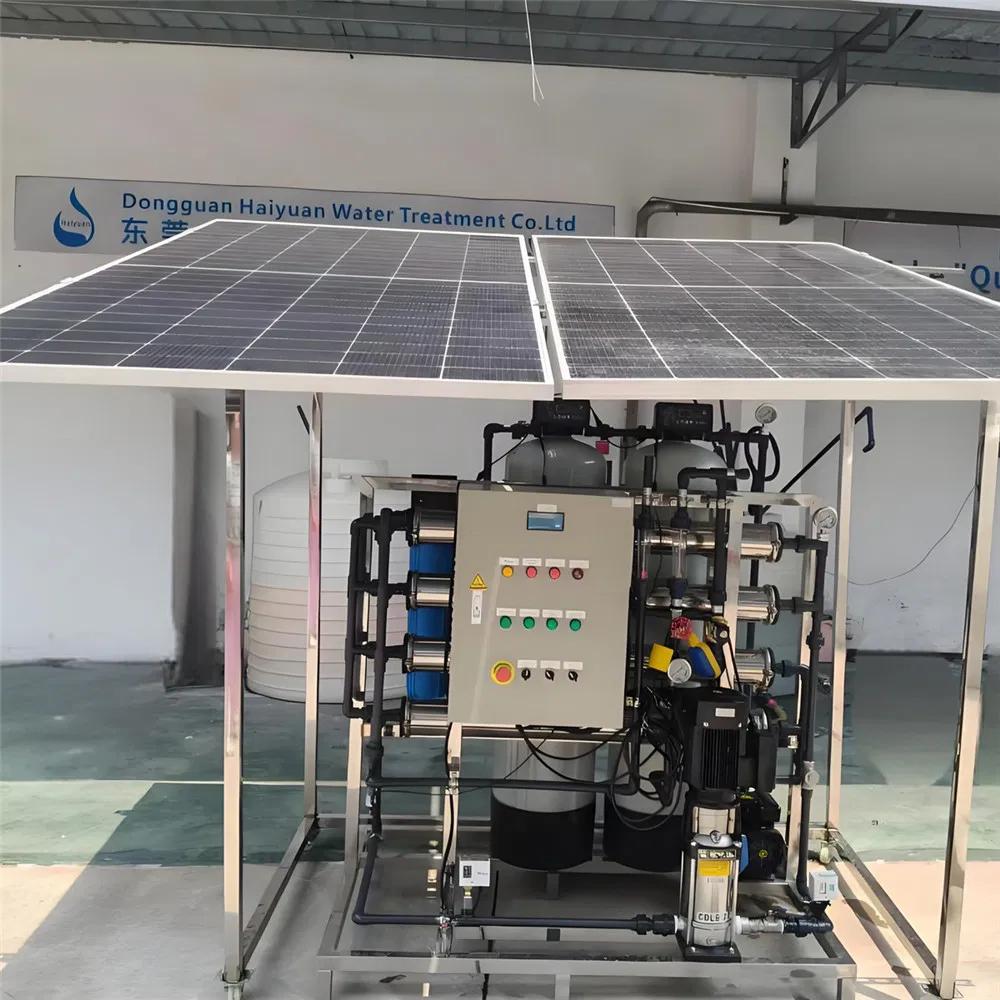

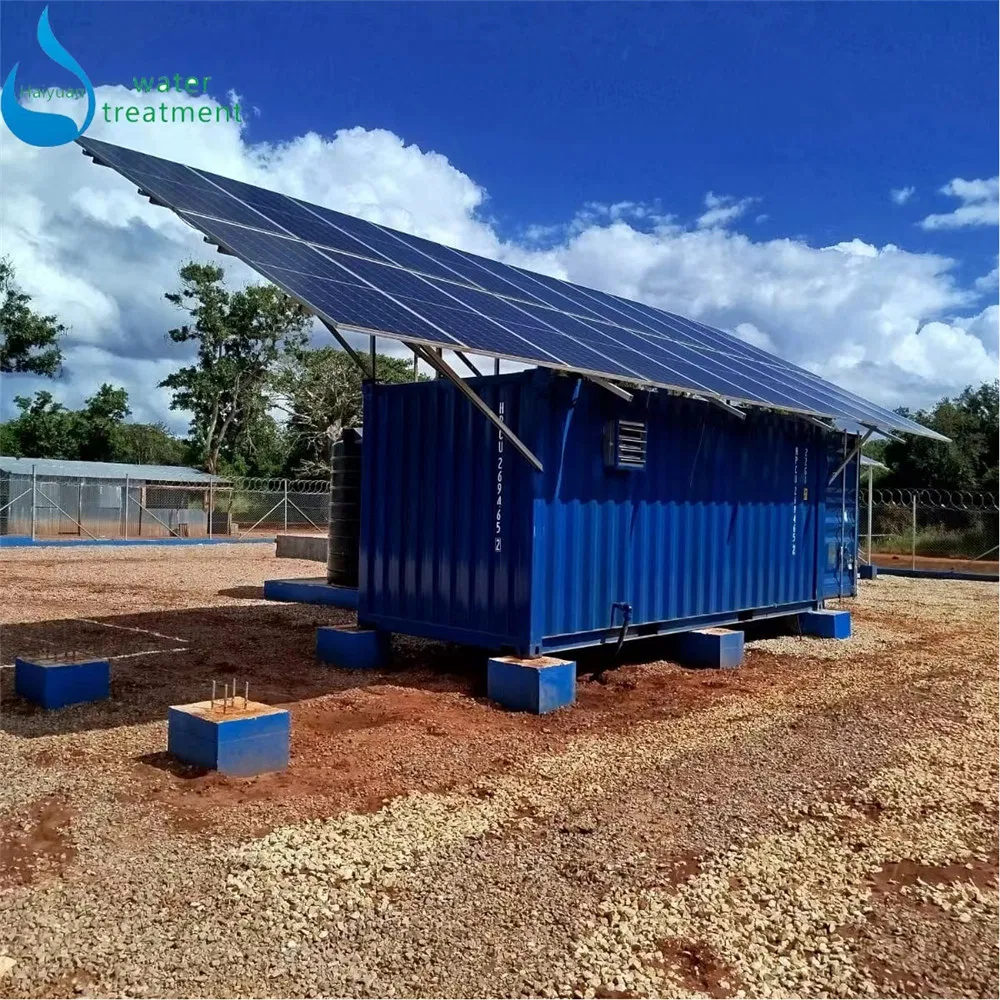

Container Mobile Brackish Well Salt Sea Water Reverse Osmosis RO Treatment Water Purification Purifier Filtration Filter System
Container Mobile Brackish Well Salt Sea Water Reverse Osmosis RO Treatment Water Purification Purifier Filtration Filter System
Container Mobile Brackish Well Salt Sea Water Reverse Osmosis RO Treatment Water Purification Purifier Filtration Filter System
Container Mobile Brackish Well Salt Sea Water Reverse Osmosis RO Treatment Water Purification Purifier Filtration Filter System
Container Mobile Brackish Well Salt Sea Water Reverse Osmosis RO Treatment Water Purification Purifier Filtration Filter System
1 / 5
Container Mobile Brackish Well Salt Sea Water Reverse Osmosis RO Treatment Water Purification Purifier Filtration Filter System
Container Mobile Brackish Well Salt Sea Water Reverse Osmosis RO Treatment Water Purification Purifier Filtration Filter System
Container Mobile Brackish Well Salt Sea Water Reverse Osmosis RO Treatment Water Purification Purifier Filtration Filter System
Container Mobile Brackish Well Salt Sea Water Reverse Osmosis RO Treatment Water Purification Purifier Filtration Filter System
Container Mobile Brackish Well Salt Sea Water Reverse Osmosis RO Treatment Water Purification Purifier Filtration Filter System

Container Mobile Brackish Well Salt Sea Water Reverse Osmosis RO Treatment Water Purification Purifier Filtration Filter System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.HYSRO 1000L
Capacity1000L/Hr
Source WaterSeawater
Incoming WaterSalt Water
Used inIrrigation / Drinking
Machine NameSolar Power RO Purifier
HS Code842121
Package Size200cm * 140cm * 180cm
🔹 Product Description

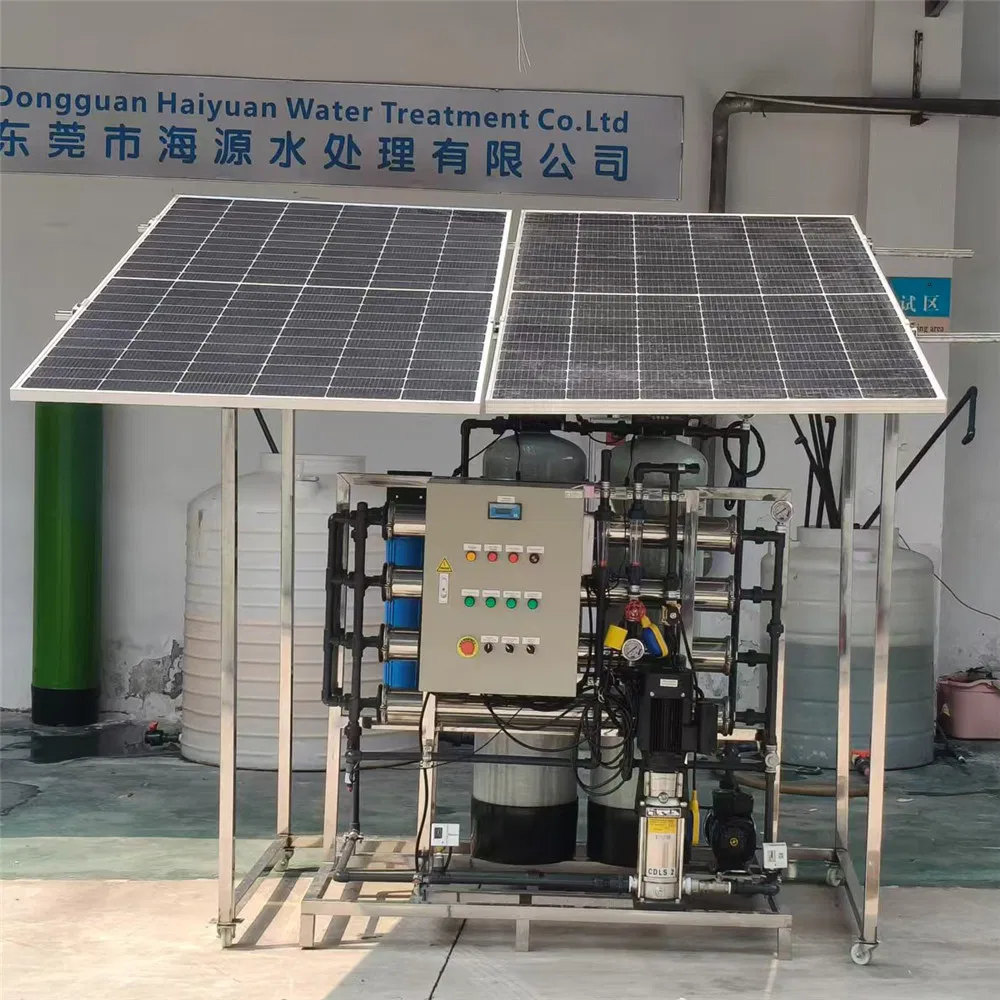

Solar Powered RO Treatment System

Solar Reverse Osmosis System 1000LPH

A solar powered reverse osmosis water system is a device that uses solar energy to remove impurities from water (such as seawater, brackish water, etc.) through reverse osmosis technology to produce fresh water.

Main Advantages:

  • Low operating cost: Free solar energy saves significant electricity costs.
  • Strong adaptability: Ideal for remote areas, islands, and disaster zones.
  • High water quality: Effectively removes inorganic salts, heavy metals, and bacteria.
  • Sustainability: Long-term stable energy supply from renewable resources.

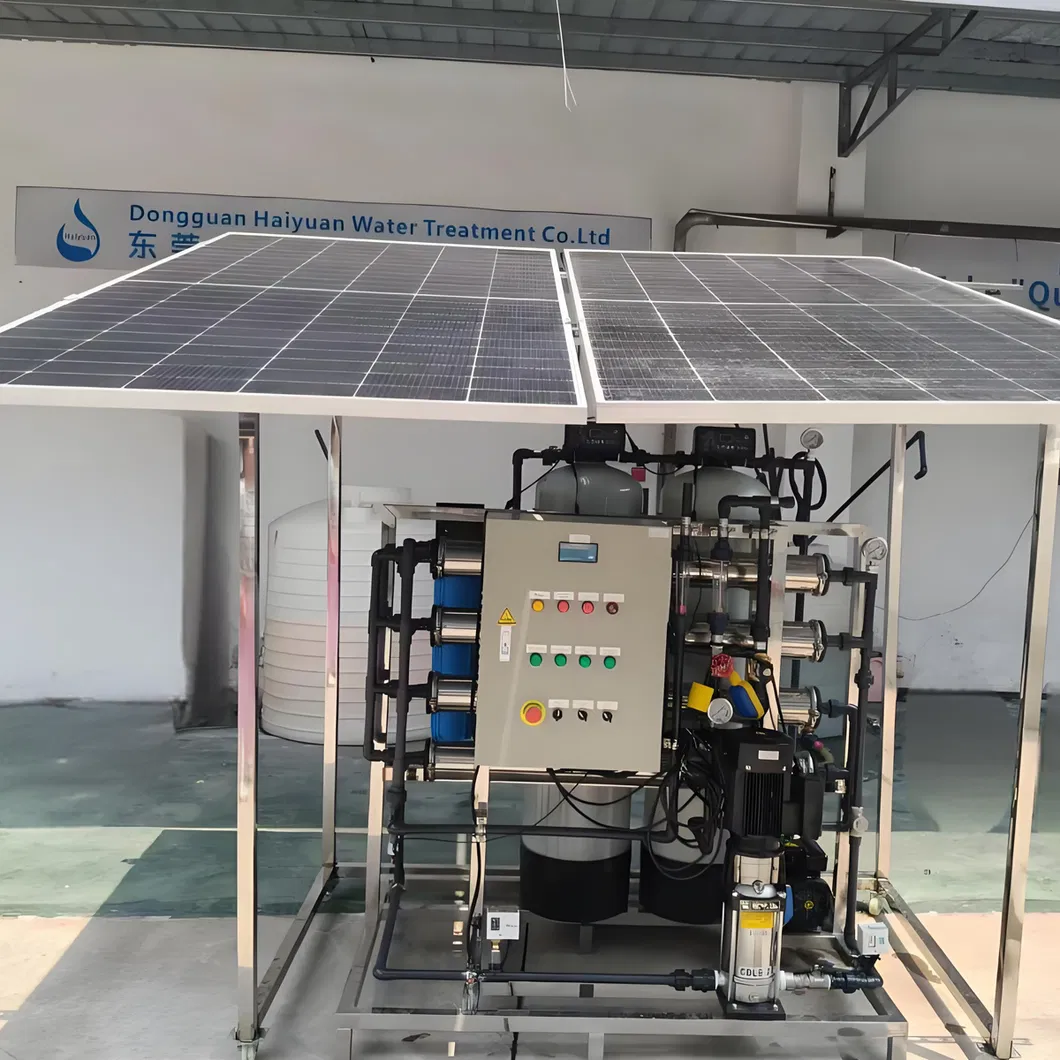

Water Purification System
⚙️ Technical Specifications (HY-1000L/hr)
Flow rate1000L/hr Recovery rate50%
Solar powered35 KW Inverter44KW
Solar panel14 PCS Battery14PCS, 36KW
Output water TDS<0.6ppm Working pressure2.9 Bar
RO membrane4PCS 4040 Temperature5-45ºC

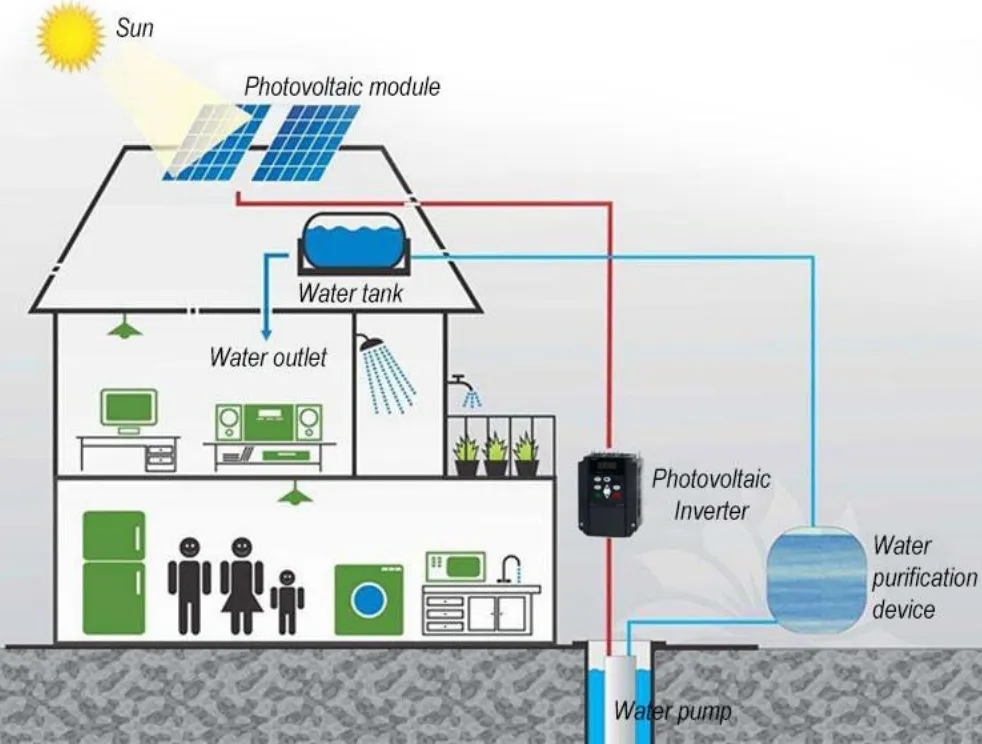

RO System View 1

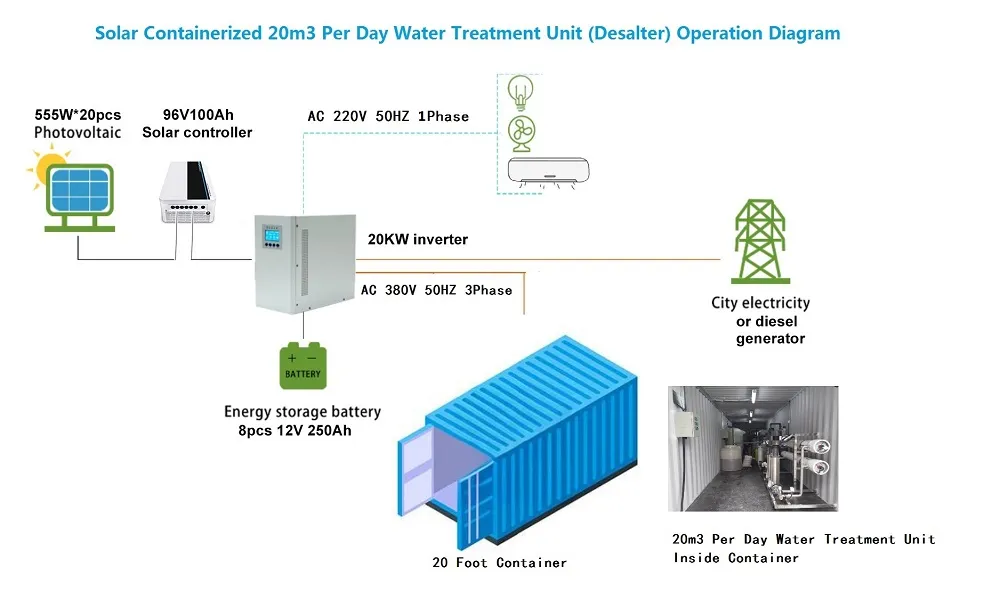

RO System View 2
🌍 Application Scenarios
  • Industrial process water
  • Agricultural irrigation
  • Remote area drinking water supply
  • Island desalination
  • Disaster relief and reconstruction

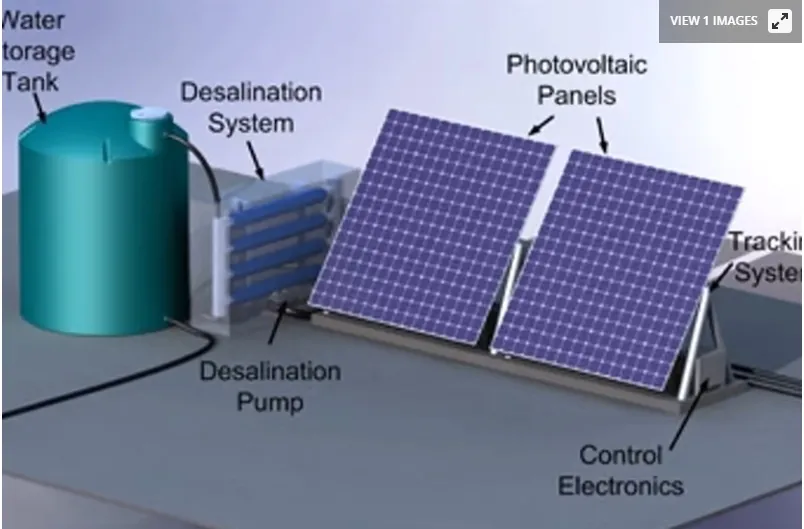

Application 1

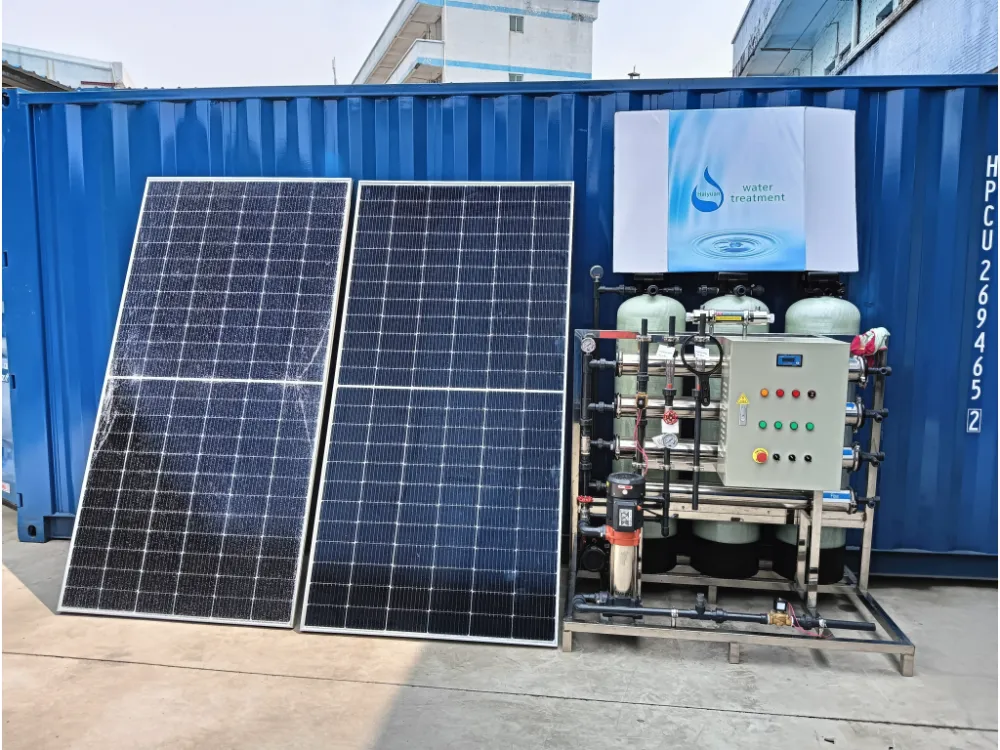

Application 2
🔄 SWRO Process Steps
Stage Component Function
Pre-treatment Quartz sand filter Remove suspended particles and large impurities.
Active Carbon Filter Remove color, chloride, and organic matter.
5/1 micron filter Remove micro colloids to protect RO membranes.
RO Main Part High pressure pump Stainless steel 316L, provides pressure for osmosis.
Ro membranes Desalination rate > 98%, removes ions.

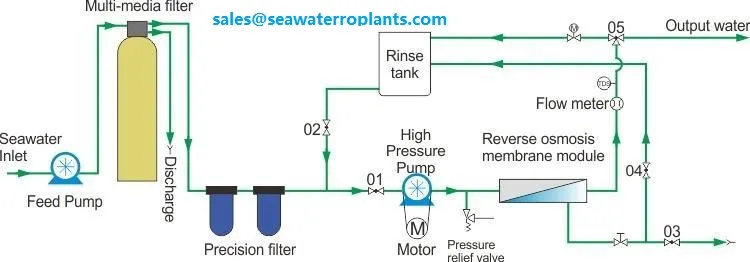

Process Flow Chart
🏭 Factory & Certification
Factory Overview
Advantages
Certificates
Exhibition
🛠️ Service and After-Sales
  • Overseas installation assistance available.
  • Direct manufacturer pricing and support.
  • OEM & ODM customization.
  • 24/7 After-sales department.
  • One-year product guarantee with remote video guidance.
❓ Frequently Asked Questions
Q1: How does the solar reverse osmosis system work?
The system uses solar panels to generate electricity, which powers high-pressure pumps. These pumps force saltwater through a semi-permeable reverse osmosis membrane, removing salts and impurities to produce clean, fresh water.
Q2: Can this system be used in areas without any power grid?
Yes, the system is specifically designed for off-grid locations. It includes solar panels and a battery storage system to ensure stable operation even in remote islands or disaster-affected areas.
Q3: What is the quality of the water produced?
The system has a desalination rate of more than 98%. It effectively removes inorganic salts, heavy metals, bacteria, and organic matter, producing water that often exceeds tap water quality standards.
Q4: What maintenance is required for the RO membranes?
The system includes a CIP (Clean-In-Place) system to wash the membranes. Regular flushing and chemical cleaning as per the manual will prolong the membrane life and prevent blocking.
Q5: Is the system easy to transport and install?

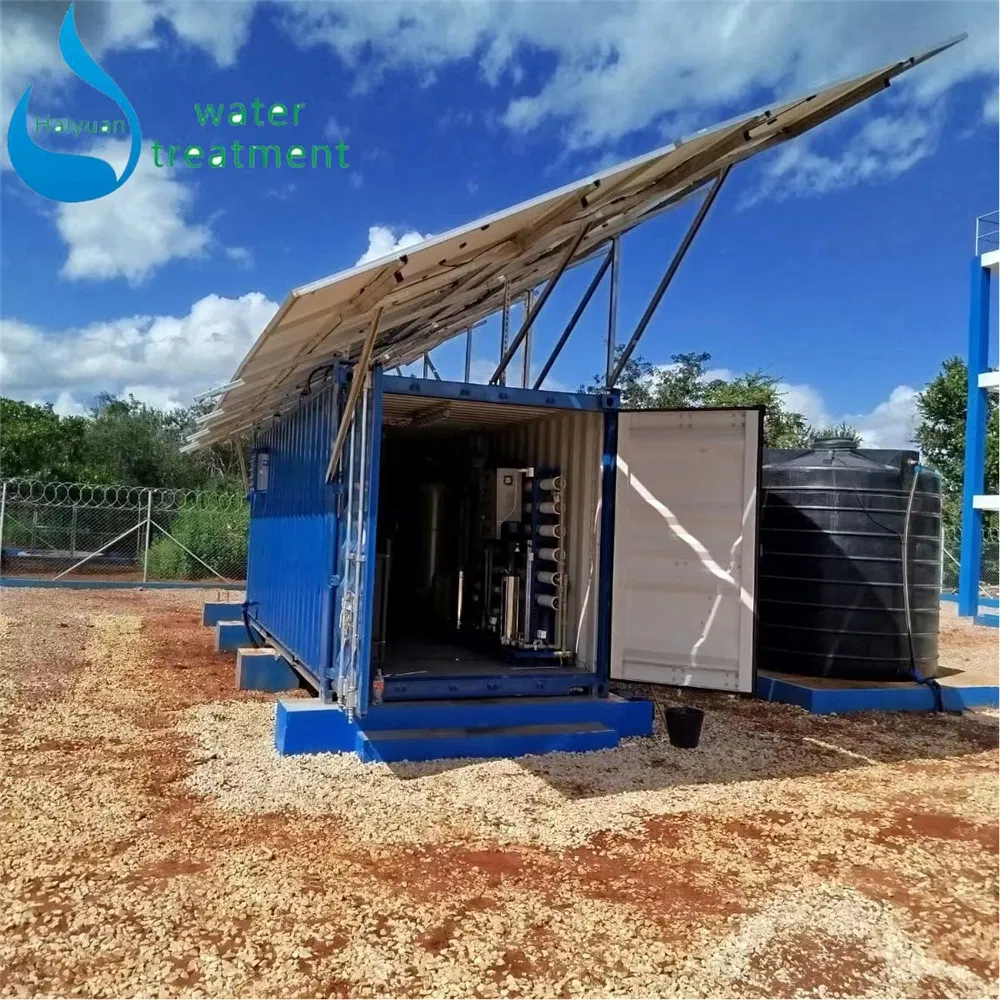

Yes, the system can be containerized (20GP or 40HGP). The frame design is built according to ISO standards, making it suitable for long-distance transport and fast plug-and-play installation on-site.
Q6: Do you provide technical support for international clients?
Absolutely. We provide professional installation instructions, remote online video guidance, and 24/7 after-sales technical support to help with any operational issues.
