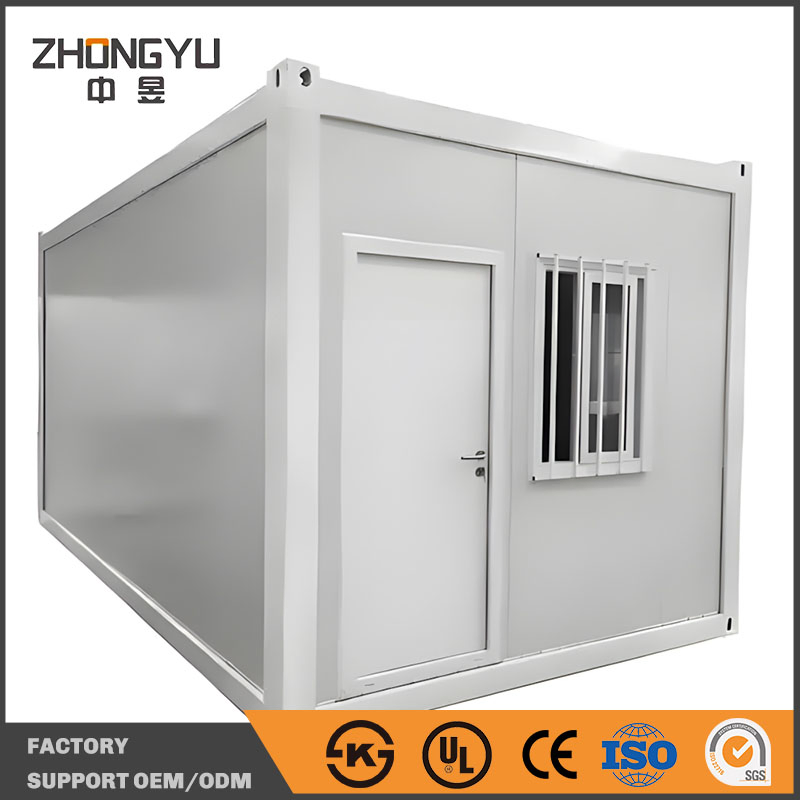

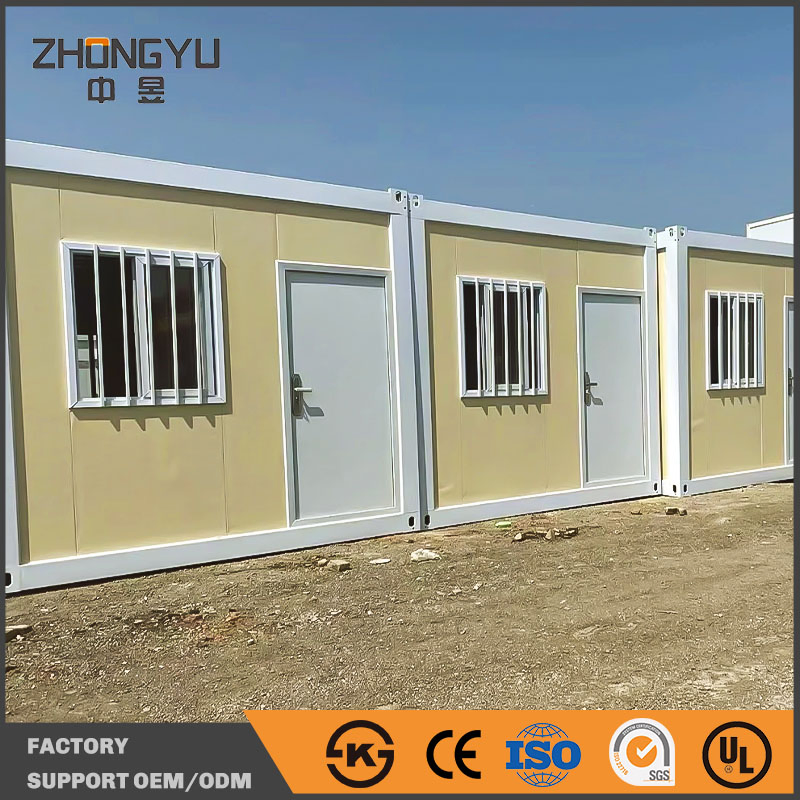

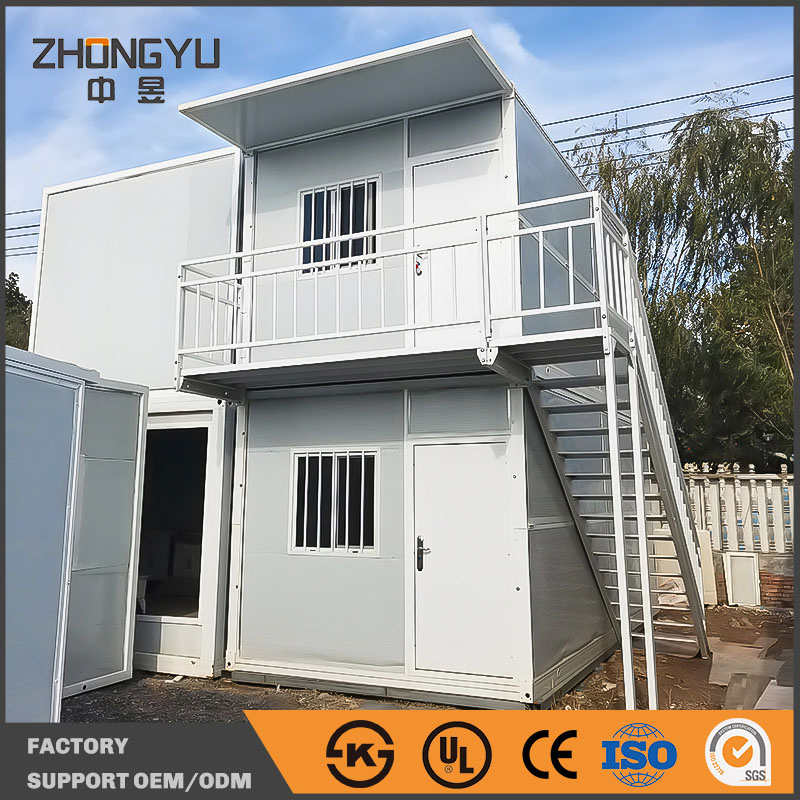

Customizable Rustic Modular Home System for Contemporary Living

Customization:	Available
After-sales Service:	Online Guidance or Send Someone on-Site
Warranty:	Online Guidance or Send Someone on-Site

Basic Information

Model

20FT Container House

Material

Galvanized Steel Structure

Life Span

15-25 Years

Wall Panel

Rock Wool or Polyurethane Sandwich Panel

Advantage

Fireproof, Waterproof, Earthquake Resistant

Installation

Fast Modular Assembly

Customization

Color, Size, Material Thickness

Application

Hotel, Villa, Apartment, Office, Camp

Key Features & Benefits

Cost-Effective – More budget-friendly than traditional construction.

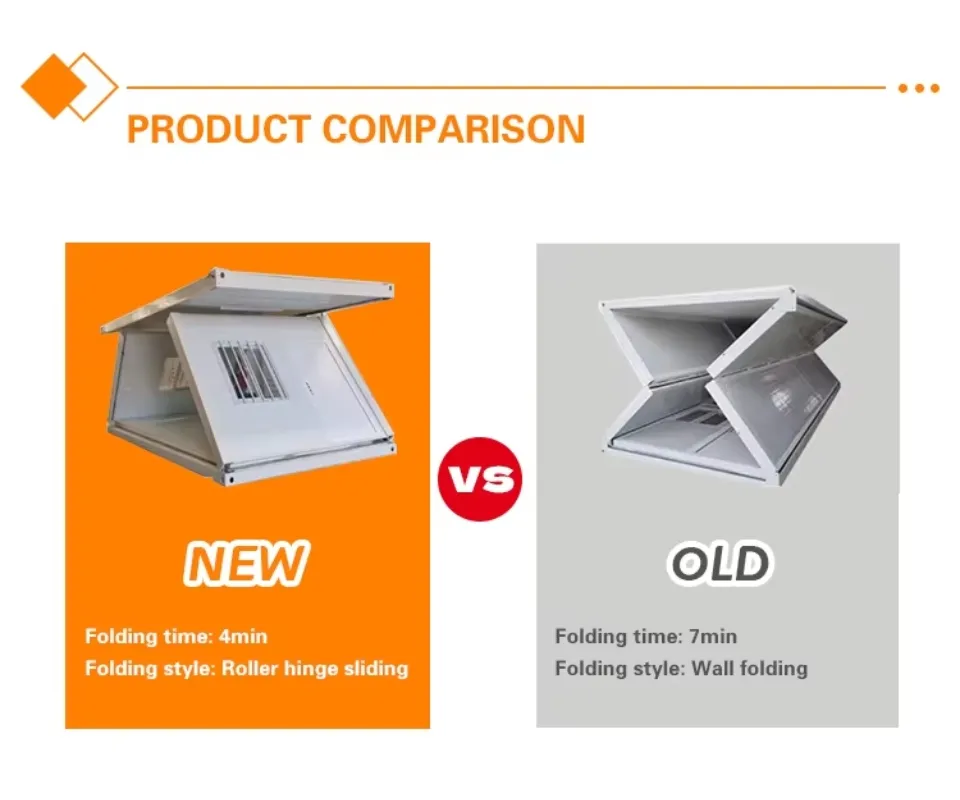

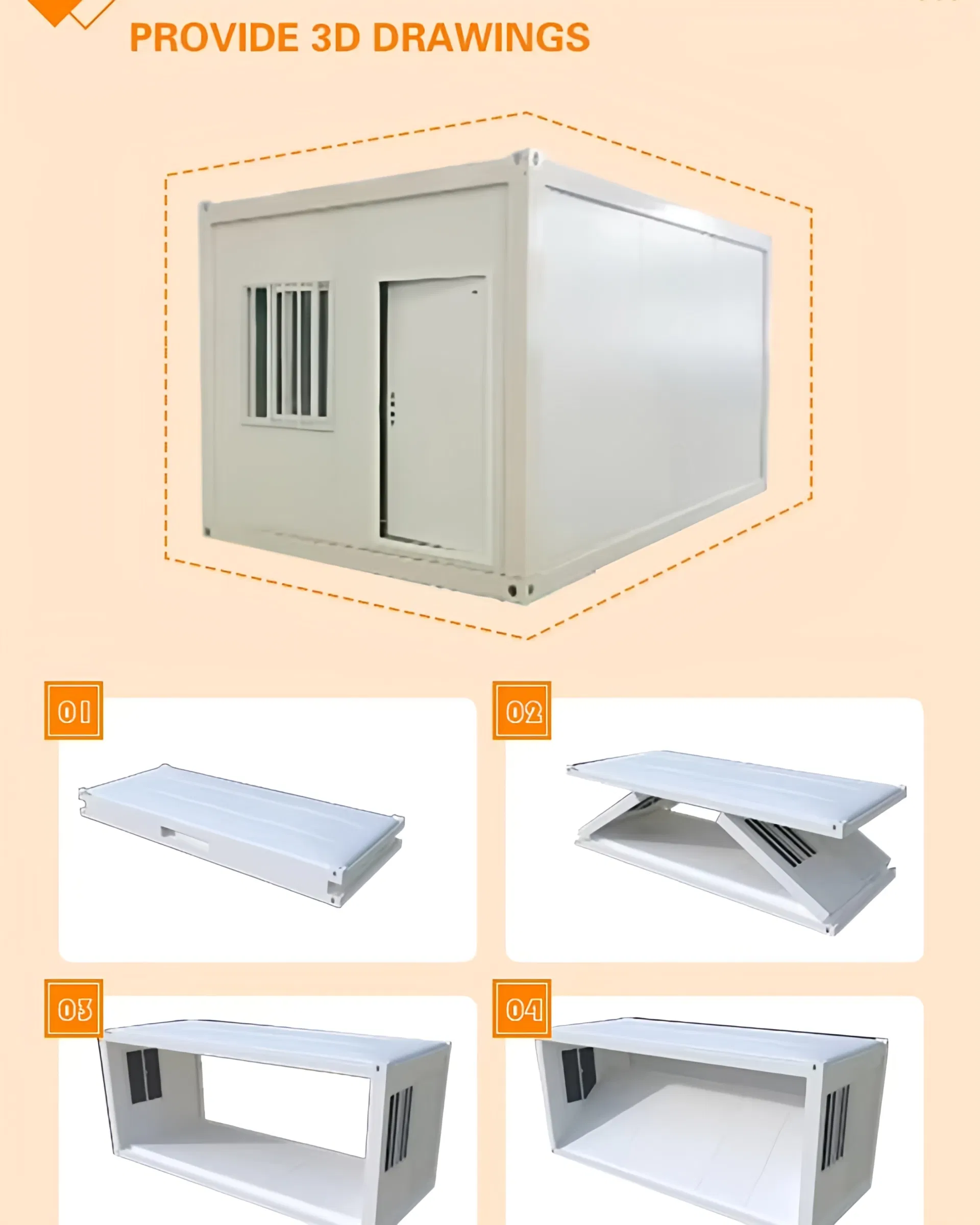

Quick Assembly – Modular design enables fast installation (4 steps in 4 minutes per unit).
Durable Construction – Galvanized steel with rust-resistant coating for 20+ years lifespan.
Noise-Reduced Comfort – High-quality soundproof doors and insulation.
Easy Relocation – Simple disassembly and reuse in new locations.
Efficient Shipping – Compact folded design fits standard containers.
Eco-Friendliness – Minimal construction waste and recyclable materials.

Material Configuration List

Category	Component	Specifications
Dimensions	External	585024382540mm
Dimensions	Internal	569022782220mm
Structure	Main Profiles	Main beam 2.2mm thickness, height 180mm; secondary beam C80*40.
	Corner Post	Thickness 2.2mm, 210x150x2526mm.
	Connection	M12x40 high strength bolts.
Wallboard	Insulation	50mm Rock wool core, double-sided color steel (0.35mm).
Roofing	Waterproof	0.4mm galvanized color steel plate; 50mm glass wool insulation.
Floor	Base	18mm cement fiber board + 1.6mm floor leather.
Doors & Windows	Steel/PVC	Steel entrance door (W840mm H2035mm); Plastic steel single glass windows.

Transportation Advantage

Our innovative design outperforms industry standards. While most manufacturers can only load 6 sets per container, our advanced engineering allows us to fit 10 sets in the same space—a 67% increase in loading efficiency, significantly reducing transportation costs.

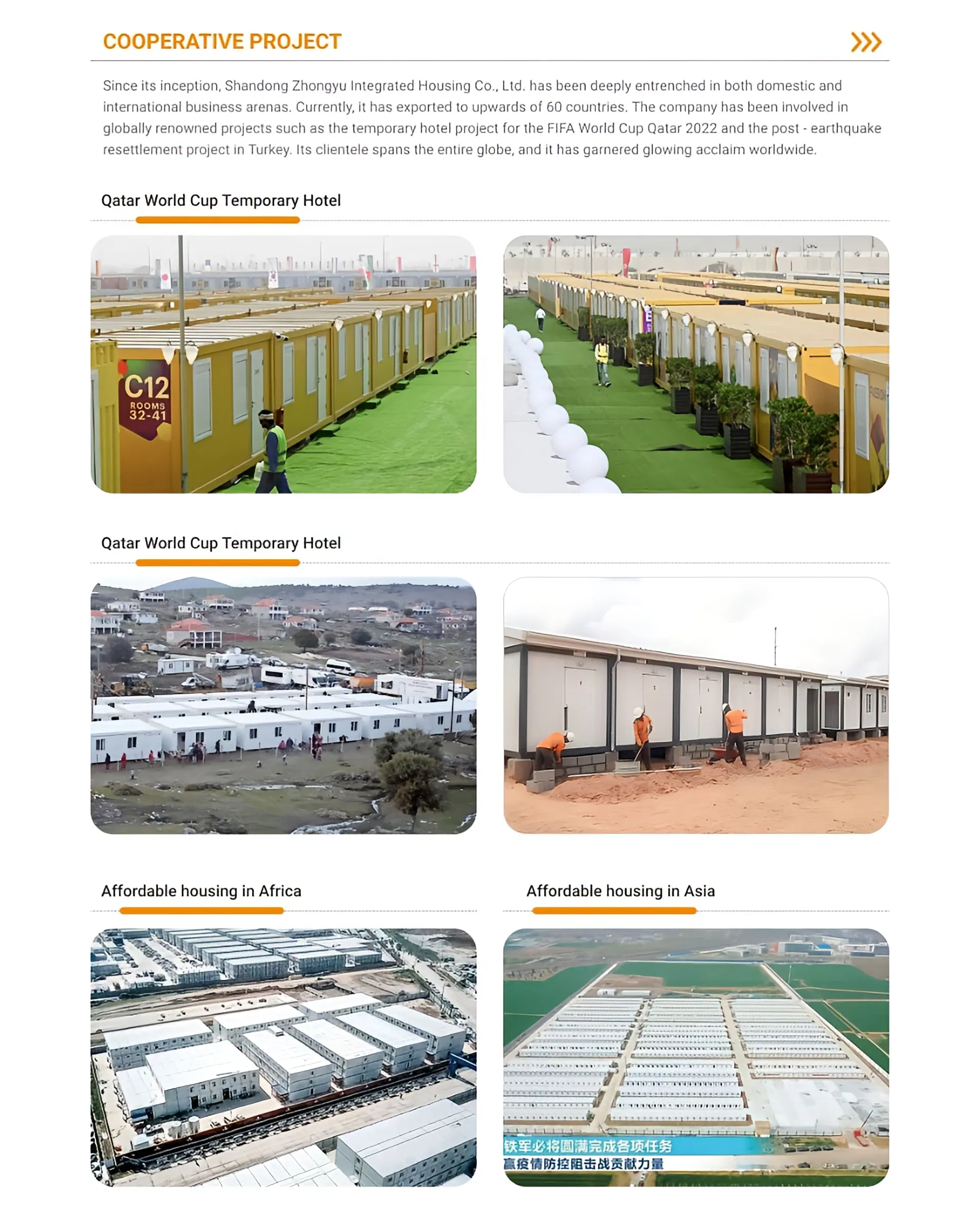

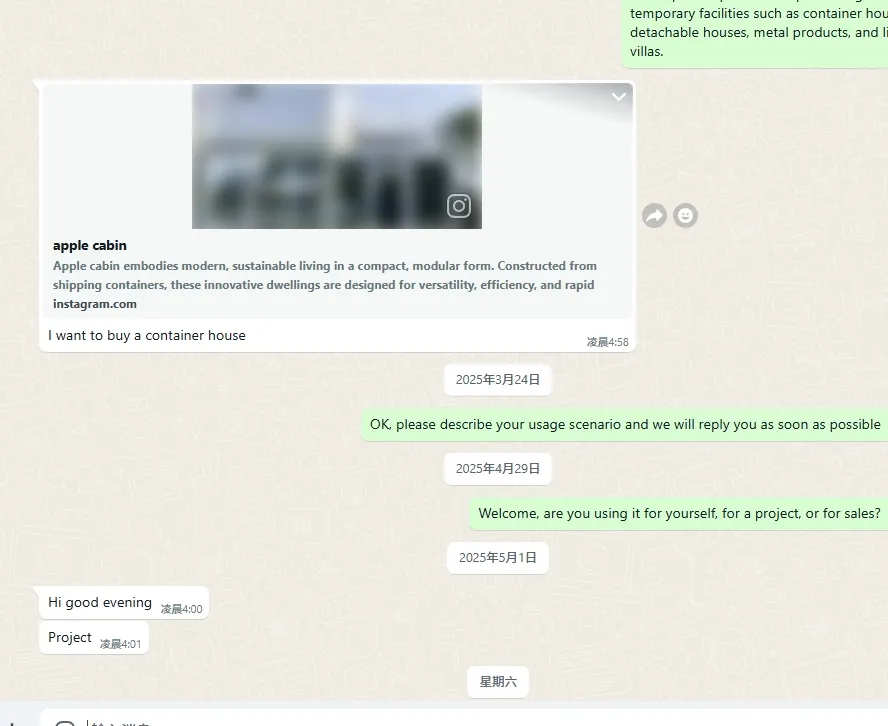

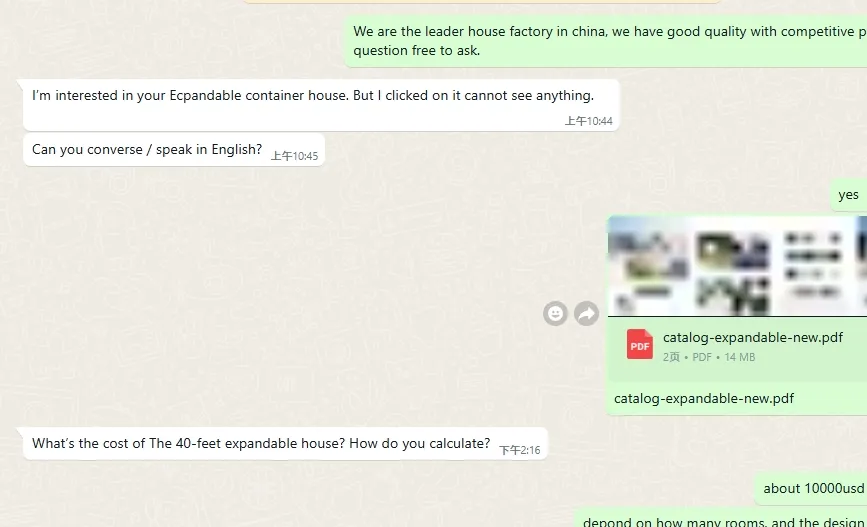

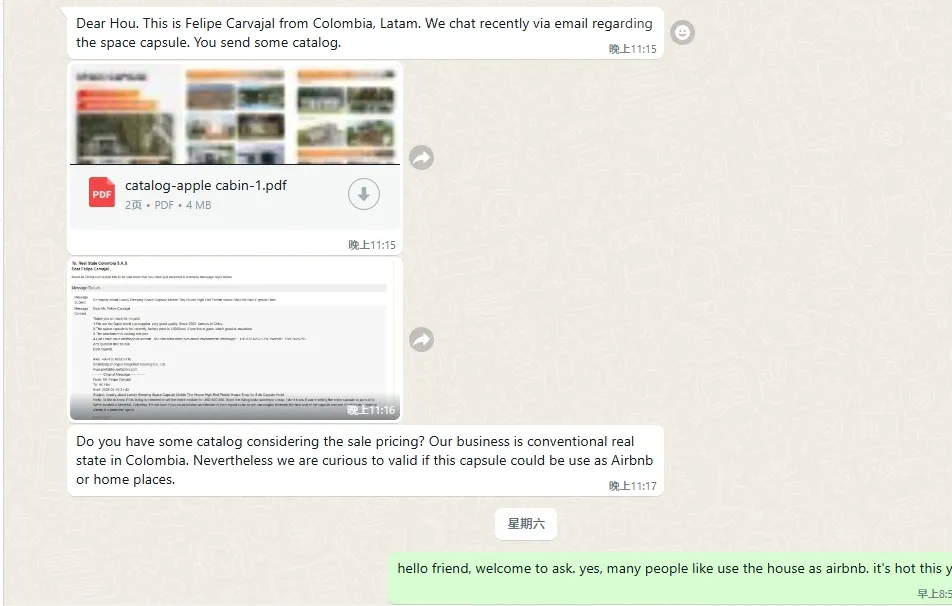

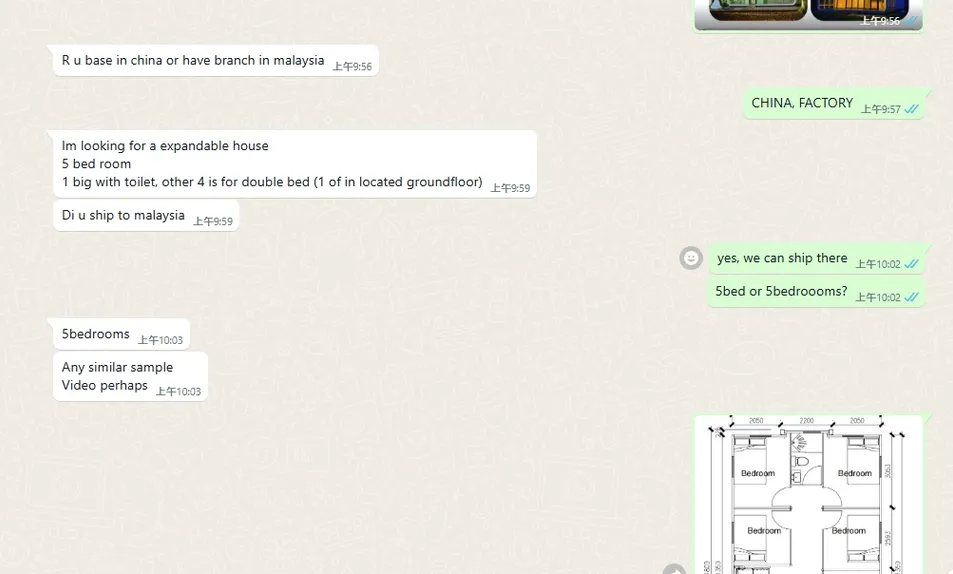

Project Cases & Customer Feedback

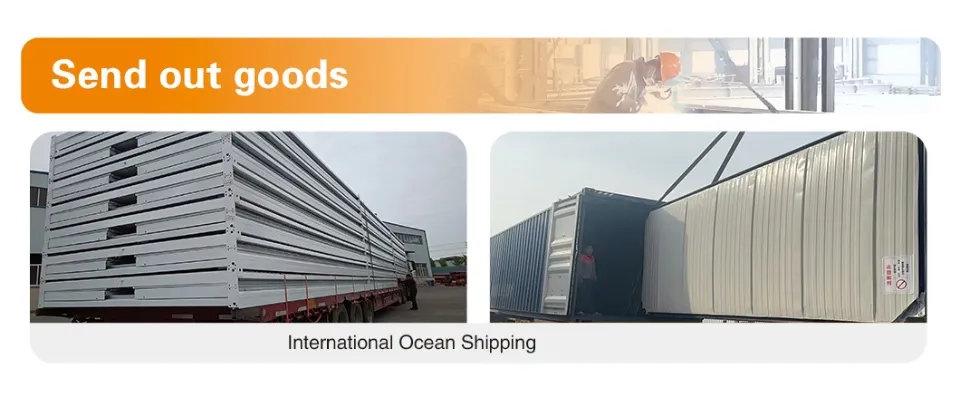

Packing & Delivery

Professional loading ensures at least 10 sets per sea container.

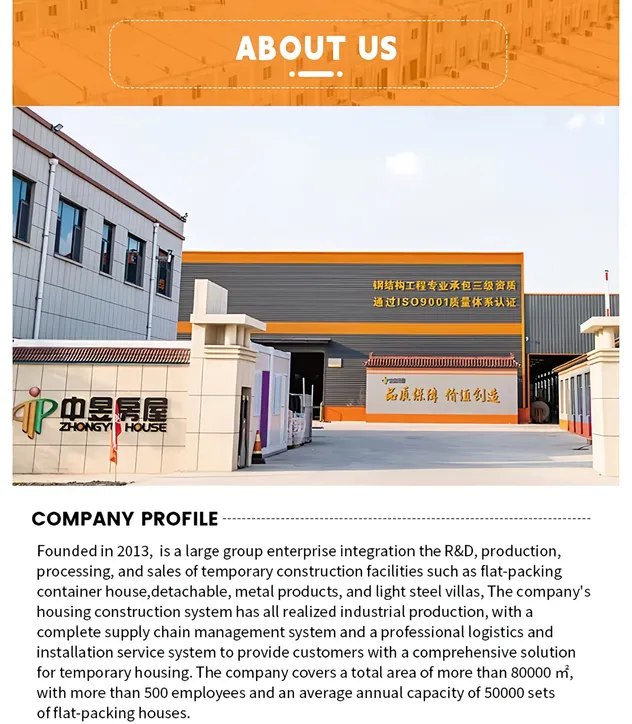

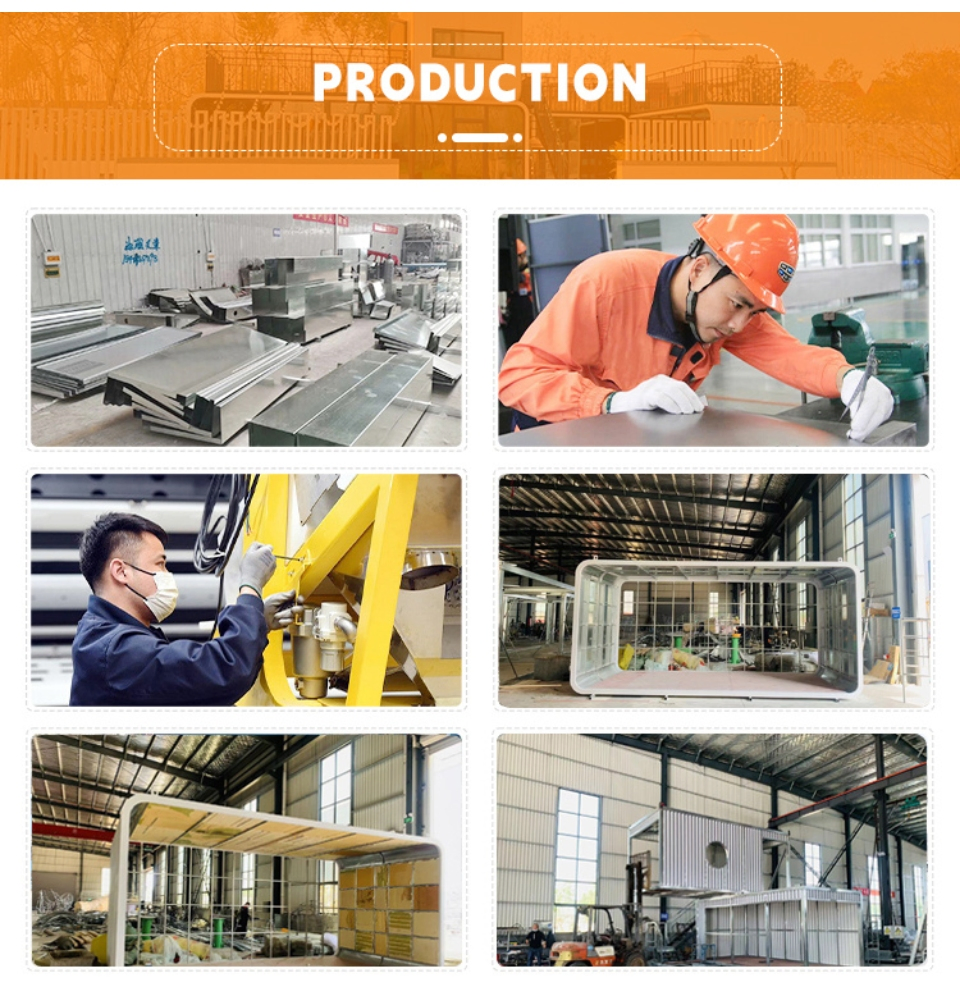

Manufacturing Facility

Our group features four large production bases specialized in temporary construction facilities, steel structures, and light steel villas. With a complete supply chain management system and a professional logistics team, we provide a comprehensive one-stop solution for modular housing. Our facility covers over 100,000 sqm with an annual capacity of 50,000 units.

Frequently Asked Questions

Could you design a new and unique prefab house for me?

Absolutely! We provide not only construction schemes but also integrated landscape design. One-stop service is our primary advantage.

What should I provide to build a prefab house?

A sketch drawing is helpful, but not required. Simply notify us of your requirements, such as area, usage, and number of stories, and we will create a design for you.

How long does it take to build a light steel prefab house?

It depends on the size. Generally, for a 50 square meter house, five workers can finish the installation in 1-3 days, saving significant labor and time.

Is it difficult to build a prefab house independently?

Not at all. You can build the house independently according to the construction drawings provided, as long as you know how to use basic electric tools.

Is the prefab house stable and safe?

Yes, you are completely safe. These houses are designed to withstand hurricanes of up to 200km/h and 9-grade earthquakes.

What are the advantages compared to traditional buildings?

Prefab houses offer better sound and heat insulation, superior fireproofing and anti-seismic properties, wind resistance, and are significantly more time and labor-saving.
