Basic Specifications
Model NO.:F-PANEL
Certification:ISO9001, TUV, SGS
Application:Wall, Floor, Roof and Prefab Building
Advantage:Waterproof, Fireproof, Eco-Friendly
Anti-Earthquake:8-13 Grade
Compressive Strength:3.5MPa
Anti-Wind:13 Degree
Hanging Force:1000N
Partition Wall:75/90/100mm
Exterior Wall:120/150mm
Installation Speed:30m2/day
Production Capacity:100,000 Sqm Per Month
🏗️
Product Description
The partition wall is solid, lightweight, and thin, offering superior strength, impact resistance, and strong hanging capacity. It provides excellent heat and sound insulation, is fireproof and waterproof, and allows for easy cutting to increase available space. It supports arbitrary slotting, dry operation, and environmental protection, achieving high energy efficiency. This technology reduces the total area occupied by walls, raises residential practical area, alleviates structural load, and improves building aseismatic safety while reducing total costs.
🧩
Component & Characteristics

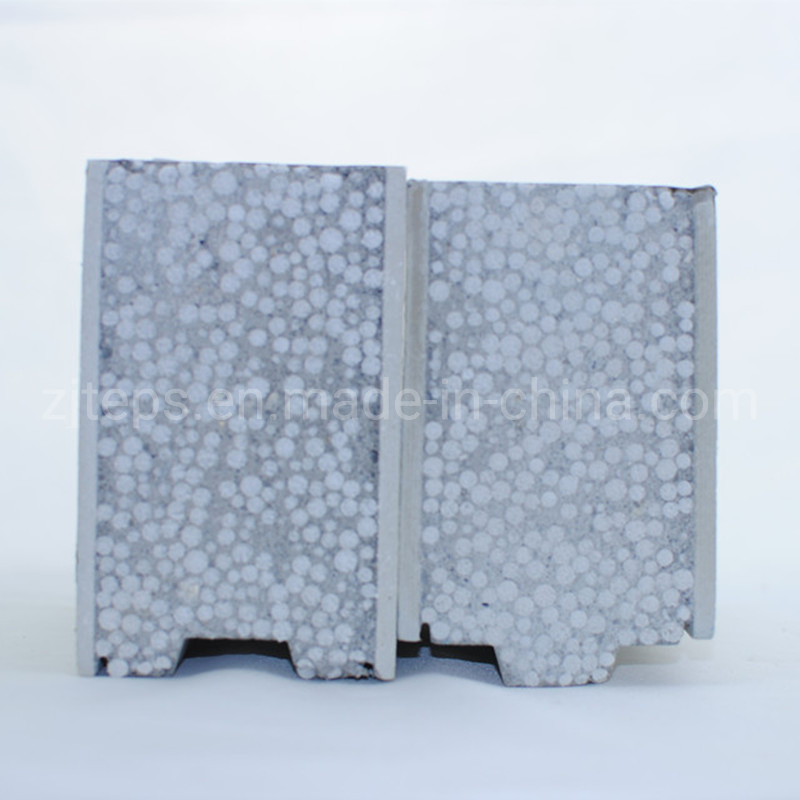

Made from 100% non-asbestos calcium silicate boards with a core of sand, foam particles, lightweight Portland cement, and specialized additives.
Moisture-proof
Energy saving
Thermal insulation
Fire-resistance
Sound insulation
Shock resistance
High Bending strength
Light Weight EPS
🏠

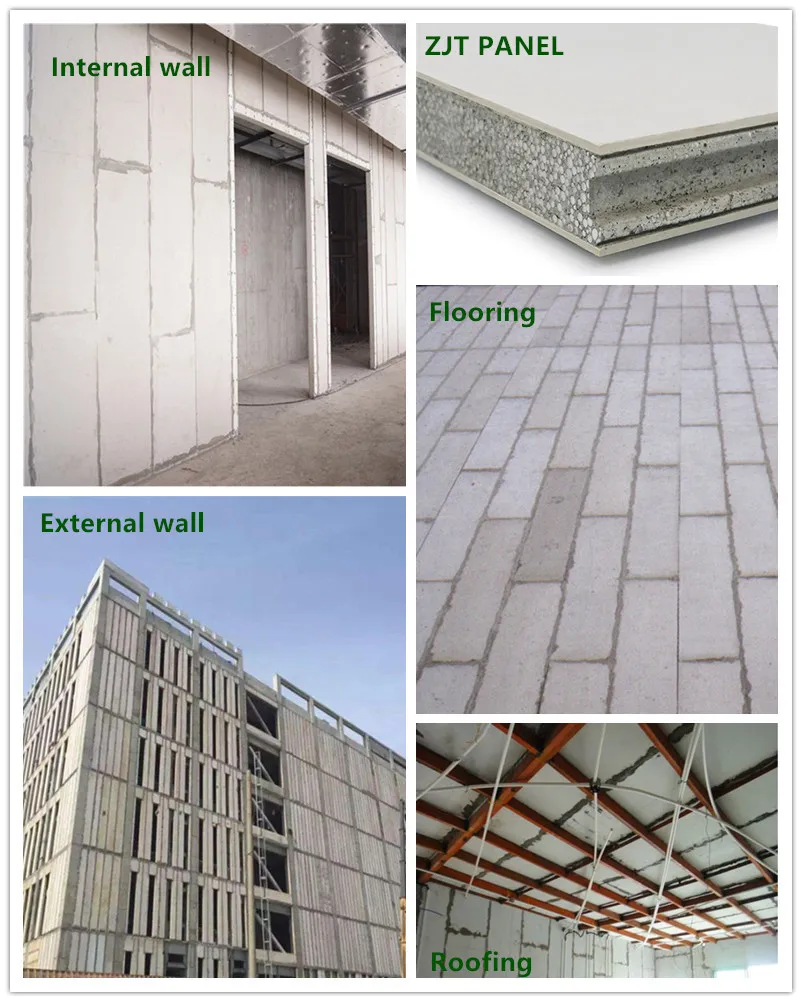

Application & Installation
Suitable for interior partitions (50mm-125mm) and exterior walls (125mm-150mm) in modern high-rise buildings, ecological residences, and various house structures.
1. Paying-off and Sizing
Use laser alignment to eject double lines for panel thickness. Apply special adhesive into the bump slots and baseline.
2. Installation and Fixation
Erect the panel, adjust to fit the baseline, and tighten to push extra mortar out. Fix with wooden wedges and steel bars for verticality.
3. Grouting and Wiring
Fill joint cracks after one day. Use electric saws for switch box slotting or concealed wiring as needed.
4. Decoration
No extra plaster needed. Decorate directly with tiles, wallpaper, or painting.
💰
Trade Terms
Payment:T/T or L/C at sight
Lead Time:7-20 Working days
Sample:Free Available
Export Markets:Global
❓
Frequently Asked Questions
Q1: What are the main advantages of using these partition walls?
A: They are lightweight, fireproof, waterproof, and provide excellent sound insulation while being eco-friendly and easy to install.
Q2: Can these panels be used for exterior wall construction?
A: Yes, panels with thicknesses of 120mm or 150mm are specifically designed for exterior wall applications.
Q3: How strong is the hanging force of the panel?
A: The panels have a single-point hanging force of 1000N, making them strong enough for various fixtures.
Q4: What is the fire resistance capability?
A: The panels are made from incombustible materials and offer high fire-resistance performance suitable for high-rise buildings.
Q5: Is the installation process fast?
A: Yes, the installation speed is approximately 30m2 per day, which is significantly faster than traditional brick wall construction.
Q6: Do the panels contain asbestos?
A: No, the panels are made with 100% non-asbestos calcium silicate boards, ensuring they are safe and eco-friendly.
