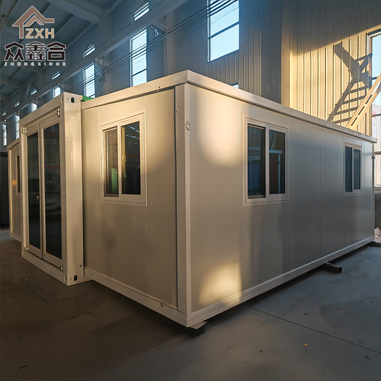

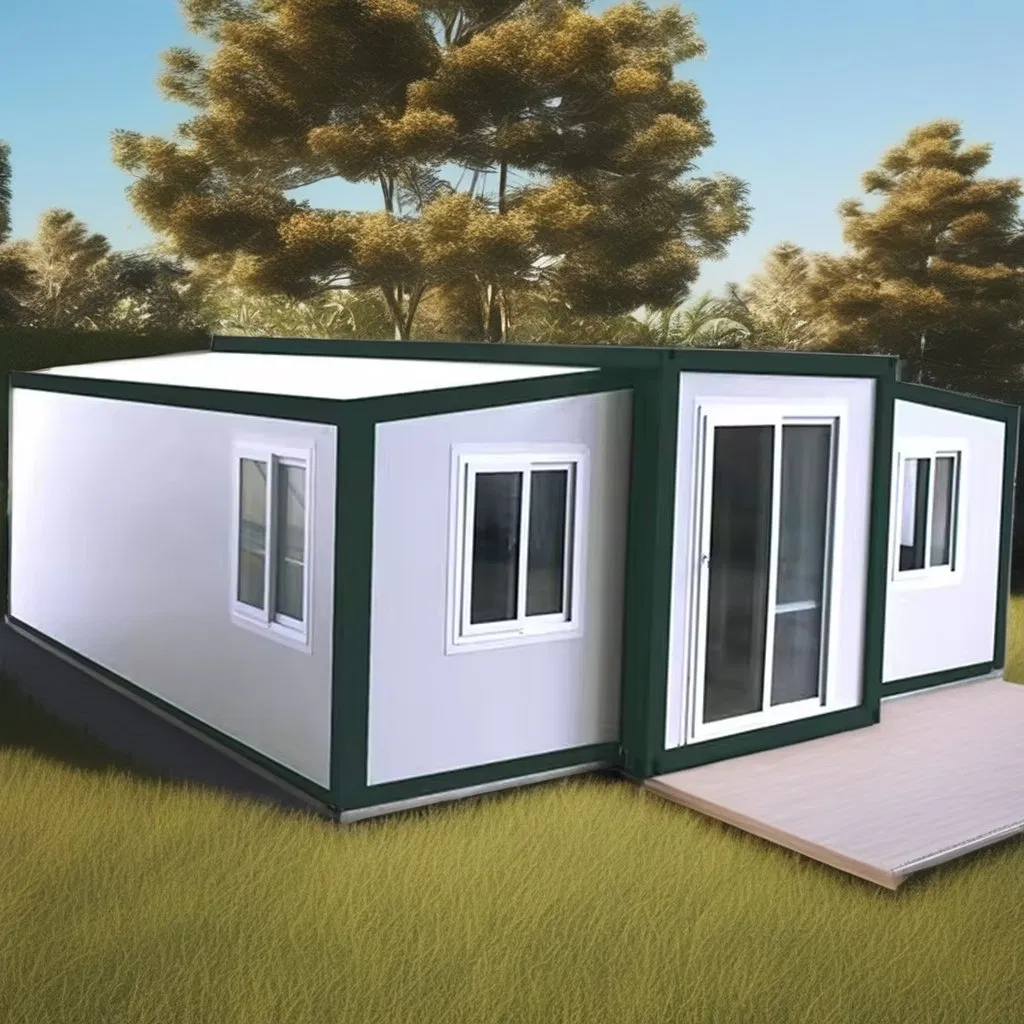

40FT Expandable 3-Bedroom Prefab Container Cabin for Home Use

1 / 5

40FT Expandable 3-Bedroom Prefab Container Cabin for Home Use

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

ZXH

Installation

Fast Installation

Material

Sandwich Panel

Wall Thickness

50#/65

Warranty

1 Year

Certification

ISO, CE

Transport

40hq Hold 2 Units

Specification

5900*6200*2480mm

Capacity

500,000 PCS/Month

Key Features: Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Safe, Thermal Insulation, Waterproof.

Technical Parameters

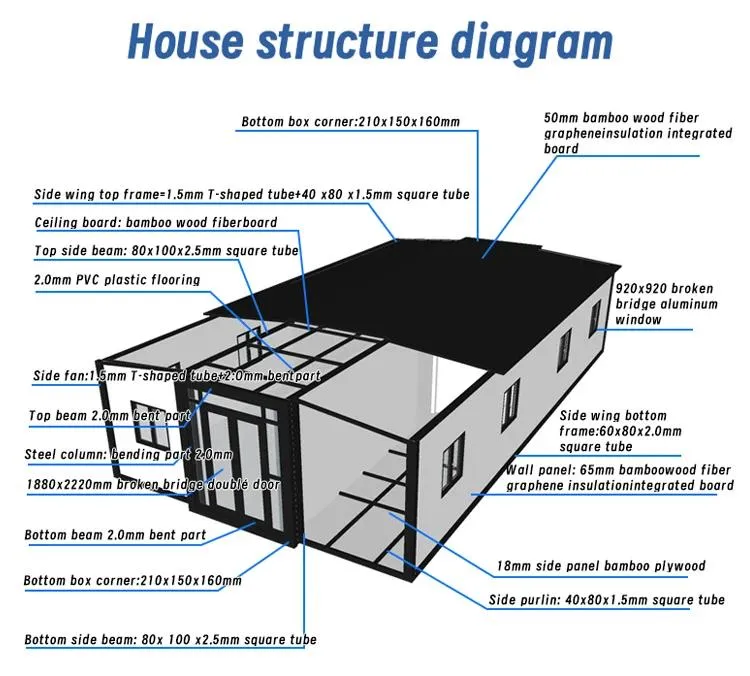

Category	Component	Material / Description
Framework	Main Beam	Galvanized square tube 801002.5MM Q235
	Integrated Column	Galvanized folding piece 1502102.0MM Q235
	Sub-frame	Galvanized square tube 40601.0MM Q235
	Hinges	Galvanized thickened hinge Q235
Floor	Floor Board	18mm glass magnesium board (asbestos-free)
Floor	Finish	Floor leather Palm wood
Insulated Wall	Wall Panel	70mm sandwich board, wood grain color, EPS core
Insulated Wall	Partition	50mm sandwich panel
Electrical	System	Australian standard wires, LED ceiling lights, Circuit breaker system
Windows/Doors	Doors	Aluminum thermally-insulated double-glazed glass (W1890*H2230)

Key Design Philosophy

★ 1. Commercial Exhibition

The double-wing expandable house serves as an innovative exhibition space for product launches and events, attracting attention and adding brilliance to commercial activities.

★ 2. Cost & Efficiency Advantages

Easy Transportation: Standardized flat-base structure fits container transport tools, reducing logistics costs. Fast Construction: Factory prefabrication allows quick on-site assembly.

★ 3. Eco-friendly Materials

Crafted from recyclable steel and environmentally sustainable panels, aligning with green living pursuits and offering excellent durability.

★ 4. Flexible Expansion

Modular assembly with simplified interfaces for horizontal or vertical expansion, ideal for residences, shops, and emergency facilities.

Frequently Asked Questions

Q1: What are the primary dimensions of the expandable container house?

A1: The standard specification is 5900*6200*2480mm, designed for 40FT expandable use.

Q2: How is the house transported efficiently?

A2: A single 40HQ shipping container can hold 2 units of these expandable houses, significantly reducing shipping costs.

Q3: What materials are used for thermal insulation?

A3: We use 70mm and 50mm sandwich panels with EPS insulation and double-glazed tempered glass for doors and windows.

Q4: Is the electrical system safe for international use?

A4: Yes, the system includes Australian standard wiring (or customized per country) and a full circuit breaker system for safety.

Q5: Is the container house resistant to natural elements?

A5: Yes, the structure is designed to be earthquake resistant, waterproof, moisture proof, and leak proof.

Q6: Can the layout be customized?

A6: Yes, the modular design allows for customized configurations according to specific customer requirements.
