Light Weight Non-Load Bearing Partition Wall for Building

1 / 5

Light Weight Non-Load Bearing Partition Wall for Building

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Certification:ISO9001

Customized:Customized

Application:Wall, Floor, Roof and Prefab Building etc.

Advantage:Waterproof, Fireproof and Eco-Friendly etc

Anti-Earthquake:8-13 Grade

Use Life:>45dB

Compressive Strength:3.5MPa

Anti-Wind:13 Degree

Hanging Force:1000n

Sample Available:Yes

Certificate:TUV, SGS

Export Markets:Global

CIF:Available

Sample:Free

Partition Wall:75/90/100mm

Exterior Wall:120/150mm

Installation Speed:30m2

Transport Package:Pallet+Pearl Wool+Corner Paper+Belt+Plast

Specification:60/75/90/100/120/150mm

Trademark:ZJT

Origin:Fujian, China

HS Code:6810919000

Production Capacity:100000 Sqm Per Month

Product Description

Light Weight Non-load Bearing Partition Wall for Building

ZJT partition wall is well suited for urban areas with high rise buildings and those with high temperature variations. Due to lower density, high rise buildings constructed using eps cement sandwich panel require less steel and concrete for structure members.

Product Information

Product name	Light Weight Non-load Bearing Partition Wall for Lease Out Room
Material	Calcium silicate board as upper and bottom surface board; Cement, fly ash, expanded polystyrene (eps), additive as core material

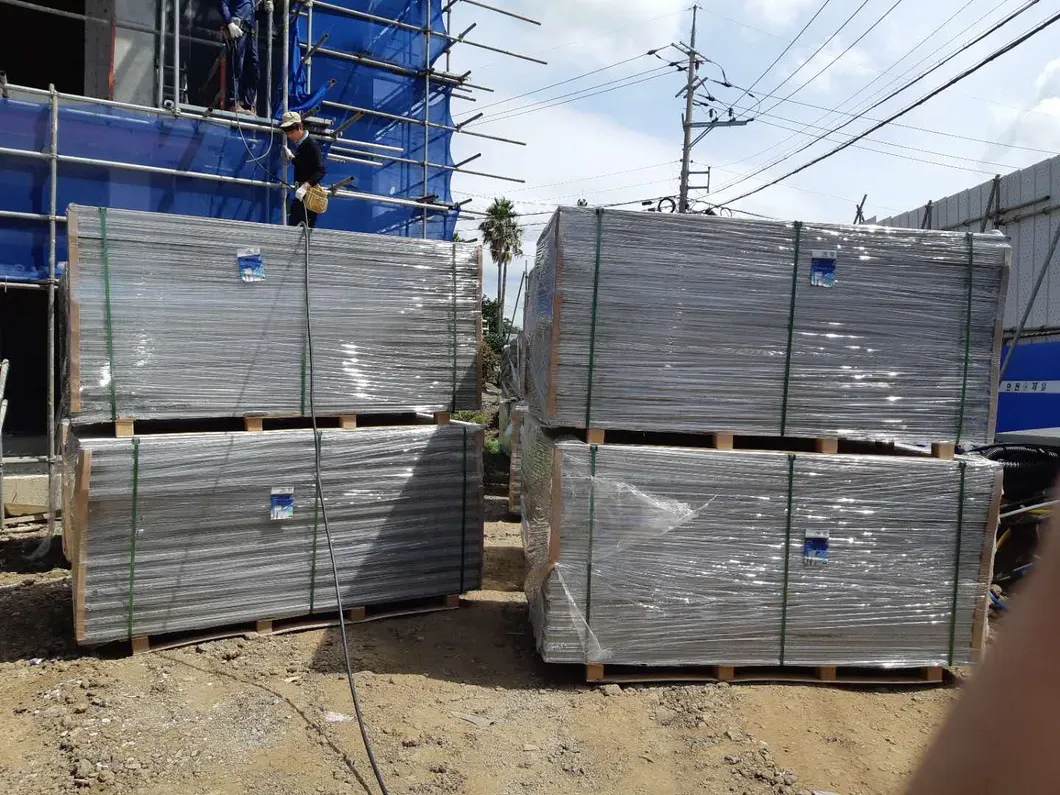

Packaging & Shipping	Packed with plastic film, protected by belt and place in pallet
MOQ	One 20' GP
Lead Time	10-20 days after payment confirmed
Price	$11-16/m2
Payment terms	T/T 30% deposit before production, T/T balance after receiving scan of documents; L/C at sight
Slotted and wiring	Available, easy slotted and wiring
Fireproof	Yes, use A great fireproof eps grain, more than 3hours for 100mm panel
Waterproof	Yes, use calcium silicate board as surface panel with waterproof function
Soundproof	Yes, more than 42dB sound transmission loss ability for 100mm panel
Lightweight	Yes, only 66kg/m2 for 100mm panel, optimize structure, increase construction speed

Advantages of ZJT Partition Wall

1Columns are inside the sandwich panel making it more beautiful and reality.

2Lower price and much shorter installation time compared with earth building.

3Fire rate partition: 4 hours (reach to A level).

4Sound insulation: 38-46db.

5Thermal Conductivity: 0.221w/mk.

6Anti-earthquake: 8 grade (depend on steel structure).

7Using life is around 40-70 years. Environmental protection and economy.

8Fast installation: Each worker can assemble 30~40 square meters every day.

9High Loading: 250-650 sqm per 40 feet shipping container.

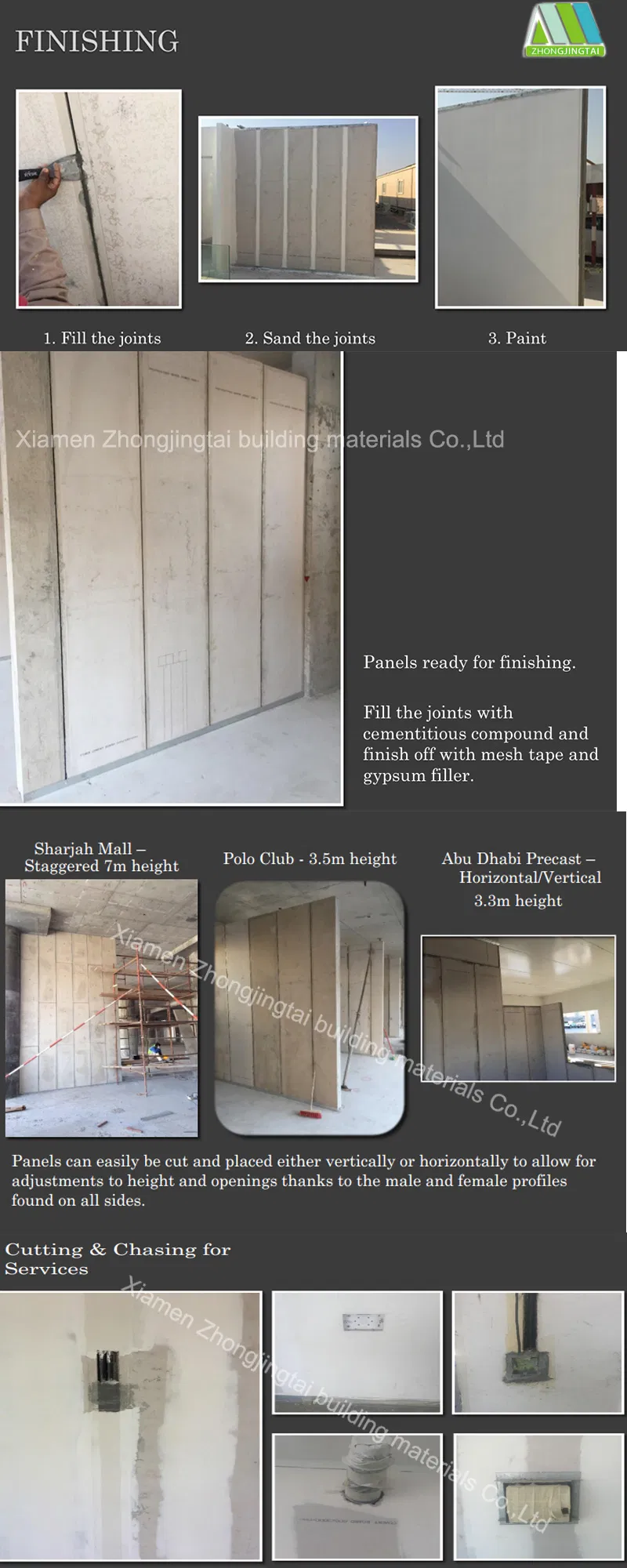

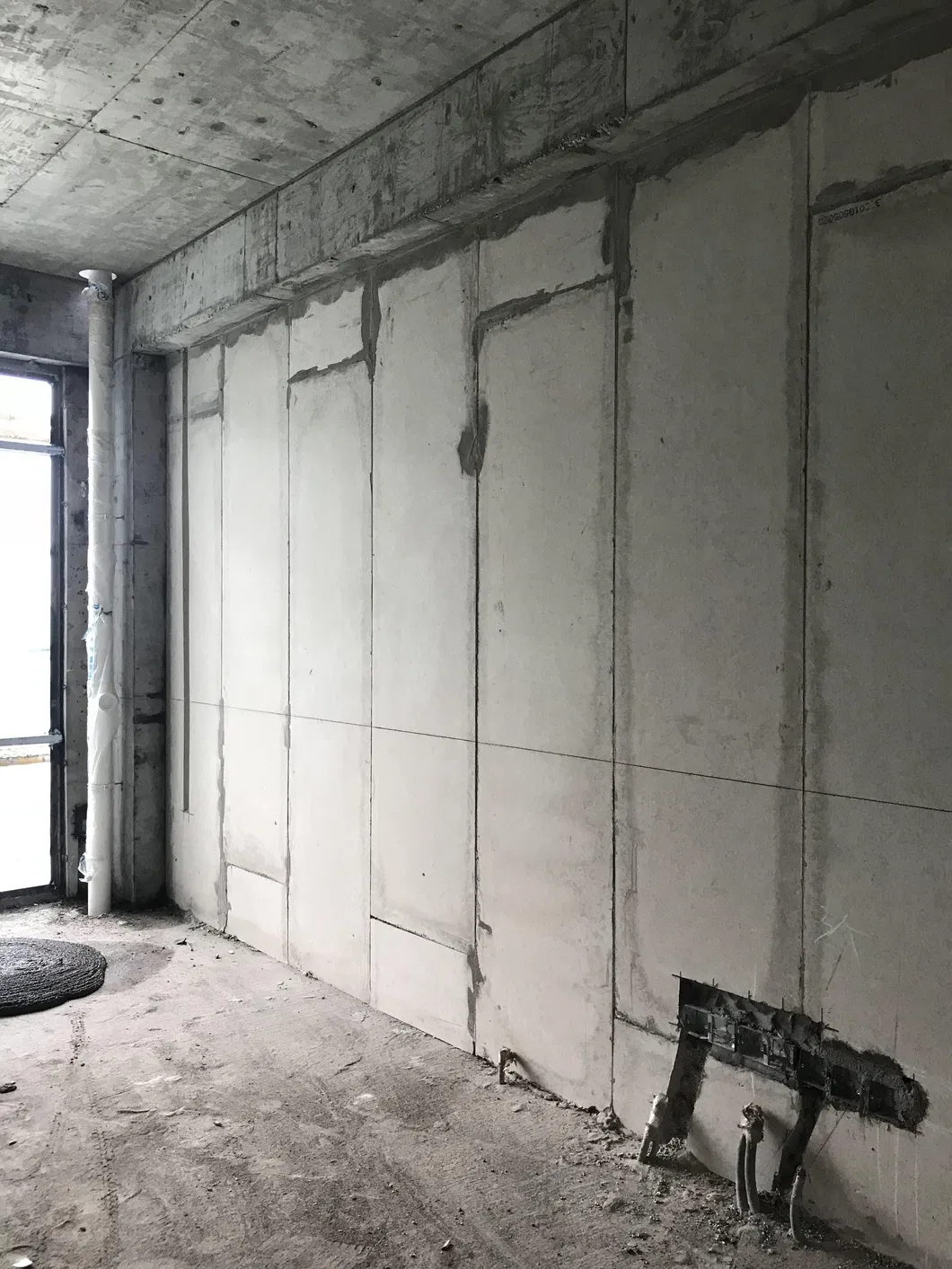

Installation Process

Technical Specification

Sound Insulation:>=42dB

Anti-Impact:No cracking after 10 times

Non-combustibility:BS 476-4 Grade A

Fire Resistance:≥3h

Hanging Strength:50kg

Technical Specification of ZJT Partition Wall

Frequently Asked Questions (FAQ)

1. What is the fire rating of ZJT partition walls? The fire resistance is ≥3 hours for 100mm panels and can reach up to 4 hours, meeting Class A fireproof standards.

2. Can ZJT panels be used for exterior walls? Yes, while they are excellent for interior partitions (75/90/100mm), thicker specifications like 120/150mm are suitable for exterior walls.

3. How many square meters can a worker install per day? The installation is highly efficient; a single worker can typically assemble 30 to 40 square meters per day.

4. Are these wall panels soundproof? Yes, the panels provide excellent sound insulation with a transmission loss of over 42dB for 100mm thick panels.

5. What is the lifespan of the EPS cement sandwich panel? The panels are highly durable and eco-friendly, with a service life ranging from 40 to 70 years.

6. Is the material earthquake resistant? Yes, the system provides high anti-earthquake performance, rated between 8 to 13 grade depending on the supporting steel structure.
