Lightweight and Heat Insulated Building Material EPS Sandwich Partition Wall

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

ZJT-001

Anti-Earthquake

8-13 Grade

Sound Insulation

>45dB

Compressive Strength

3.5MPa

Anti-Wind

13 Degree

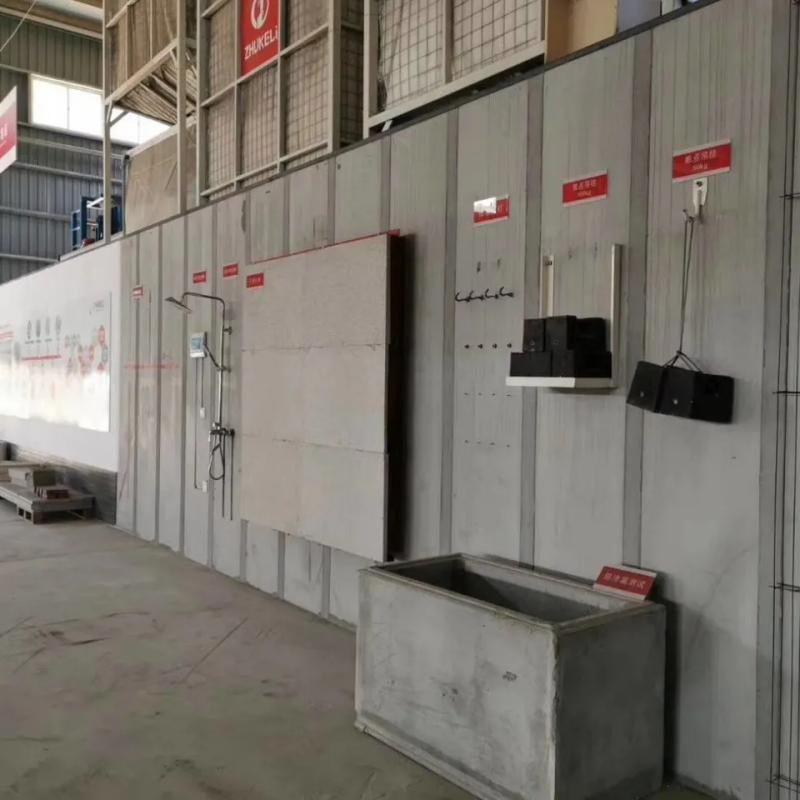

Hanging Force

≥1000n

Certificate

CE, ISO, SGS, TUV

Material

EPS Sandwich Panel

Usage

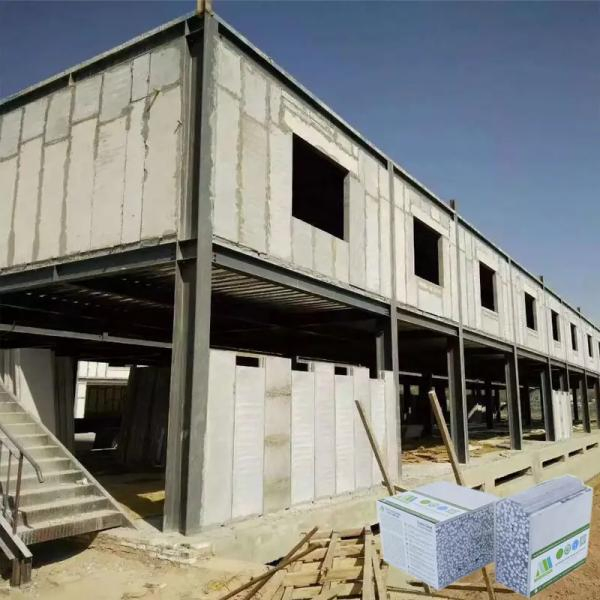

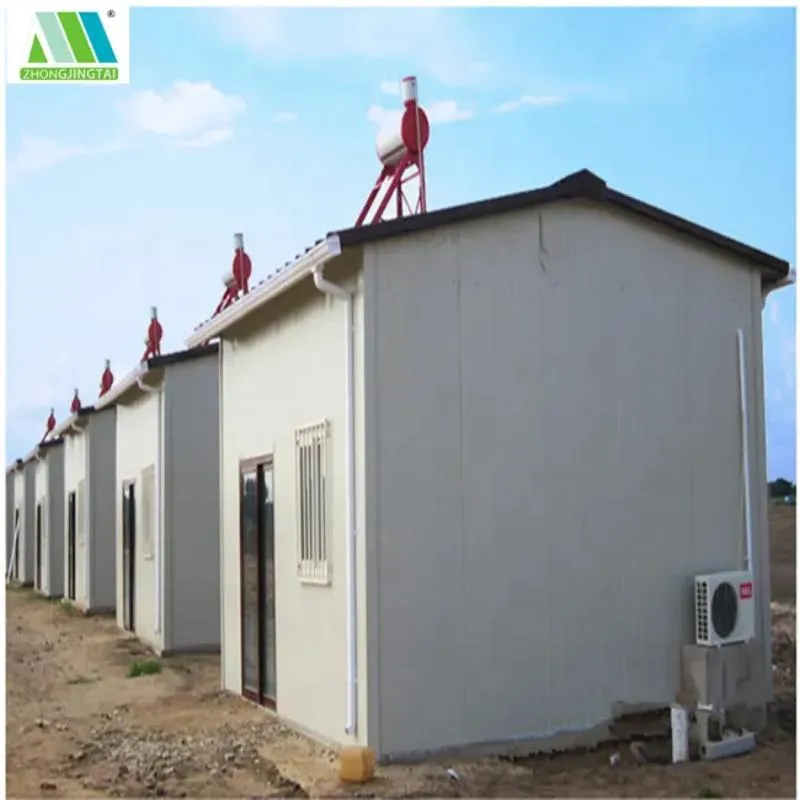

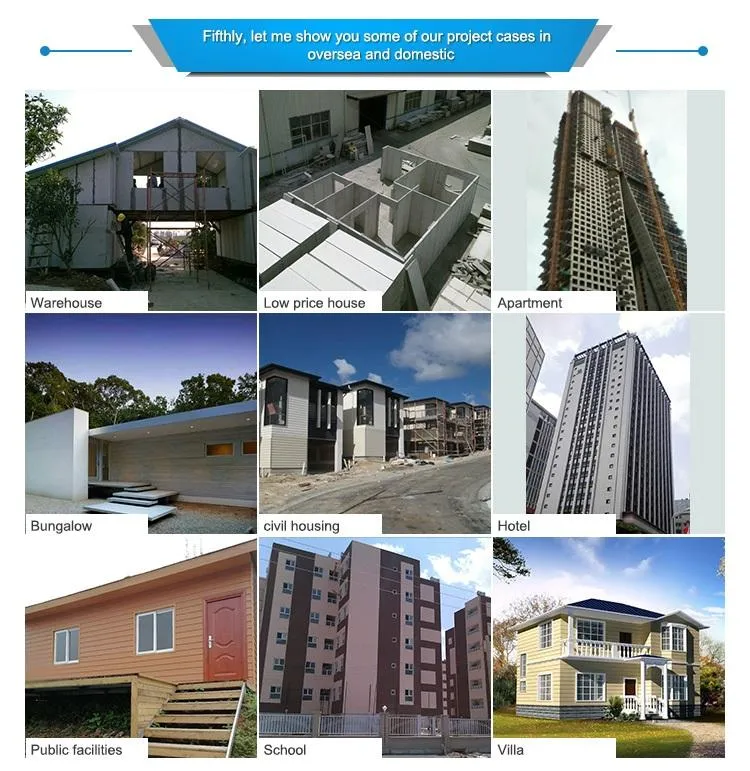

Warehouse, Villa, Dormitories, Workshop, Partition etc.

Thickness

60/75/90/100/120/150mm

Capacity

100,000 Sqm Per Month

Gross Weight

17.000kg

Product Overview

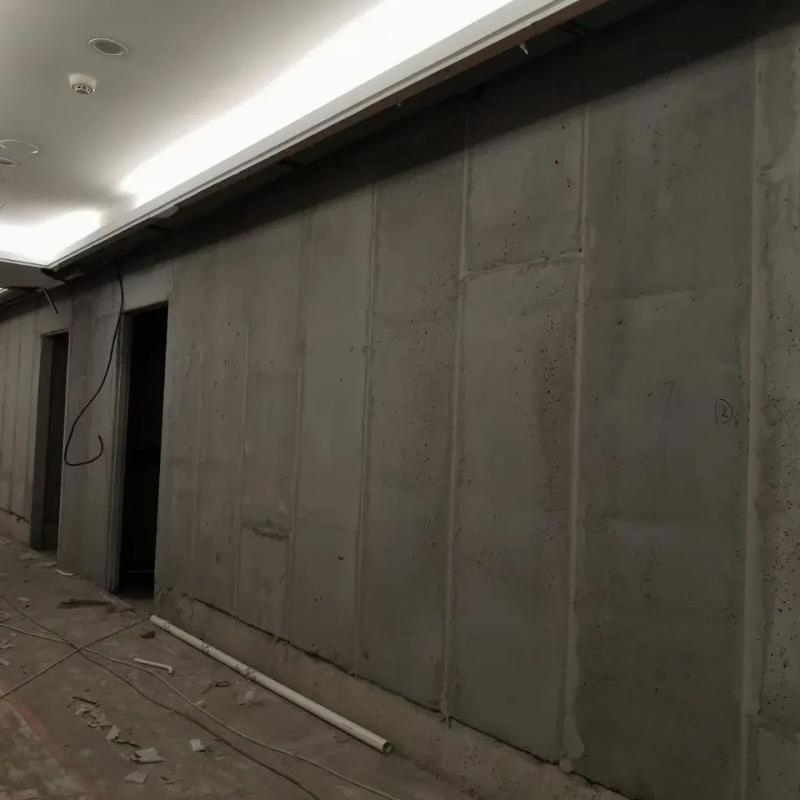

Lightweight and Heat Insulated Building Material EPS Sandwich Partition Wall

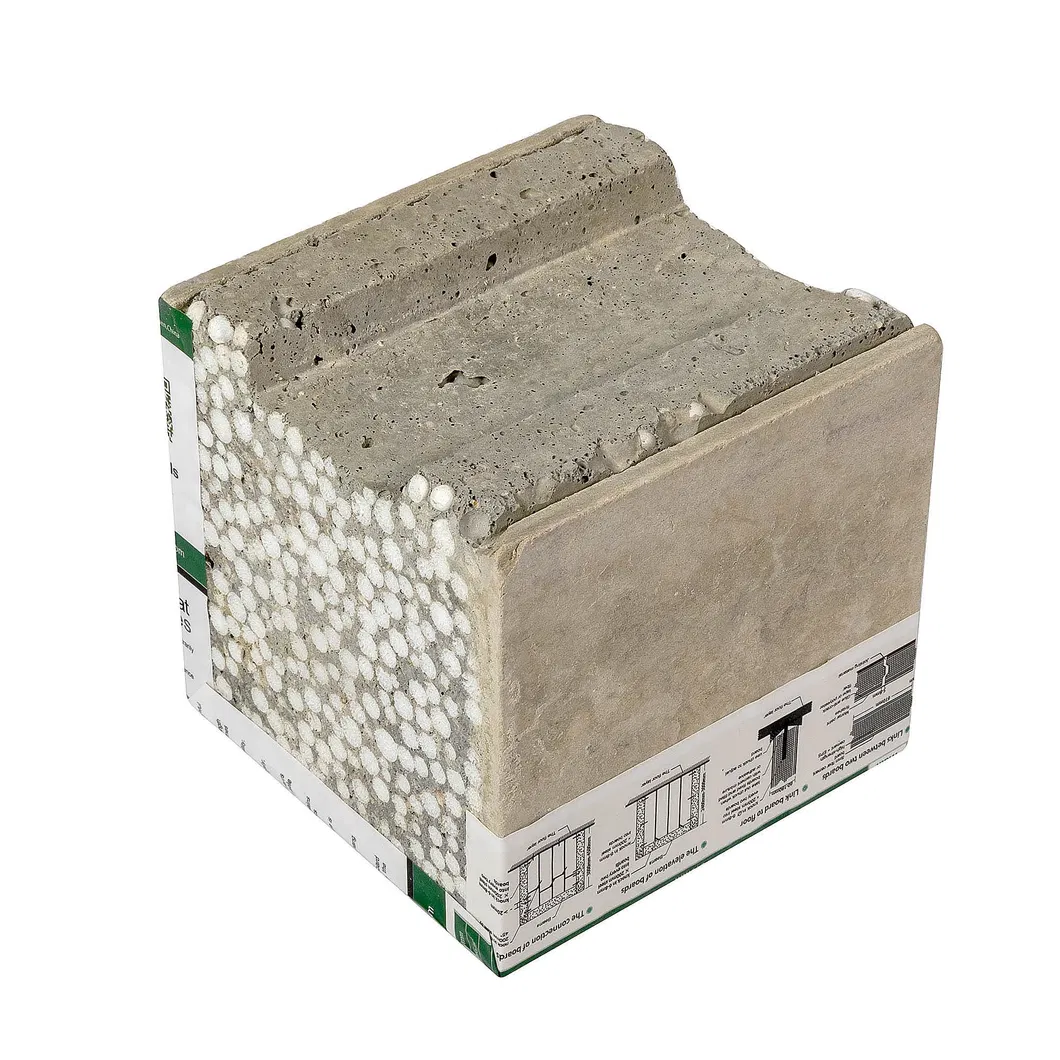

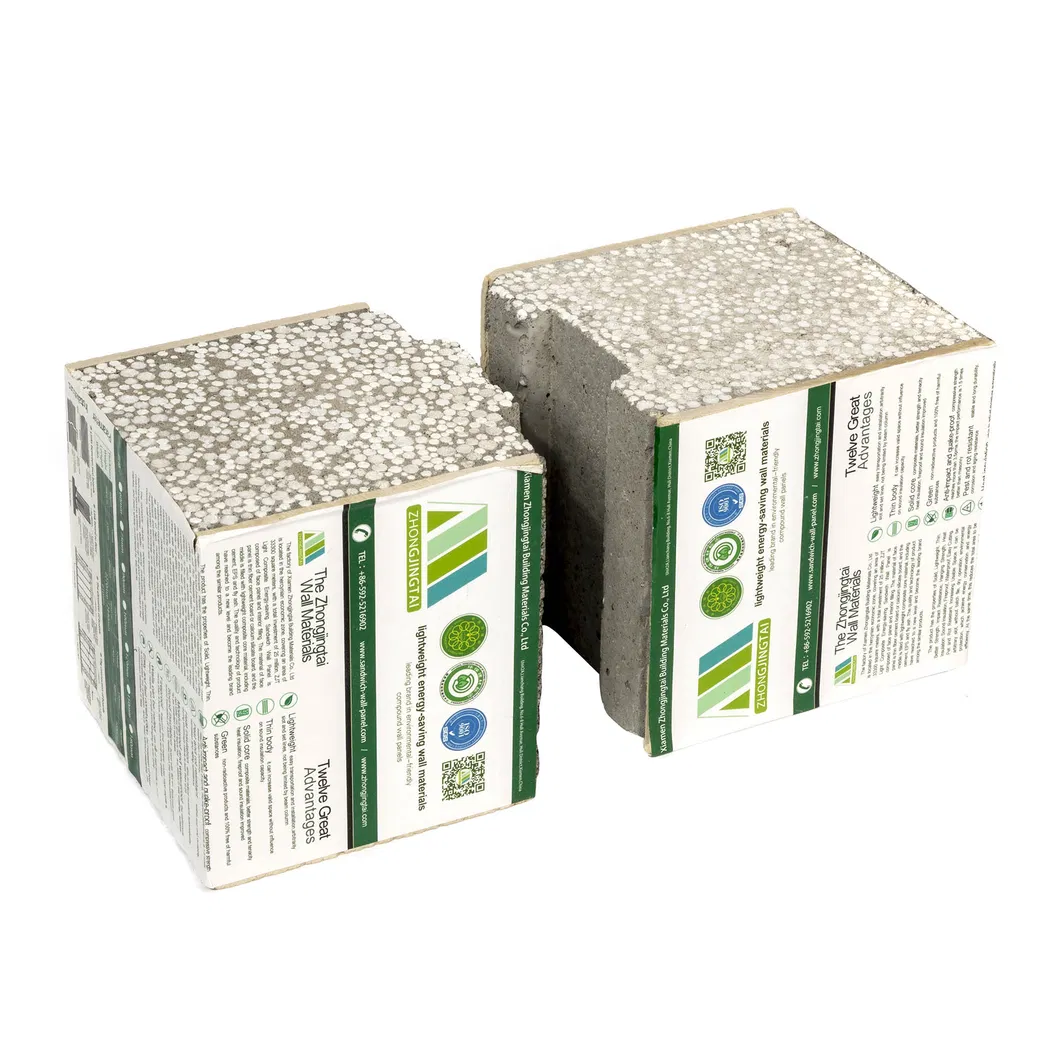

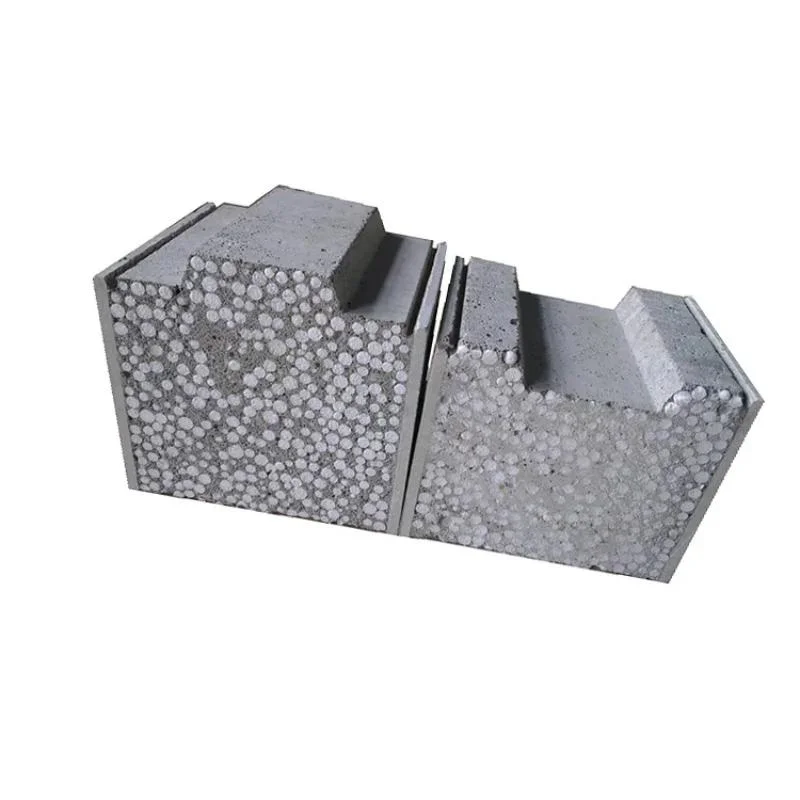

The EPS (Expanded polystyrene board) wall Panel is composed of exterior panels and interior core filling, forming a non-load-bearing light-weight composite wall panel. The exterior panels on both sides are 5mm calcium silicate board, and the middle core is filled with polystyrene beads & cement or ceramsite.

Item Description	Value / Specification
Warranty	Lifetime

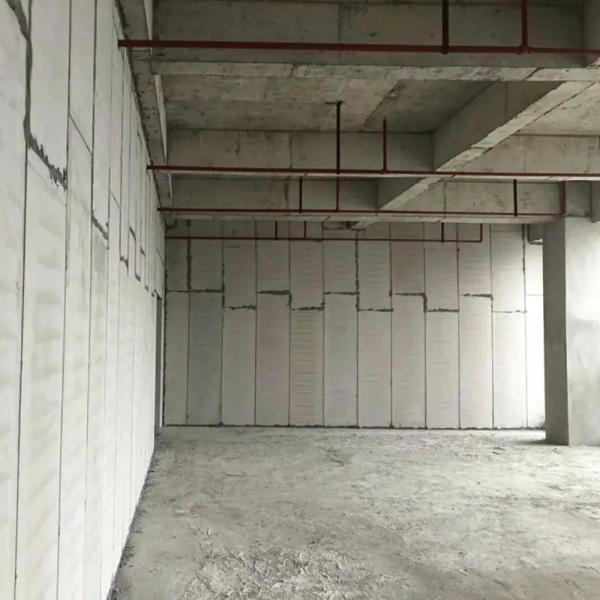

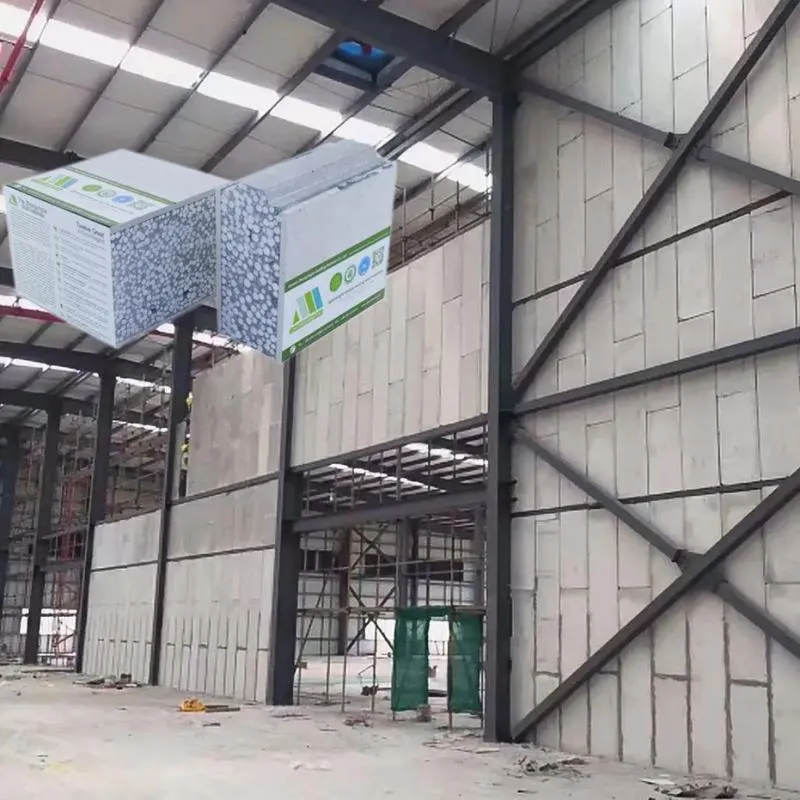

Application	Office Building, Exterior Wall, Interior Partition
Design Style	Modern
Core Material	EPS + Cement + Sand + Additives

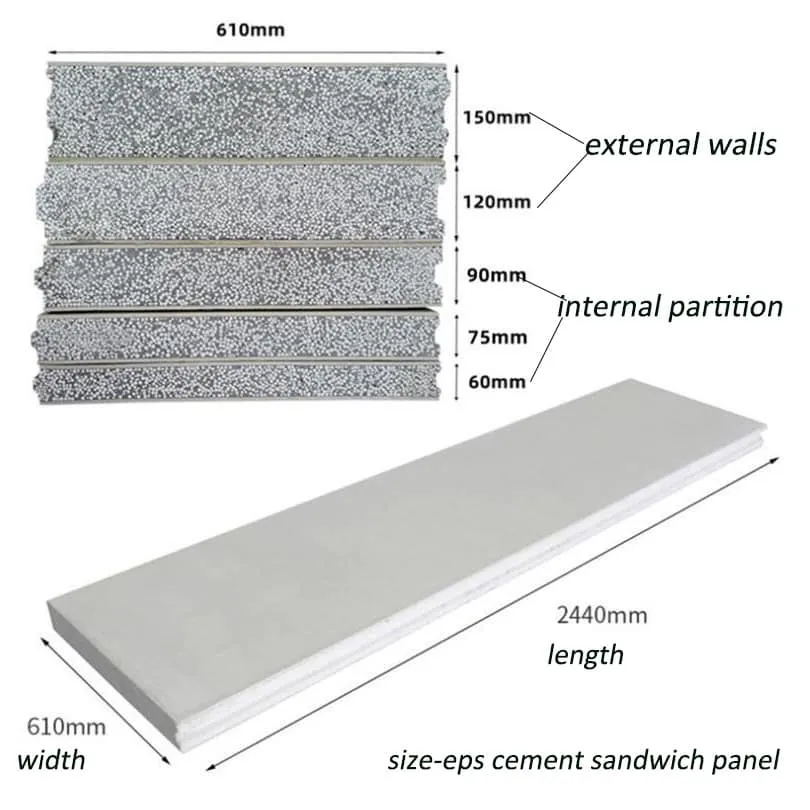

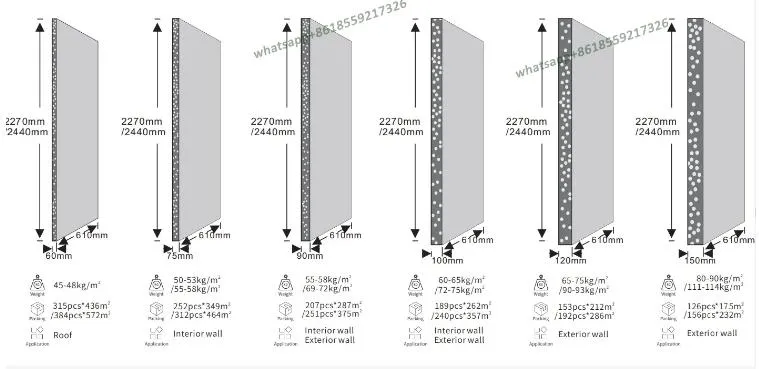

Standard Sizes	2270/2440mm (L) x 610mm (W)
Thickness Options	60/75/90/100/120/150/180/200mm

Installation Process

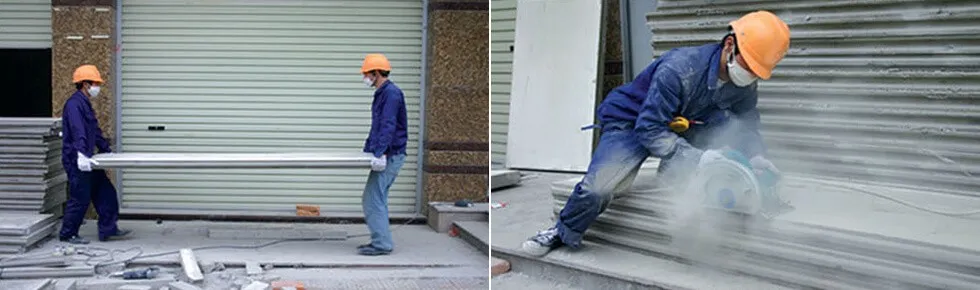

1 Alignment & Transportation

Set beams vertically to ensure alignment. Boards can be carried easily by two people.

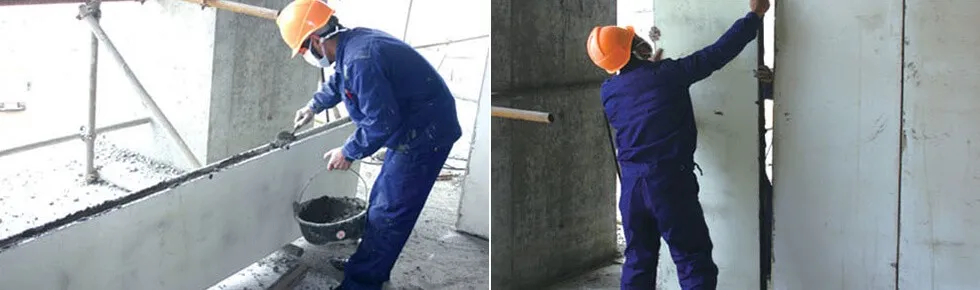

2 Sizing & Fitting

Apply polymer mortar in the grooves. Align wall panels vertically with the baseline and use a crowbar to ensure a tight fit.

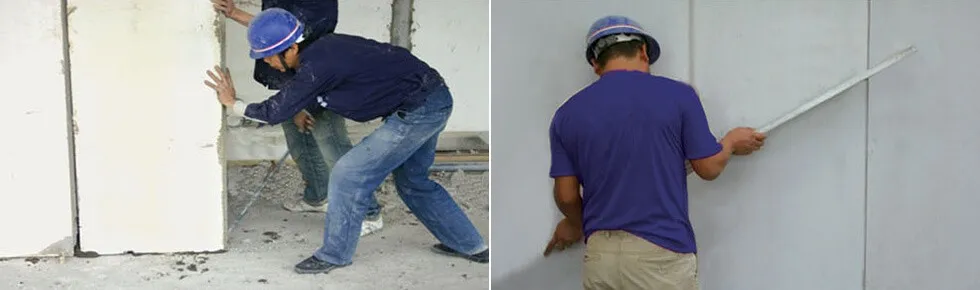

3 Adjustment & Fixing

Check the adjustments and fix the wall temporarily. Excess mortar should be scraped away immediately.

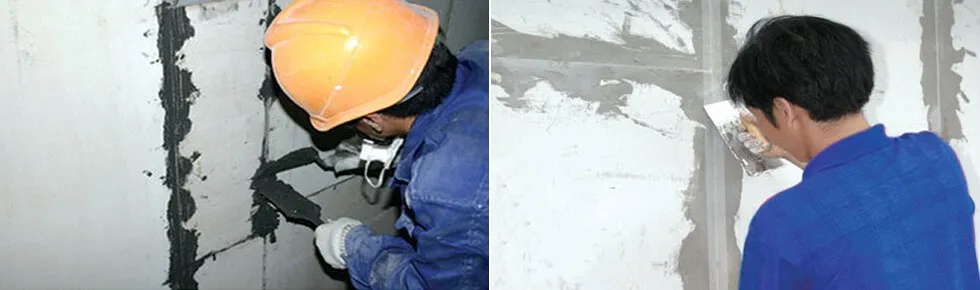

4 Finishing Joints

Fill gaps with slurry after one day. Apply crack-resistant material along the joints after 3-5 days.

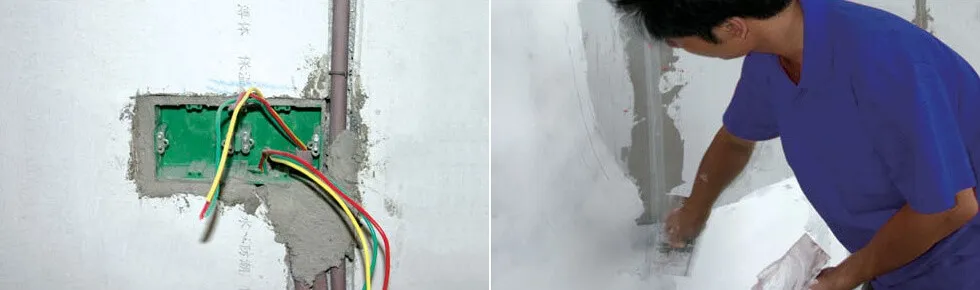

5 Decoration

Tiles, paint, or wallpaper can be applied directly to the wall without additional plastering.

Key Advantages

Rapid Construction: Specifically designed for remote areas and fast project turnaround.
Earthquake Resistant: Scientifically tested to withstand seismic activity (8-13 grade).
Lightweight: Significantly lighter than conventional bricks, reducing structural load.
Efficiency: Two workers can erect 50m² of walling in just one day.
Eco-Friendly: 100% free from harmful substances; high reuse rate (72%-93%).

Frequently Asked Questions

Q1: What are the main components of the EPS sandwich panel? The panels consist of 5mm calcium silicate boards as surface layers and a core made of EPS (expanded polystyrene), cement, sand, and additives.

Q2: How does the panel perform during an earthquake? The panels are highly seismic-resistant, tested to withstand earthquake grades ranging from 8 to 13.

Q3: Is the installation process difficult? Not at all. The lightweight design allows two workers to install up to 50 square meters of wall in a single day.

Q4: Can I apply tiles or paint directly to the panel? Yes, the surface is smooth and ready for direct application of tiles, wallpaper, or paint without the need for additional plastering.

Q5: What is the fire and sound rating of these panels? The panels offer excellent fire resistance and sound insulation properties exceeding 45dB, making them ideal for residential and commercial partitions.

Q6: Are these panels environmentally friendly? Yes, they are 100% non-toxic and non-radioactive. They also have a very high reuse rate of 72%-93% during building demolition.
