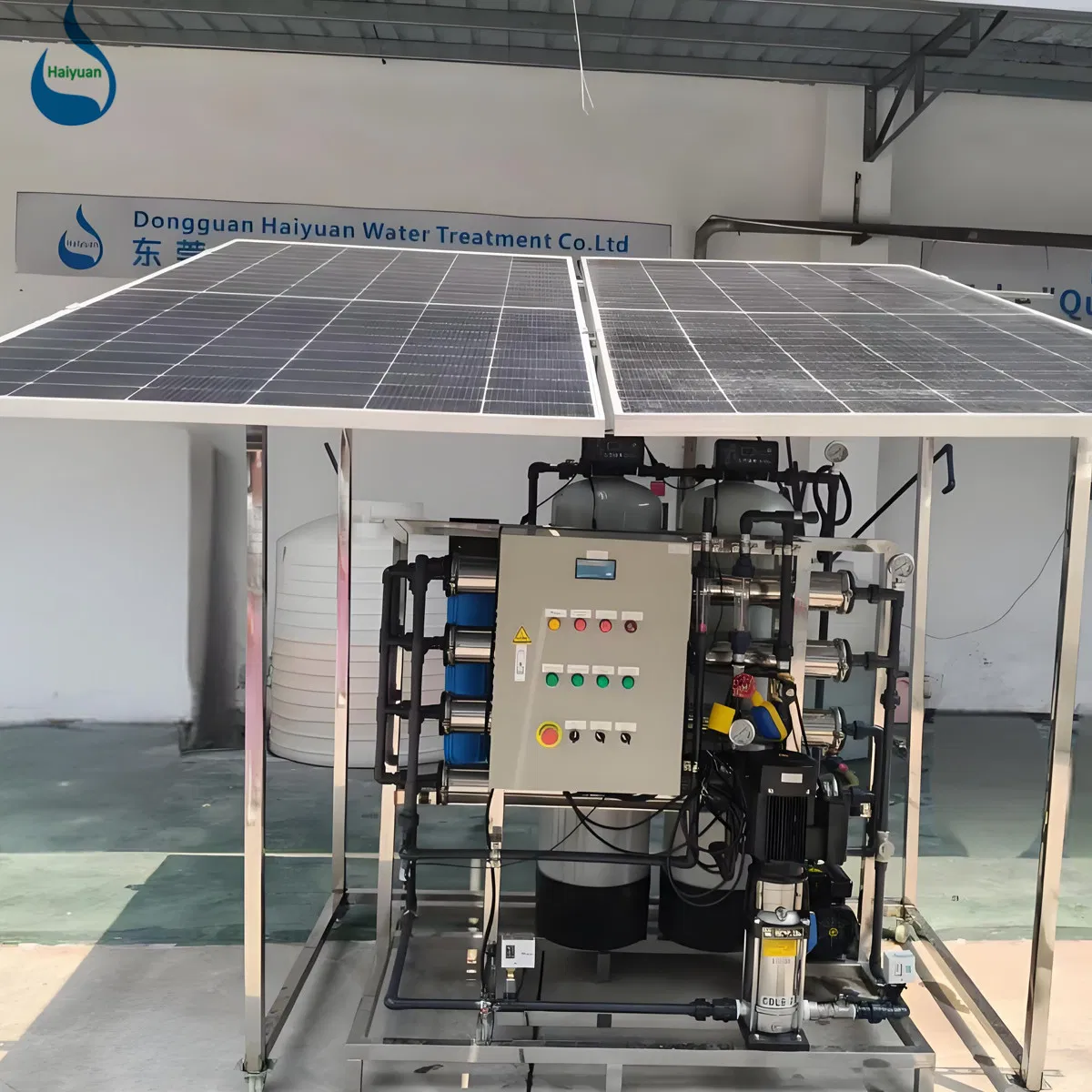

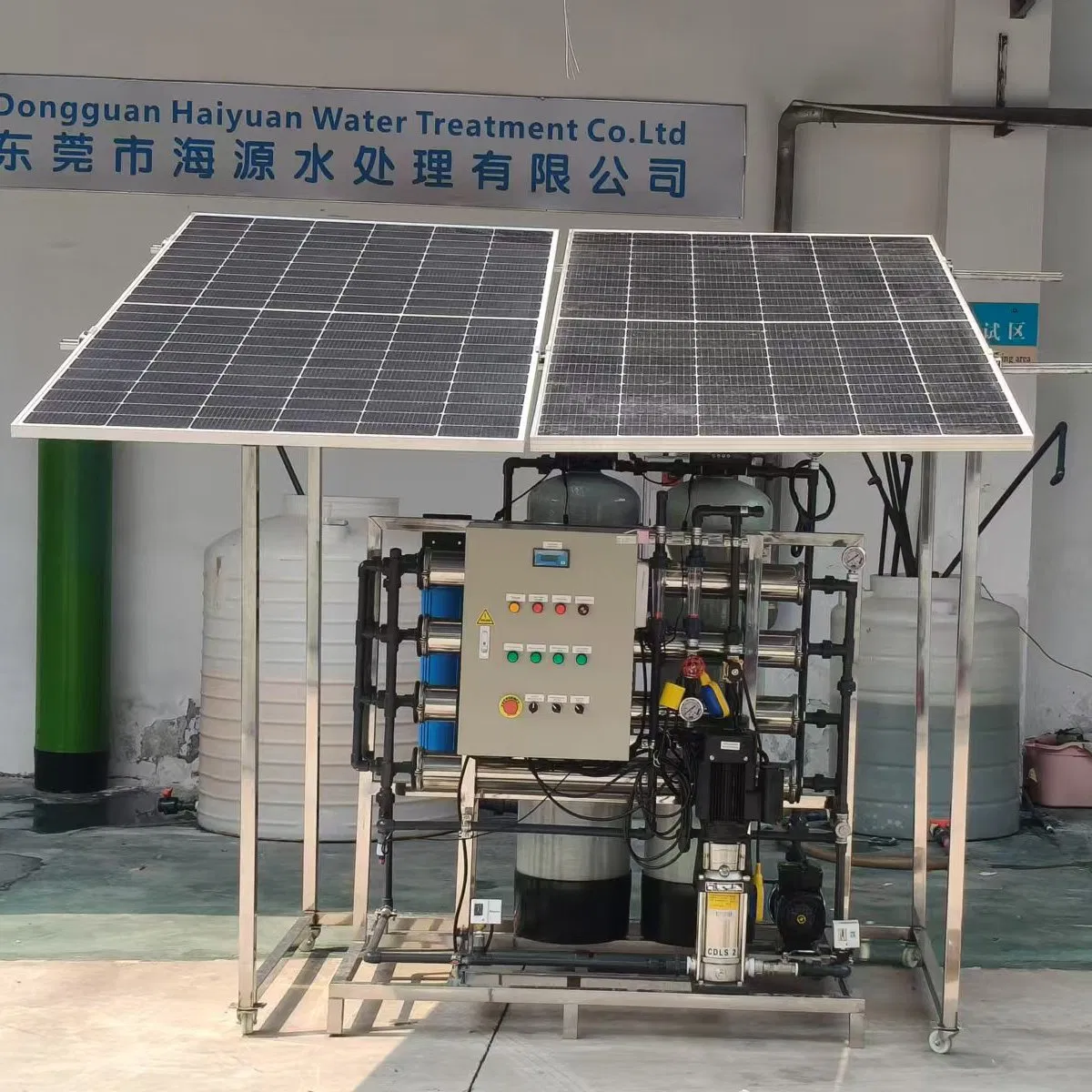

OEM Manufacture Supplier of RO Solar Powered Reverse Osmosis Desalination Reverse Osmosis System

Still deciding? Get samples of $ !
Order Sample

Product Description

Product Overview
Model NO.
HYSRO 1000L
Capacity
1000L/Hr
Source Water
Seawater
Application
Drinking / Irrigation
Machine Name
Solar Power Reverse Osmosis Water Purifier
HS Code
842121
Packaging & Delivery
Package Size
550.00cm * 110.00cm * 165.00cm
Gross Weight
600.000kg
Product Description
Solar Powered Reverse Osmosis System

Solar Reverse Osmosis RO System 1000LPH Solar Powered Water Treatment Systems

A solar powered reverse osmosis water system is a device that uses solar energy to remove impurities from water (such as seawater, brackish water, etc.) through reverse osmosis technology to produce fresh water.

The system integrates solar heat collection, power conversion, and reverse osmosis membrane separation to achieve a green and sustainable process of extracting fresh water.

Solar RO Technical Diagram
System Advantages
  • Low Operating Cost: Utilizes free solar energy, saving significant energy costs in long-term operation.
  • Strong Adaptability: Ideal for remote areas, islands, and disaster zones without stable power supply.
  • Superior Water Quality: High desalination rate removes salts, heavy metals, bacteria, and organic matter.
  • Sustainability: Uses inexhaustible clean energy for a stable, long-term water supply.
Technical Parameters (HY-1000L/hr)
Flow Rate 1000L/hr Recovery Rate 50%
Applicable Power 1PH x 220V, 50Hz Rated Power 1.65KW
Solar Powered 35 KW Inverter 44KW
Solar Panel 14 PCS Battery 14PCS, 36KW
Core Functions
  • Fresh Water Supply: Desalinates seawater to alleviate water crises in industrial and residential sectors.
  • Water Quality Improvement: Ensures drinking water safety by removing harmful components.
  • Emergency Response: Rapidly provides fresh water during natural disasters and reconstruction.

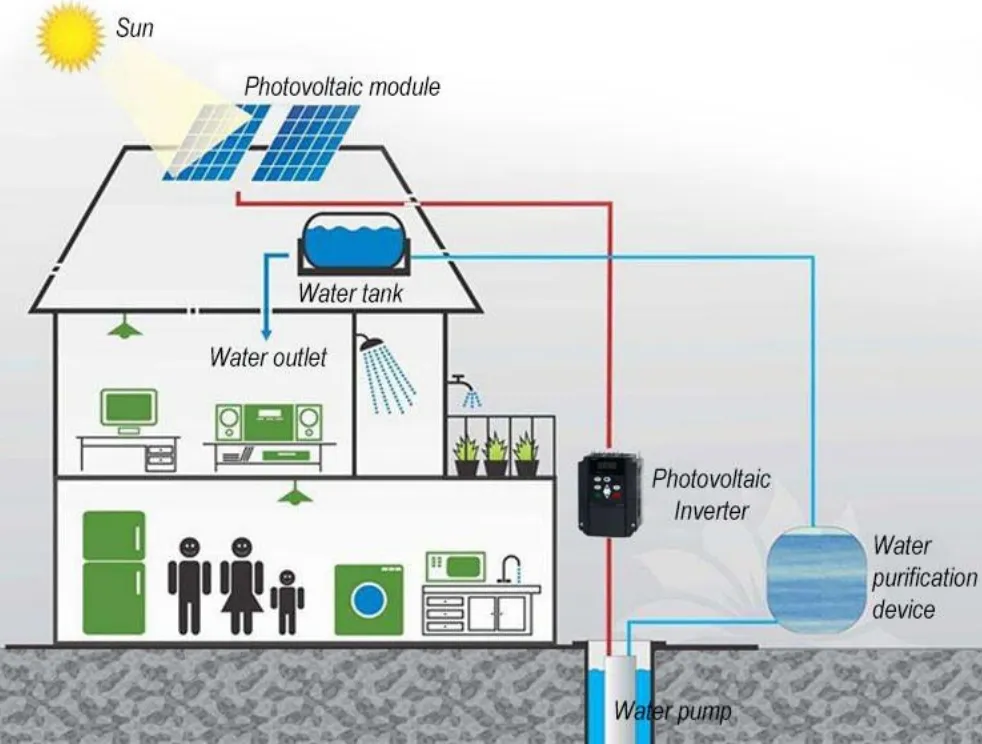

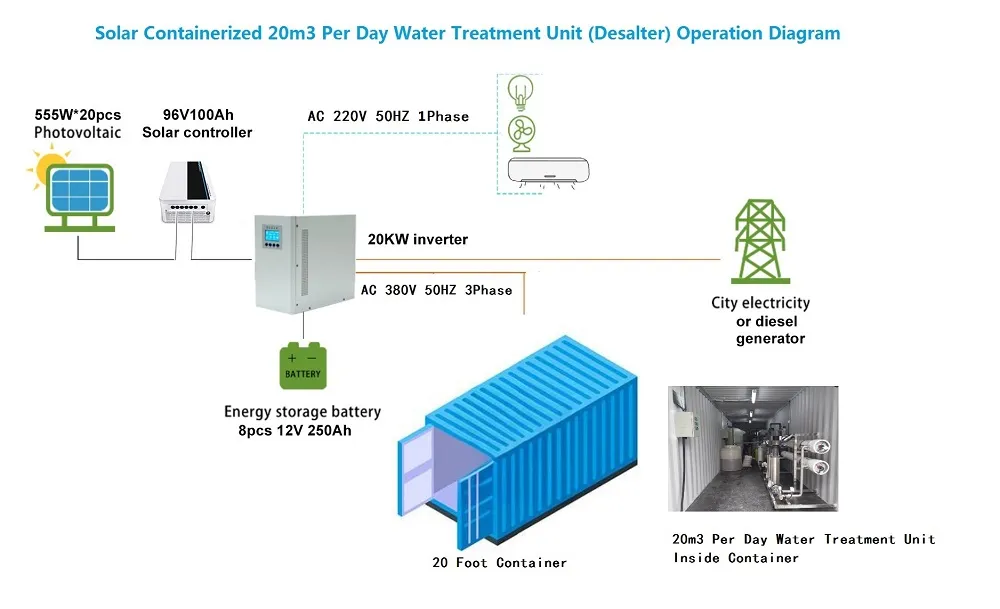

Solar RO Component 1 Solar RO Component 2
Application Scenarios

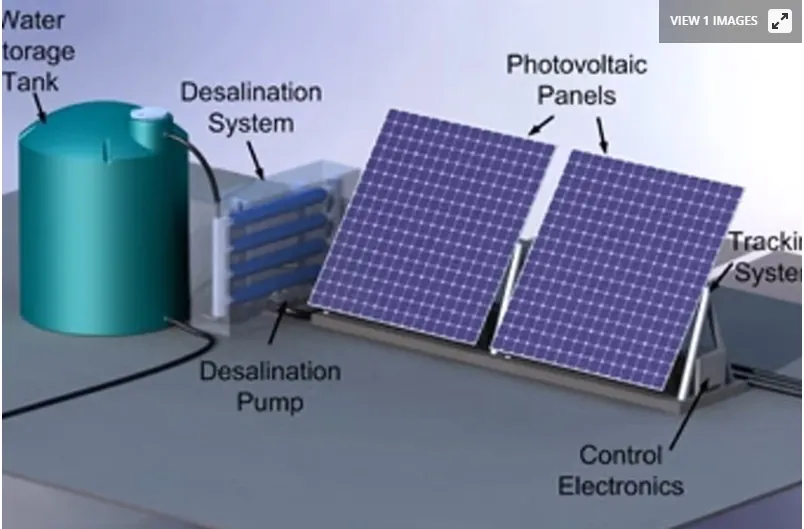

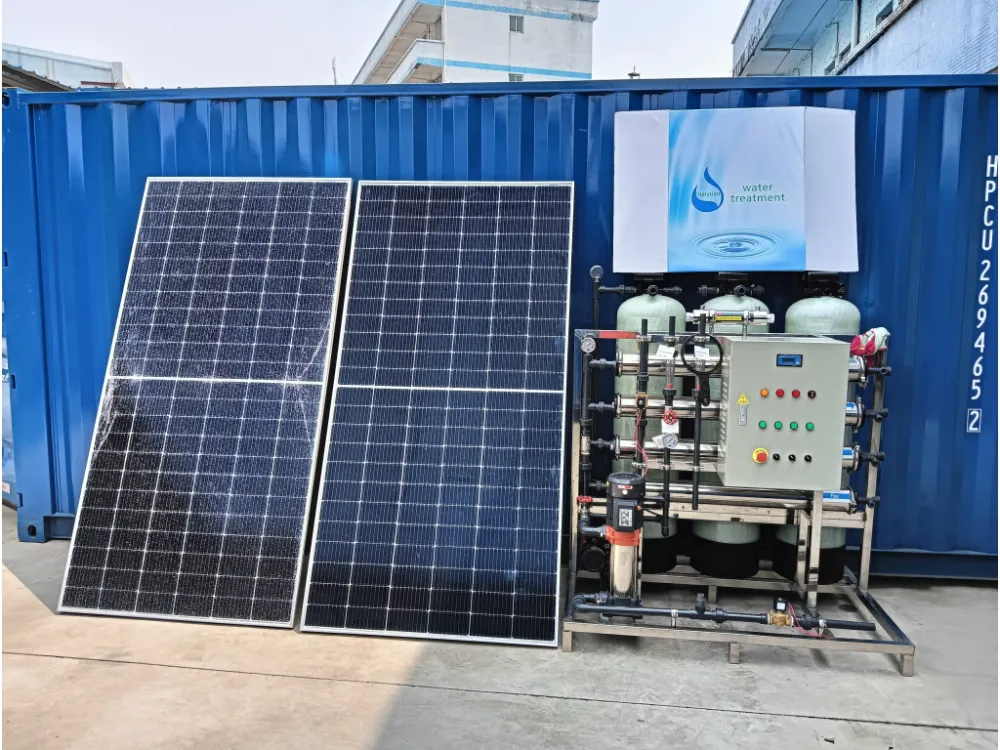

Application 1 Application 2

Ideal for: Industrial Water, Agricultural Irrigation, Remote Areas, Islands, Disaster Areas, and Coastal Water-Scarce Cities.

SWRO Process Steps
Pre-treatment Feed Water Pump (SS316L) Provides initial filtration pressure.
Quartz Sand Filter Removes suspended particles.
5/1 Micron Filter Removes micro-colloids to protect membranes.
RO Main Part High Pressure Pump Provides high pressure for desalination.
RO Membranes Over 98% desalination rate.

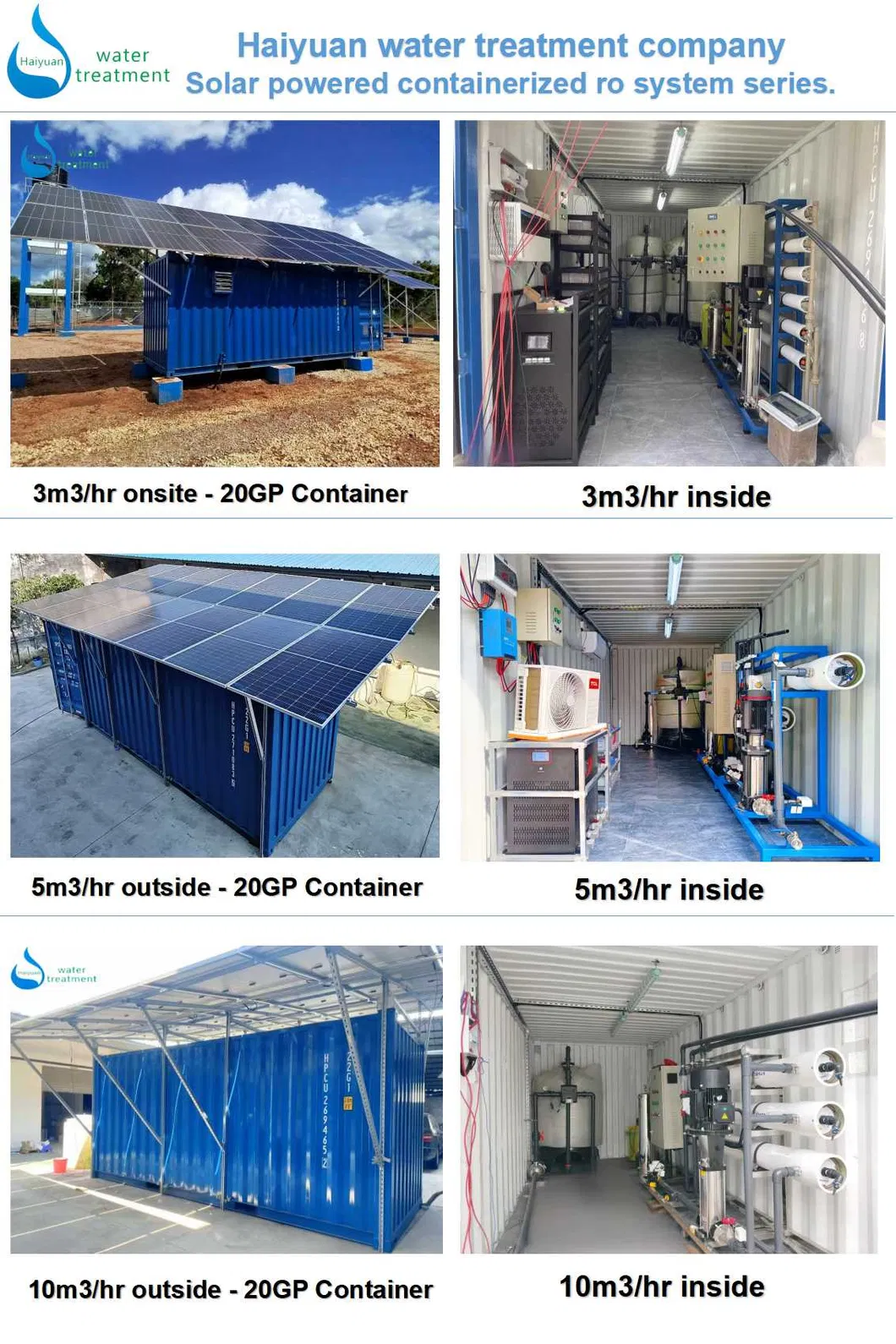

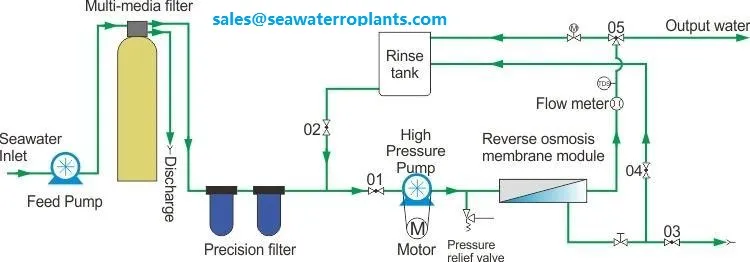

Process Flow Chart System Structure
Main Product & Factory

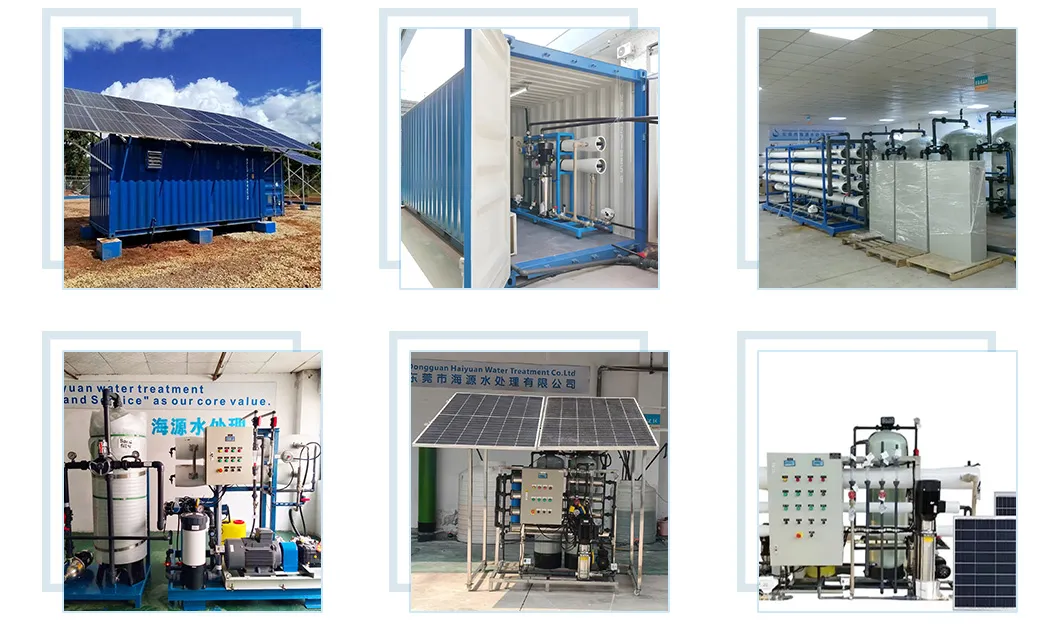

Main Products Company Profile

With more than 15 years of experience in water treatment systems, we design, manufacture, and install containerized solar powered desalination plants. Our mission is to be your water treatment consultant, providing high-quality solutions and reasonable pricing.

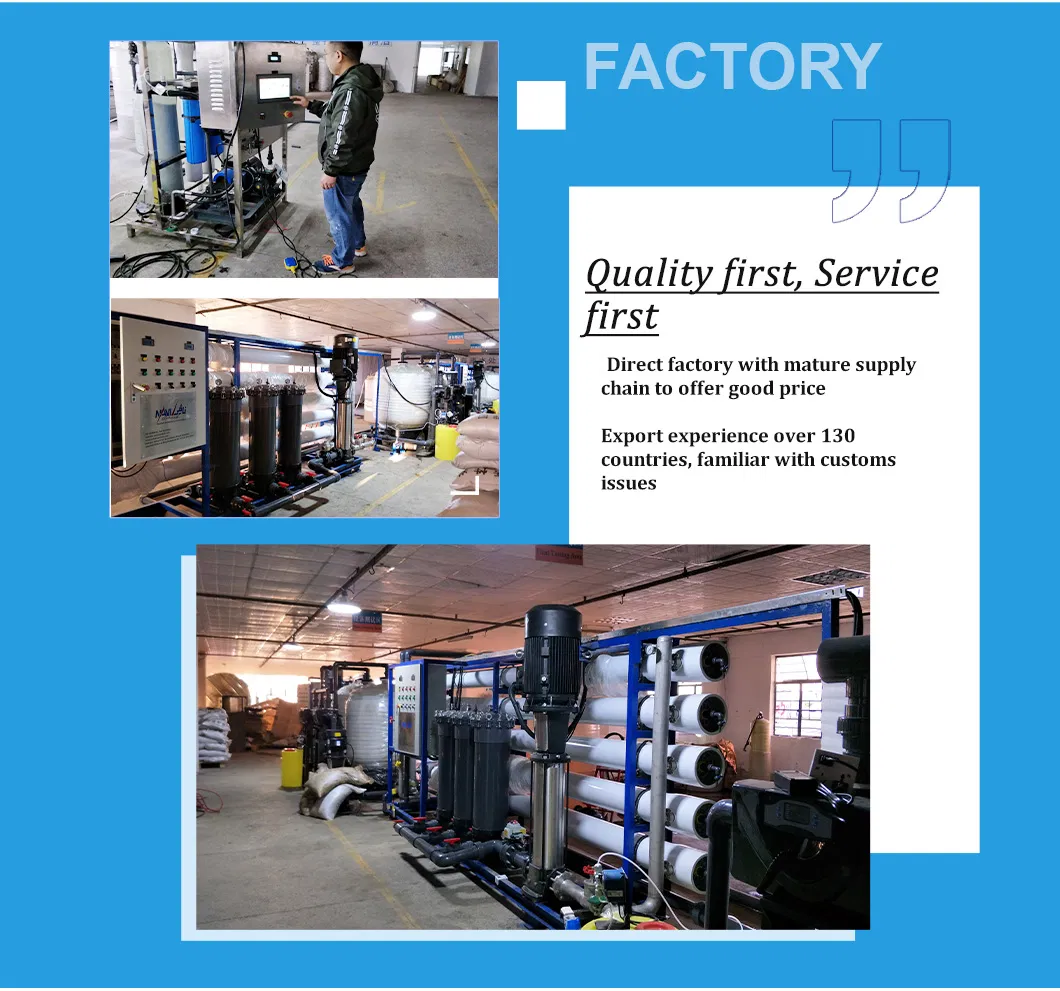

Factory Facility
Certificates & Exhibition
Certificates Exhibition
Service and After-Sales
  • Overseas installation assistance available.
  • Direct manufacturer pricing and support.
  • OEM & ODM service capability.
  • 24/7 After-sales department accessibility.
  • Professional installation guides and video guidance.
  • One-year product guarantee.
Frequently Asked Questions
1. How does the solar reverse osmosis system work?
The system uses photovoltaic panels to convert sunlight into electricity, which powers the high-pressure pumps. These pumps force source water through semi-permeable membranes to remove salt and contaminants.
2. Can this system work at night or on cloudy days?
Yes, our systems are equipped with battery storage banks. During sunny periods, excess energy is stored in batteries to ensure continuous operation during the night or low-light conditions.
3. What kind of water sources can be treated?
The system is designed to treat seawater, brackish water, and high-salinity well water, converting them into fresh drinking or irrigation water.
4. How often do the RO membranes need to be replaced?
With proper pre-treatment and regular maintenance, RO membranes typically last between 2 to 3 years depending on the source water quality and usage frequency.
5. Is the system difficult to install?
No, we provide comprehensive installation manuals and video tutorials. For large containerized systems, we offer overseas engineering support for setup and commissioning.
6. What maintenance is required for the solar panels?
Solar panels require minimal maintenance, primarily regular cleaning to remove dust or debris to ensure maximum sunlight absorption and energy efficiency.
