Quick Install Thermal Insulated Partition Wall for Resorts

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

🔹 Overview & Basic Info

Model NO.ZJT-F

Fire Rating3-4 Hours

Core MaterialEPS+Sand+Cement

Thickness60-150mm

FeaturesFireproof, Waterproof, Sound Insulation

CertificationISO9001, SGS, TUV

ApplicationOffice, Prefab House, Wall

Capacity20000 Sqm Per Month

🔸 Product Description

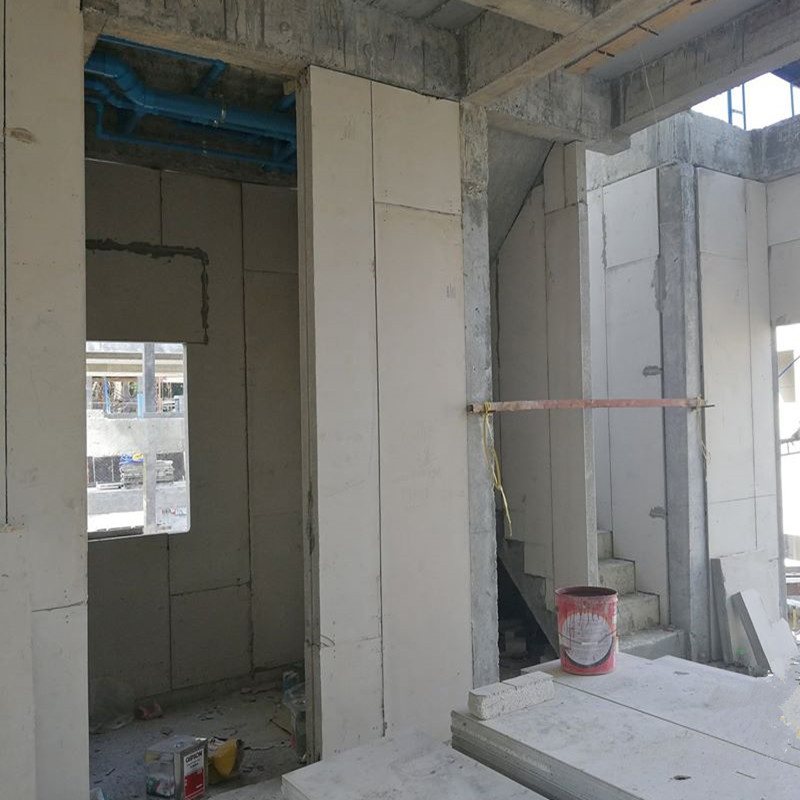

Quick Install Heat Insulated Internal Partition Wall

The surface layer of the wallboard is a calcium silicate board, and the intermediate core materials include cement, fly ash, polystyrene particles, fine sand, rubber powder, and chemical additives. Calcium silicate board is made of high-quality cement as the base material, reinforced with natural fibers. It is fire-proof, moisture-proof, sound-proof, and highly durable.

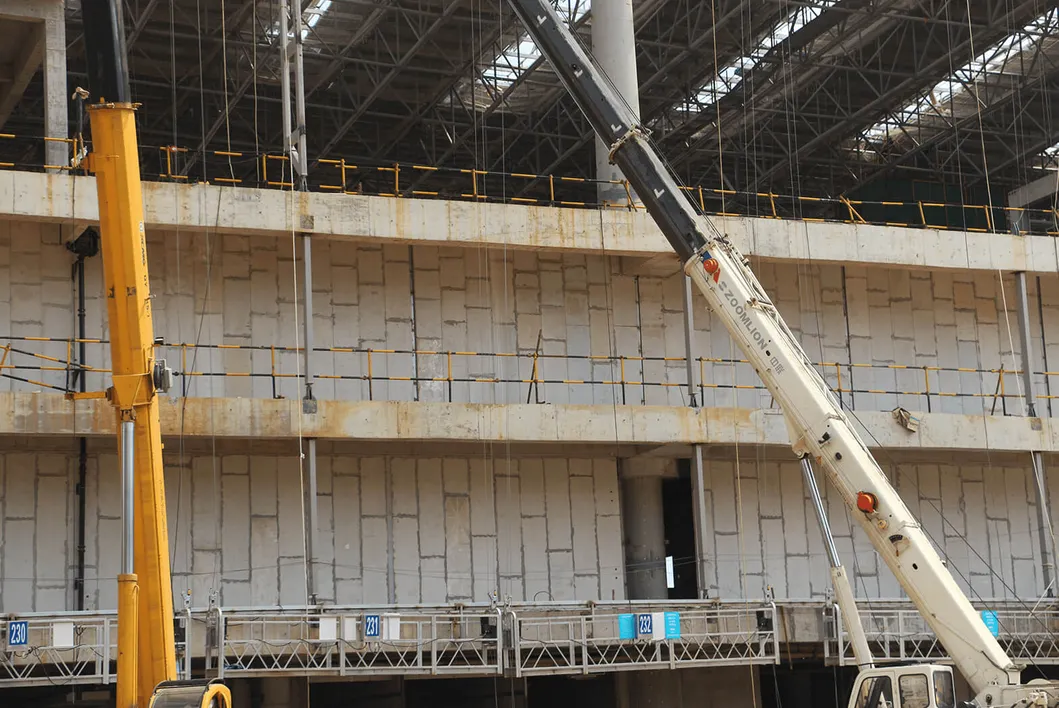

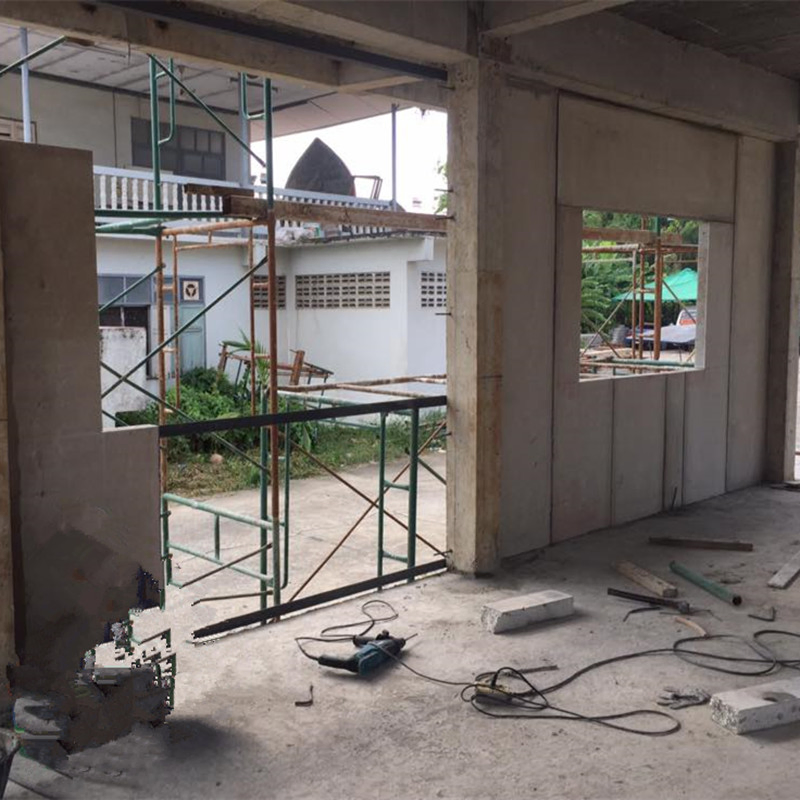

Thermal Insulated Partition Wall Application

Because of its high strength, light weight, and non-combustibility, these panels are widely used for partition walls, ceilings, and non-load-bearing wall panels in buildings, especially in places requiring fire and water resistance.

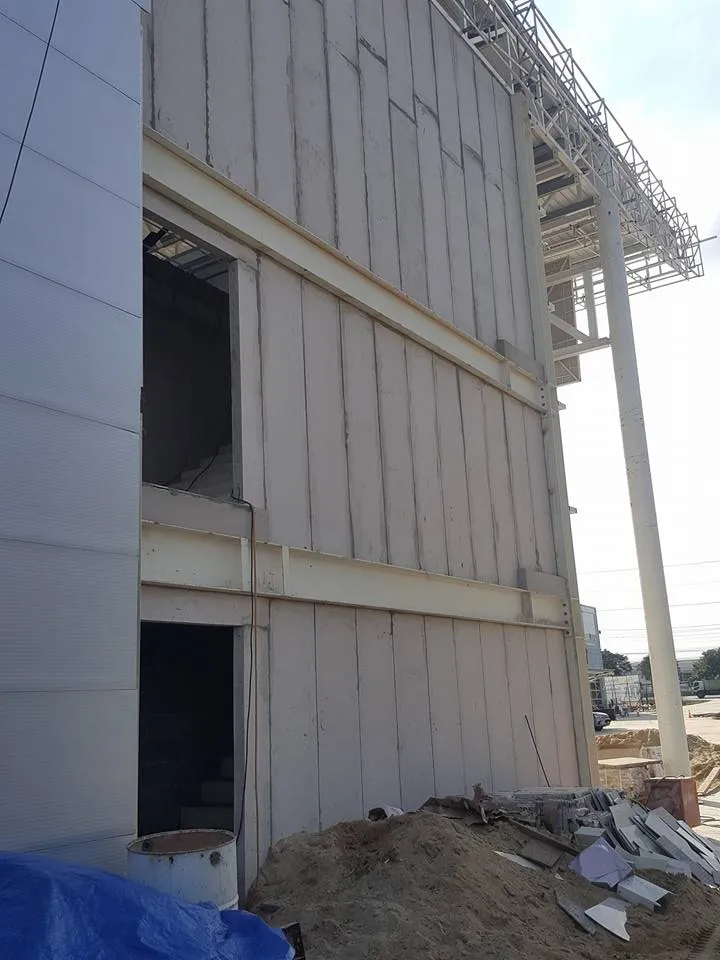

📊 Product Parameters

ITEM	DESCRIPTION
Composition	5mm Calcium silicate board + EPS/Cement/Sand Core
Characters	Lightweight, insulation, fireproof, waterproof, fast installation
Dimensions	Length: 2270/2440mm \| Width: 610mm \| Thickness: 60-150mm
Packaging	Packed with plastic film, protected by belt on pallets
Certificate	SGS, TUV, Fire insulation certificate, Sound transmission loss

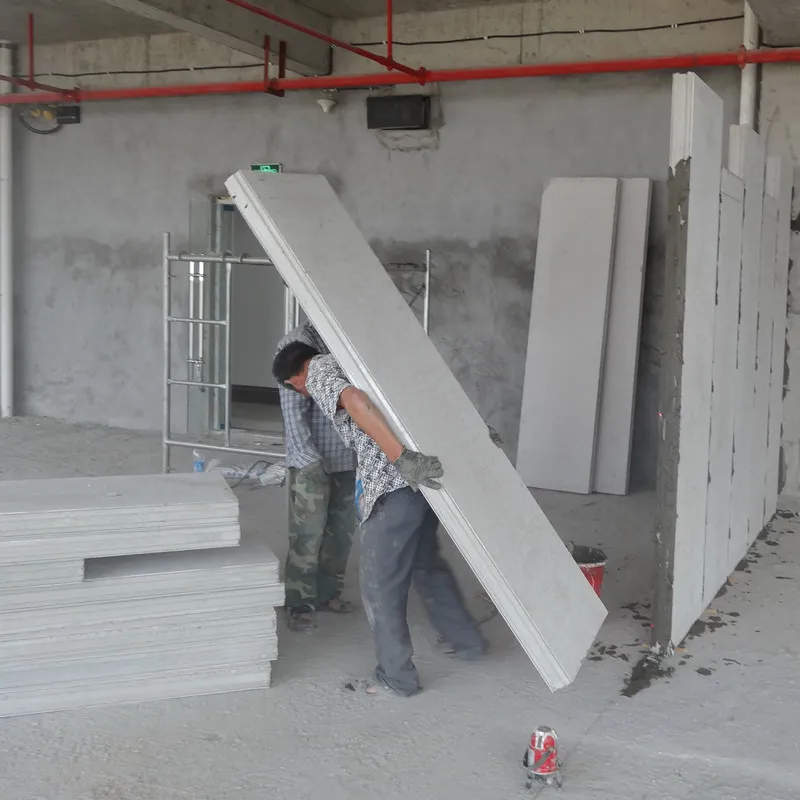

🛠️ Installation Instructions

Set line: Set line and carry panel in position.

Saw panel: Use hand-hold electric saw to cut freely.

Sizing: Spread polymer mortar on tenon side.

Installation: Carry and align the prepared panel.

Correction: Use a guiding ruler to check and level.

Finishing: Fill slurry, stick anti-crack cloth, and apply coating.

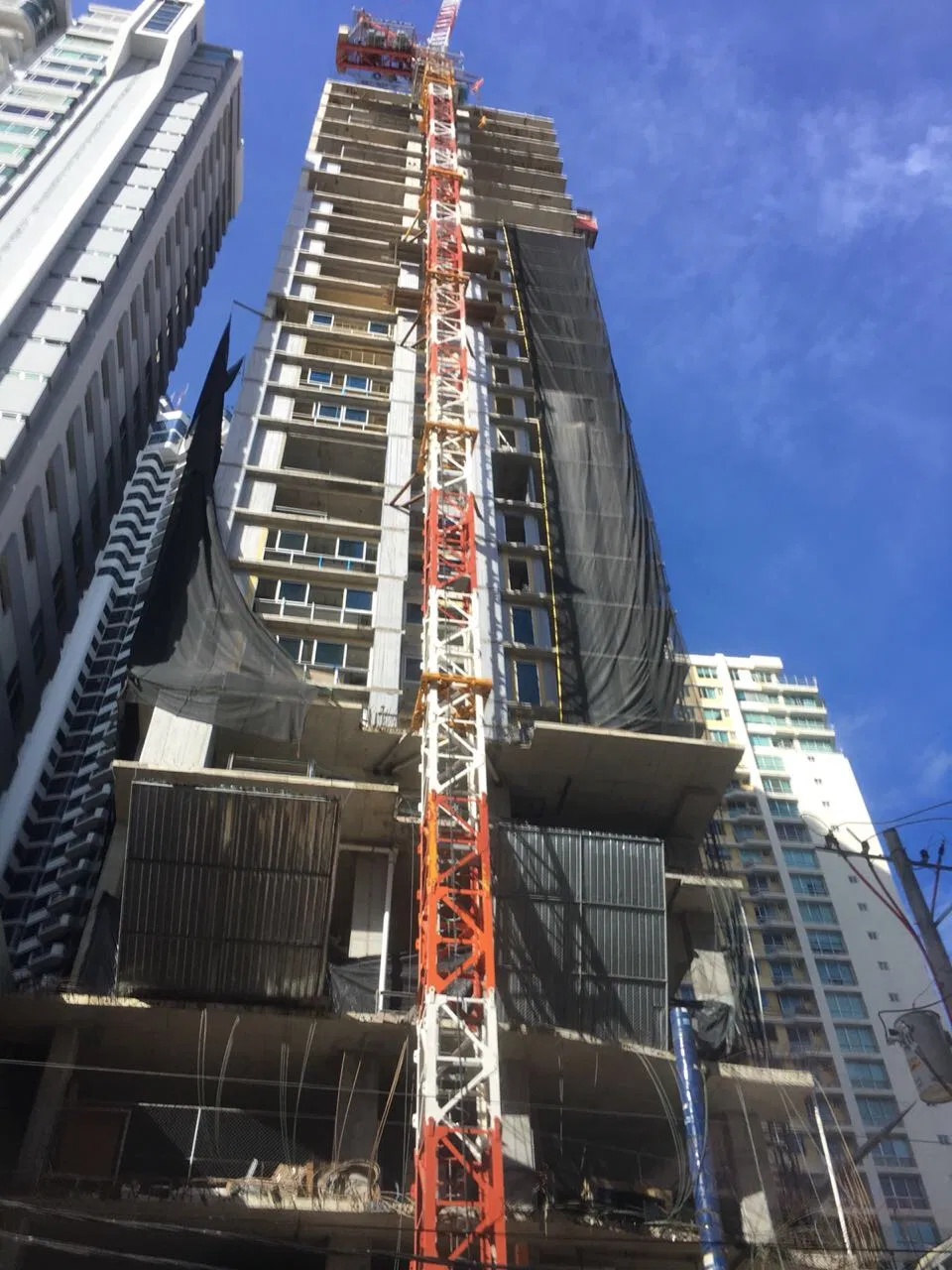

🏠 Application Scope

Thickness	Recommended Application
60mm / 75mm	Roof systems and lightweight structures
90mm / 100mm	Interior partition walls for offices and hotels
120mm	Exterior walls, floors, and roof decks
150mm	Heavy-duty exterior walls

❓ Frequently Asked Questions

What is the core material of these panels?

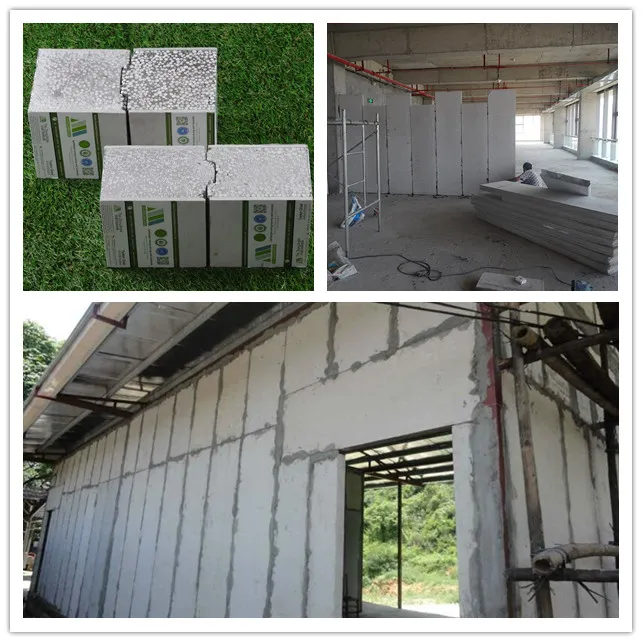

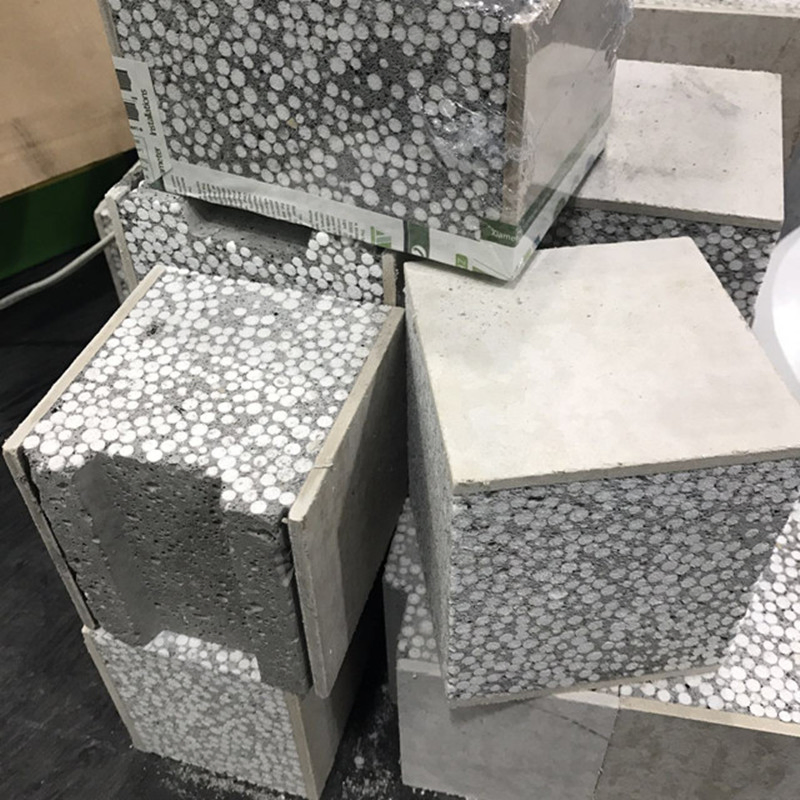

The panels consist of a core made from a mix of EPS (Polystyrene) particles, cement, fly ash, and sand, sandwiched between 5mm calcium silicate face boards.

How long can these panels resist fire?

Our EPS cement sandwich panels have a fire rating of 3 to 4 hours, making them ideal for high-safety construction projects.

Are the panels waterproof and moisture-proof?

Yes, the surface calcium silicate board and the core mix provide excellent resistance to water and moisture, preventing rot or insect damage.

Can I get a sample before ordering?

We provide samples free of charge. Customers are only required to cover the shipping or courier costs.

What are the primary advantages over traditional brick walls?

They are significantly lighter, offer better heat and sound insulation, and allow for much faster installation, which reduces overall labor costs.
