Overview
| Model NO. | HYSRO 1000L |
Capacity | 1000L/Hr |
| Source Water | Seawater |
Incoming Water | Salt Water |
| Untreated Water | for Drinking |
Used in | Irrigation |
| Machine Name | Solar Power Reverse Osmosis Water Purifier |
| Origin | China |
HS Code | 842121 |
📦 Packaging & Delivery
| Package Size | 550.00cm * 110.00cm * 165.00cm |
| Package Gross Weight | 600.000kg |
Product Description

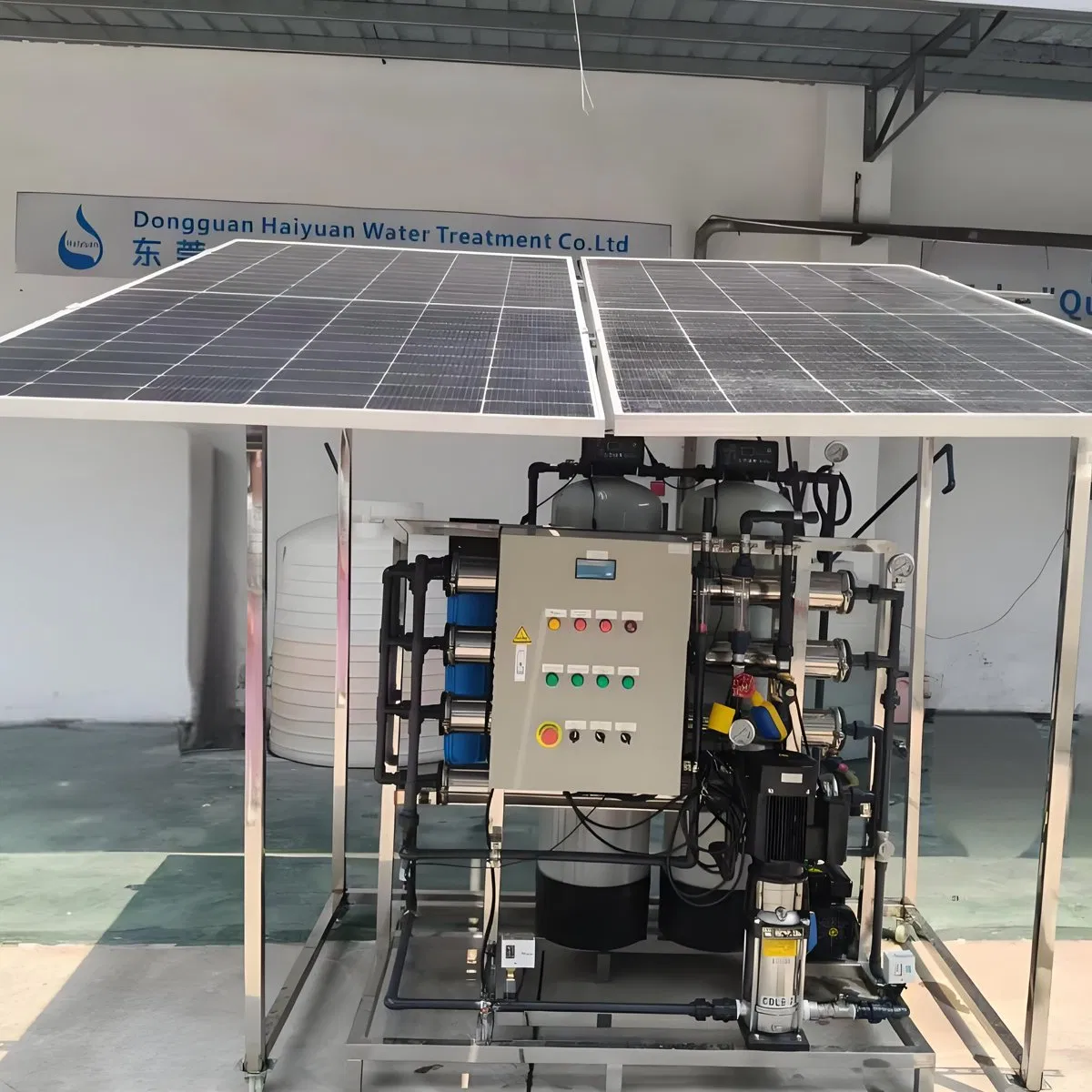

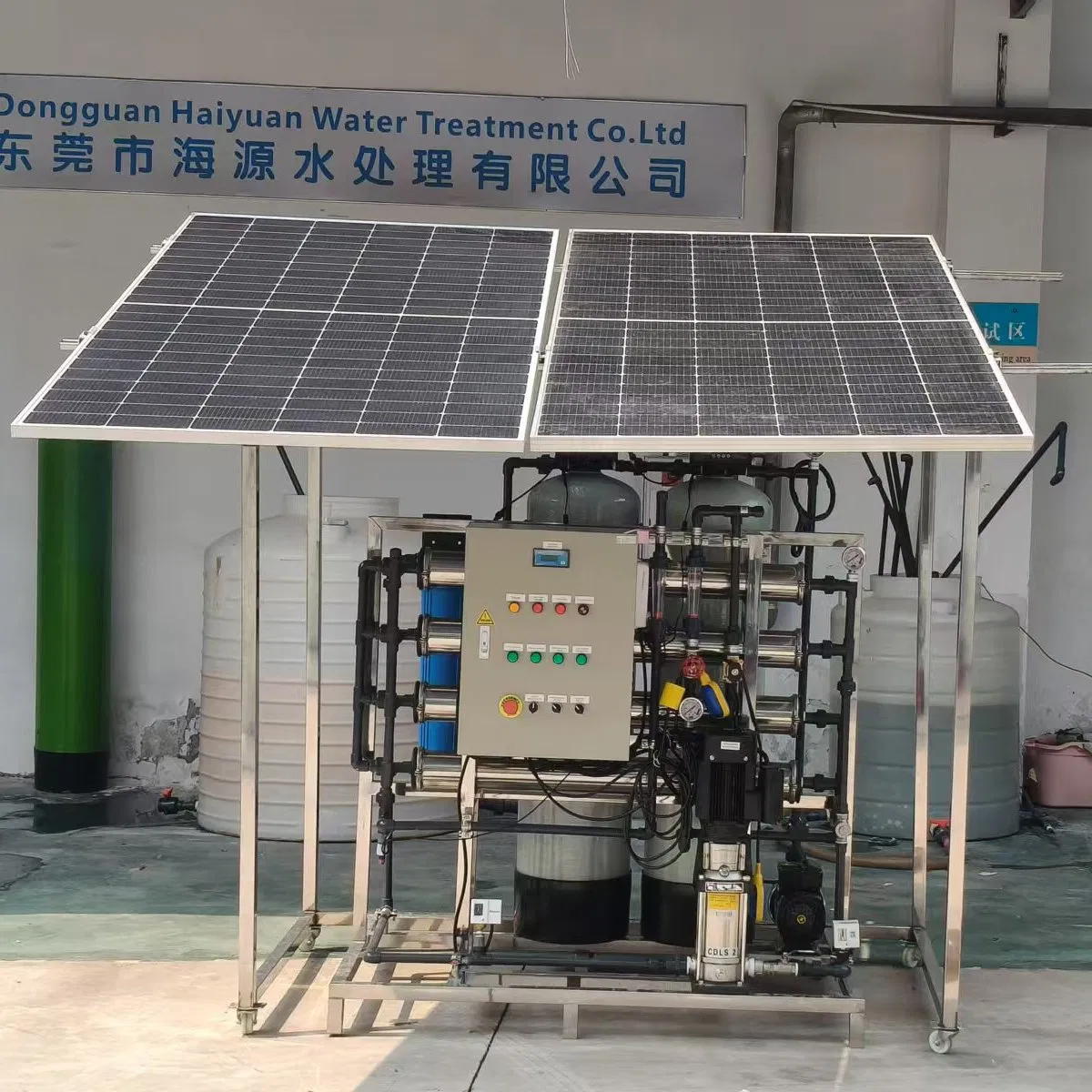

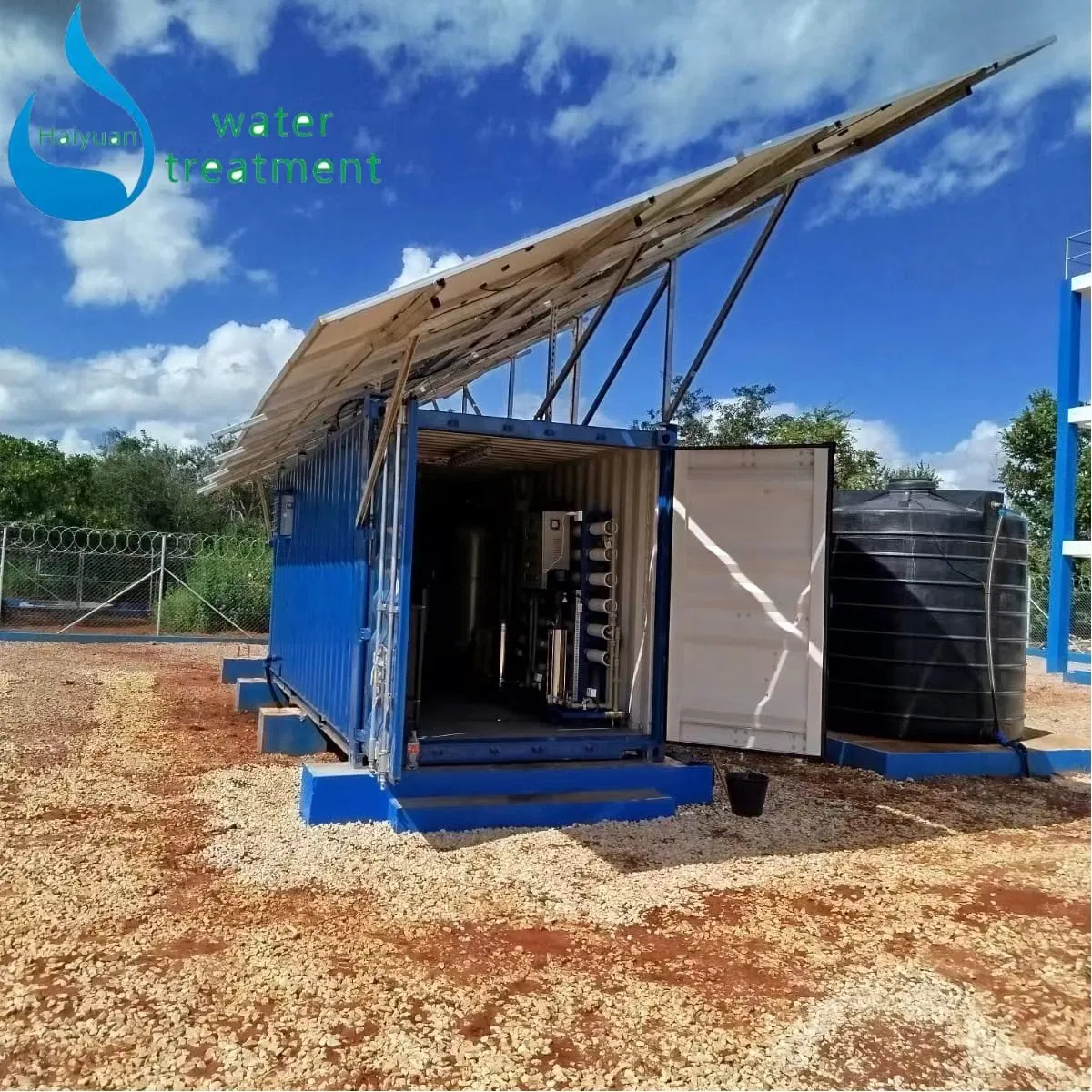

Solar Reverse Osmosis RO System 1000LPH

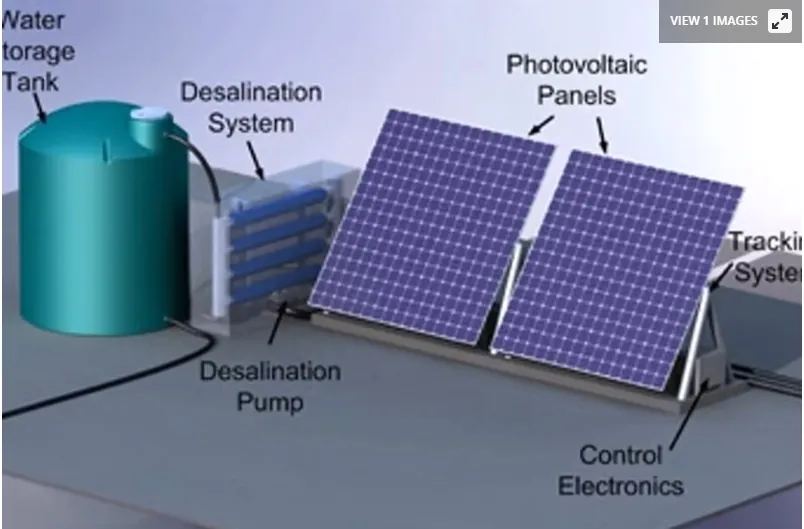

A solar powered reverse osmosis water system is a device that uses solar energy to remove impurities from water (such as seawater, brackish water, etc.) through reverse osmosis technology to produce fresh water.
⭐ System Advantages
- Low operating cost: Solar energy is free energy, saving significant costs in long-term operation.
- Strong adaptability: Ideal for remote areas, islands, and disaster zones with no power supply.
- Good water quality: High desalination rate effectively removes inorganic salts, heavy metals, and bacteria.
- Sustainability: Inexhaustible energy source for stable long-term operation.
| HY-1000L/hr Solar RO System Specifications |
|---|
| Flow rate | 1000L/hr |
Recovery rate | 50% |
| Applicable power | 1PH x 220V, 50Hz |
Rated power | 1.65KW |
| Solar powered | 35 KW |
Inverter | 44KW |
| Solar panel | 14 PCS |
Battery | 14PCS, 36KW |

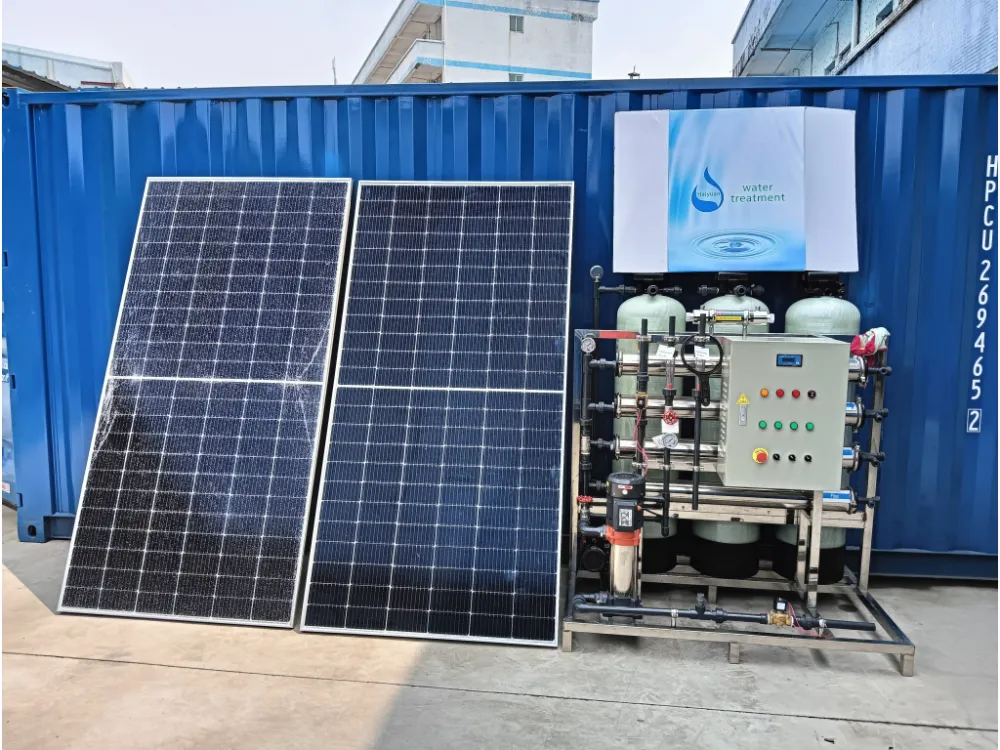

🌍 Application Scenarios
Suitable for Industrial water, Agricultural irrigation, Remote areas, Islands, and Coastal water-scarce cities.
Process Steps Introduction
| Pre-treatment |
Quartz sand filter |
Remove suspended particles and large impurities. |
| Active Carbon Filter |
Remove color, chloride, and organic matter. |
| Anti-scalant system |
Add chemicals to prevent membrane blocking. |
| 5/1 micron filter |
Remove micro colloids in the water. |
| Main Part |
High pressure pump |
Stainless steel 316L for RO membrane pressure. |
| RO membranes |
Over 98% desalination rate, removes ions. |
| CIP system |
For cleaning membranes after long-term use. |

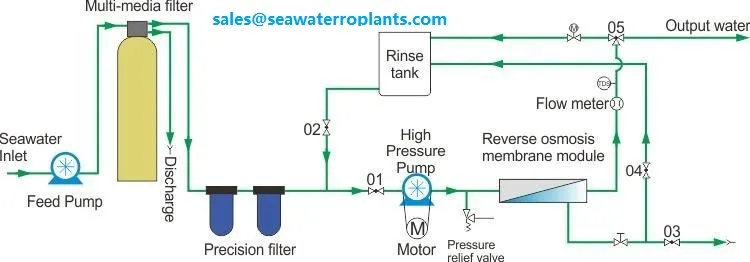

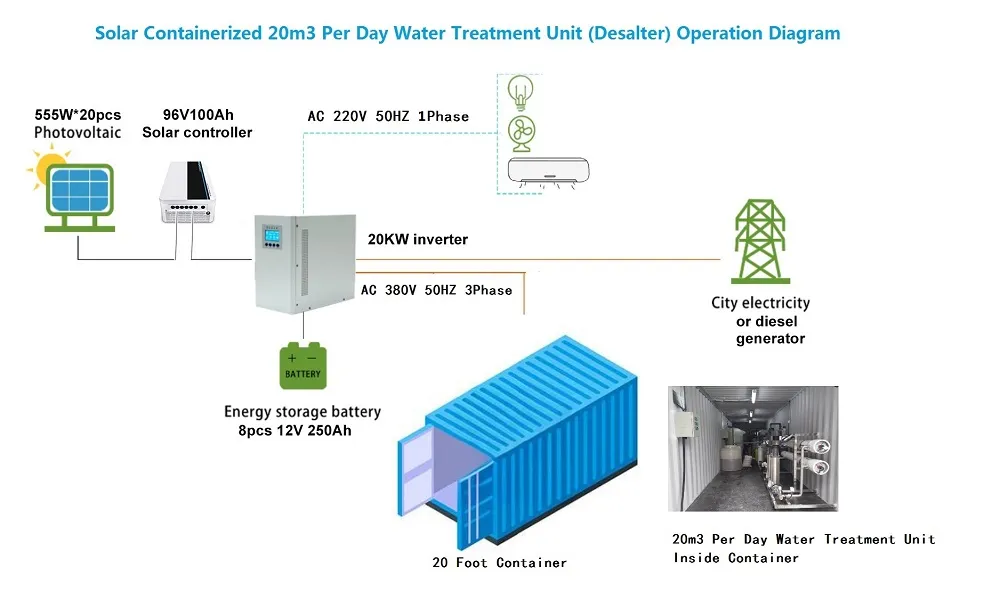

📊 Process Flow Chart

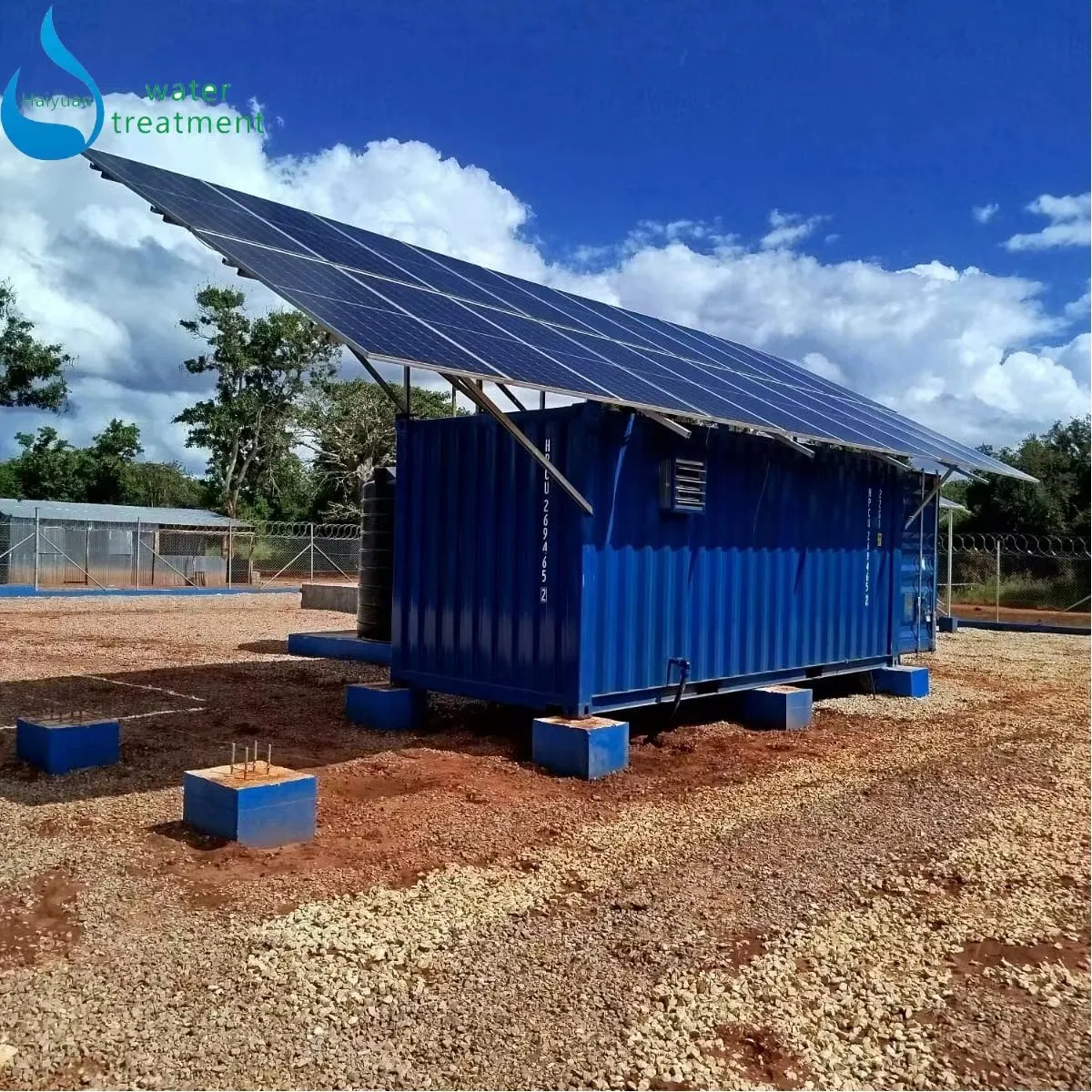

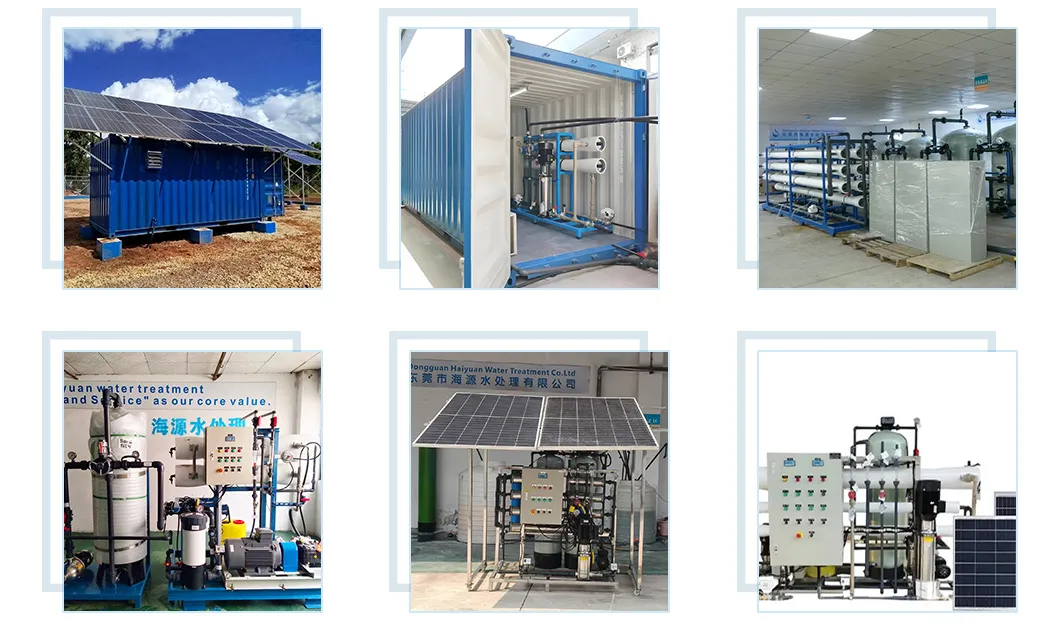

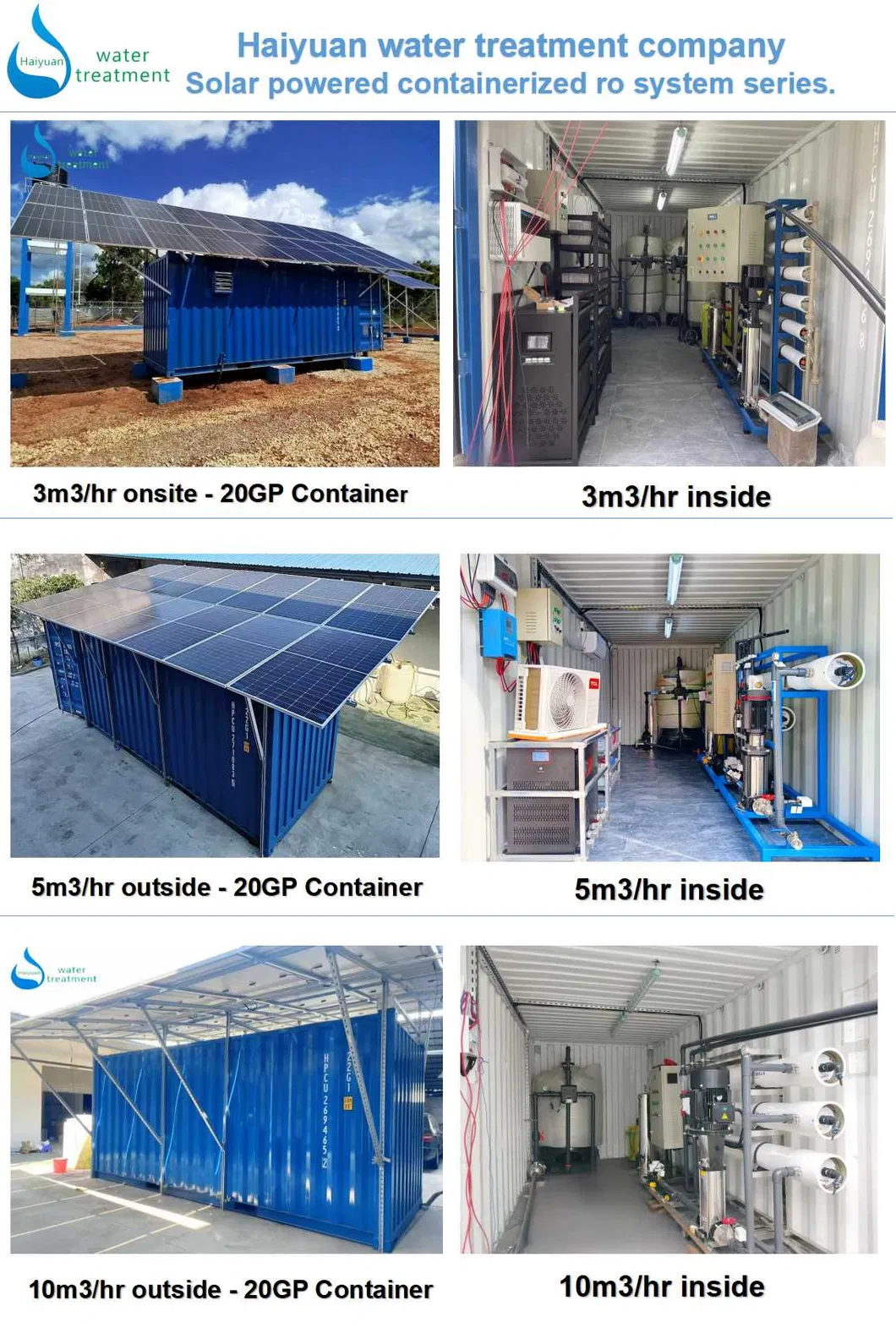

Containerized Solutions
| Model (20GP) |
Capacity m3/D |
Weight/kg |
Power |
| HYSW-20GP-20 | 20 | 2800 | 220V-440V |
| HYSW-20GP-30 | 30 | 2920 |
| HYSW-20GP-40 | 40 | 3030 |
Service and After-Sales
- Overseas service available for installation assistance.
- Direct manufacturer price and after-sales support.
- OEM & ODM options available.
- 24/7 After-sales department for operational support.
- One-year product guarantee and remote video guidance.
Frequently Asked Questions

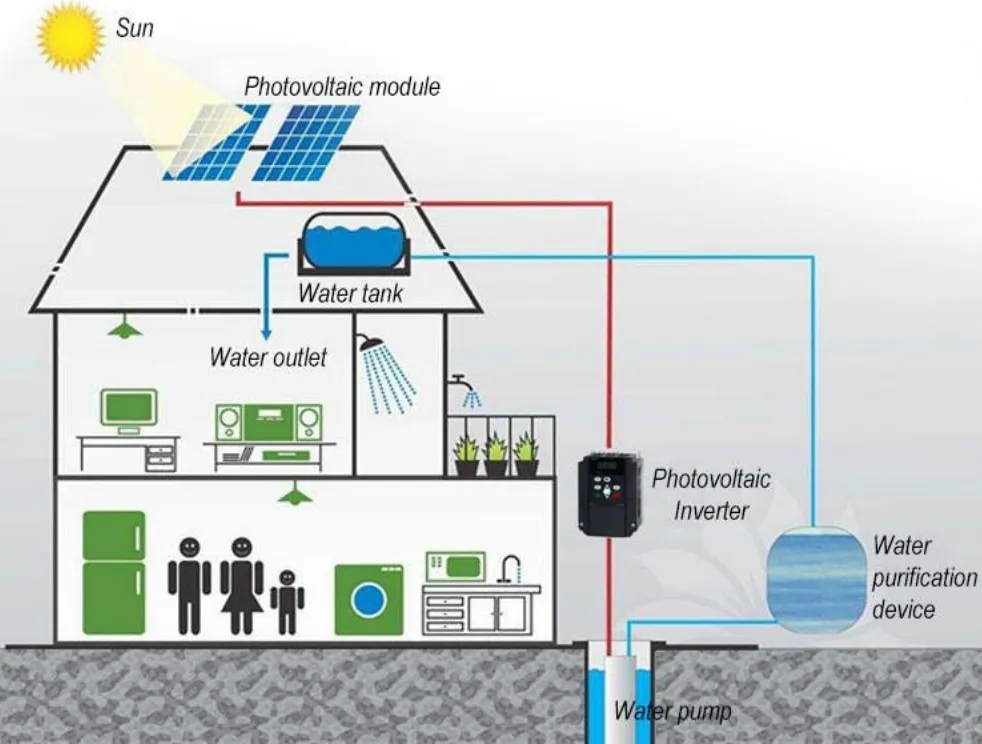

How does a solar-powered RO system work?
The system uses solar panels to capture energy, which is converted to power high-pressure pumps. These pumps force salt water through a reverse osmosis membrane to produce high-quality fresh water.
Can this system handle high salinity seawater?
Yes, the system is specifically designed for seawater desalination, featuring high-rejection RO membranes and Stainless Steel 316L components to resist corrosion.
Is it suitable for remote locations without a power grid?
Absolutely. The integration of solar panels and batteries allows the system to operate completely off-grid, making it perfect for islands and remote agricultural sites.
What maintenance is required for the membranes?
The system includes a CIP (Clean-In-Place) unit to wash membranes when they become blocked. Regular flushing via the control valves also extends the lifespan of the filter media.
What is the expected water quality?
The reverse osmosis process achieves a desalination rate of over 98%, removing salts, heavy metals, and bacteria to provide water that meets drinking standards.
Do you provide technical support for installation?
Yes, we provide professional installation instructions, remote online video technical guidance, and overseas on-site service if required.
