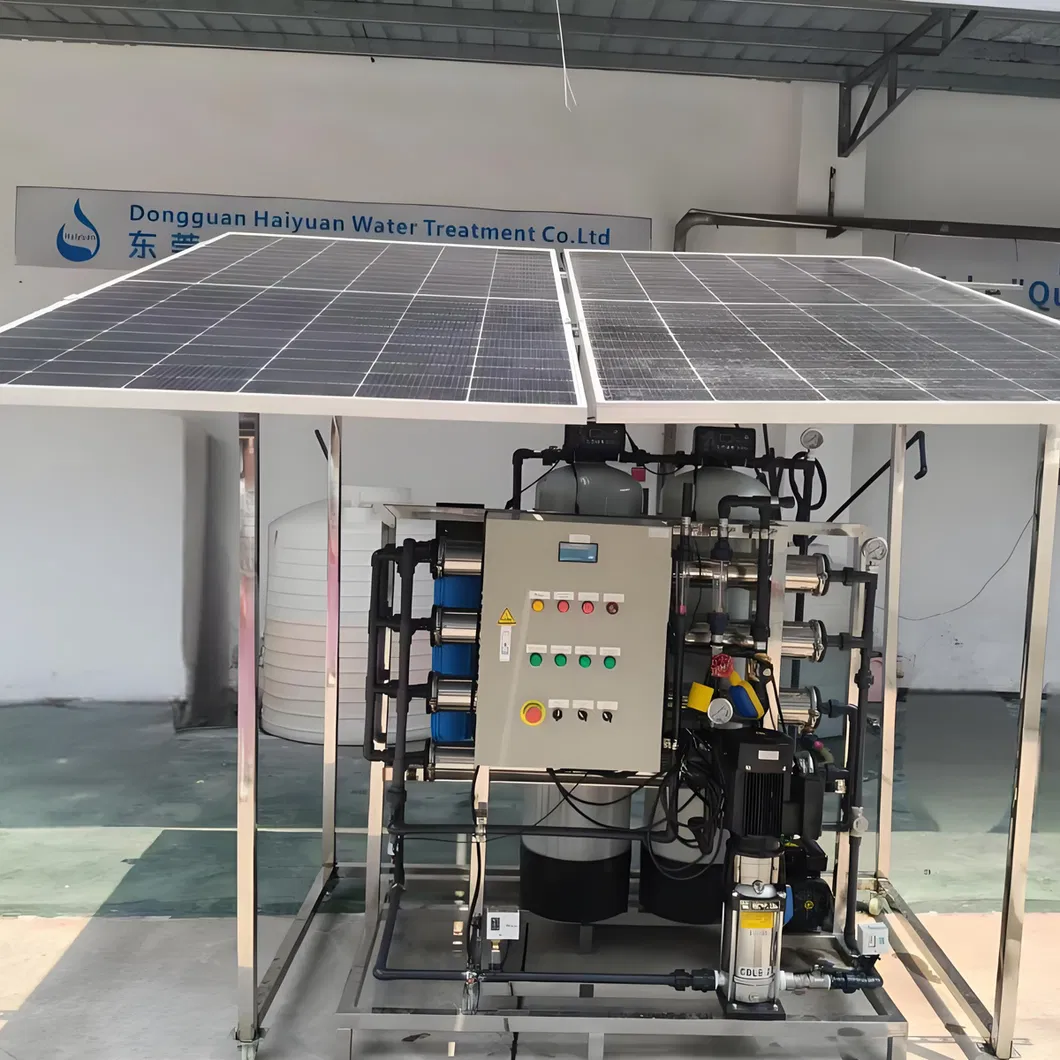

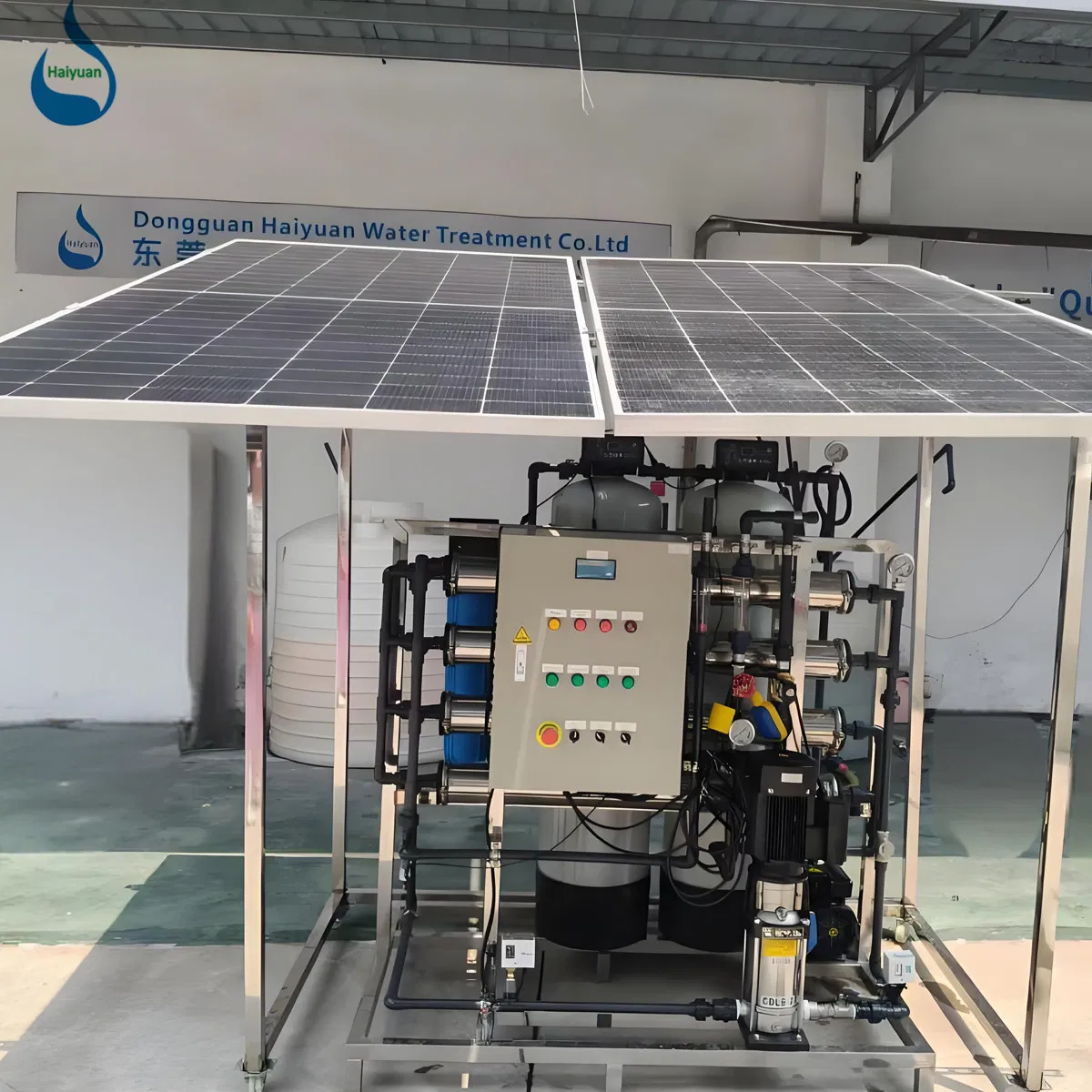

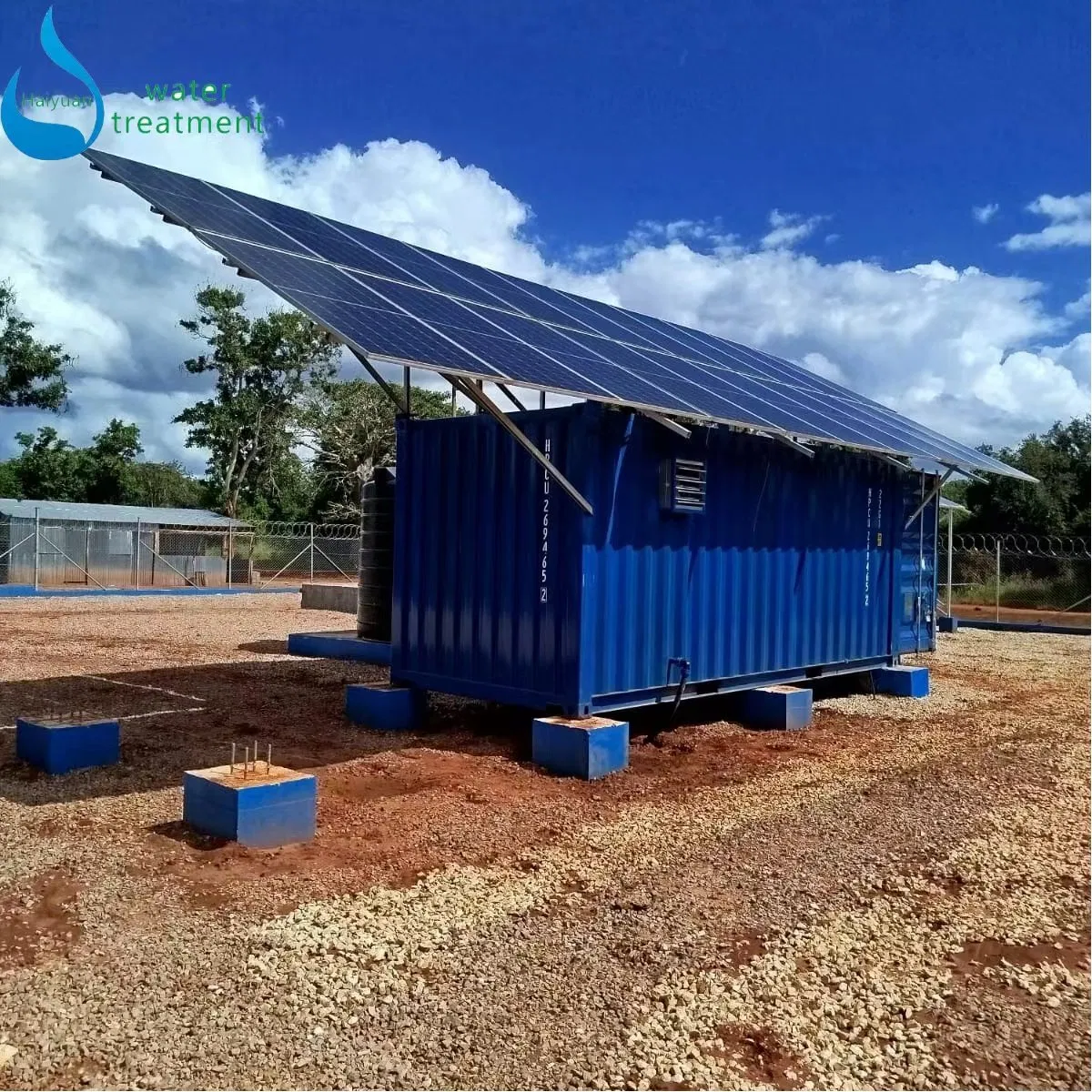

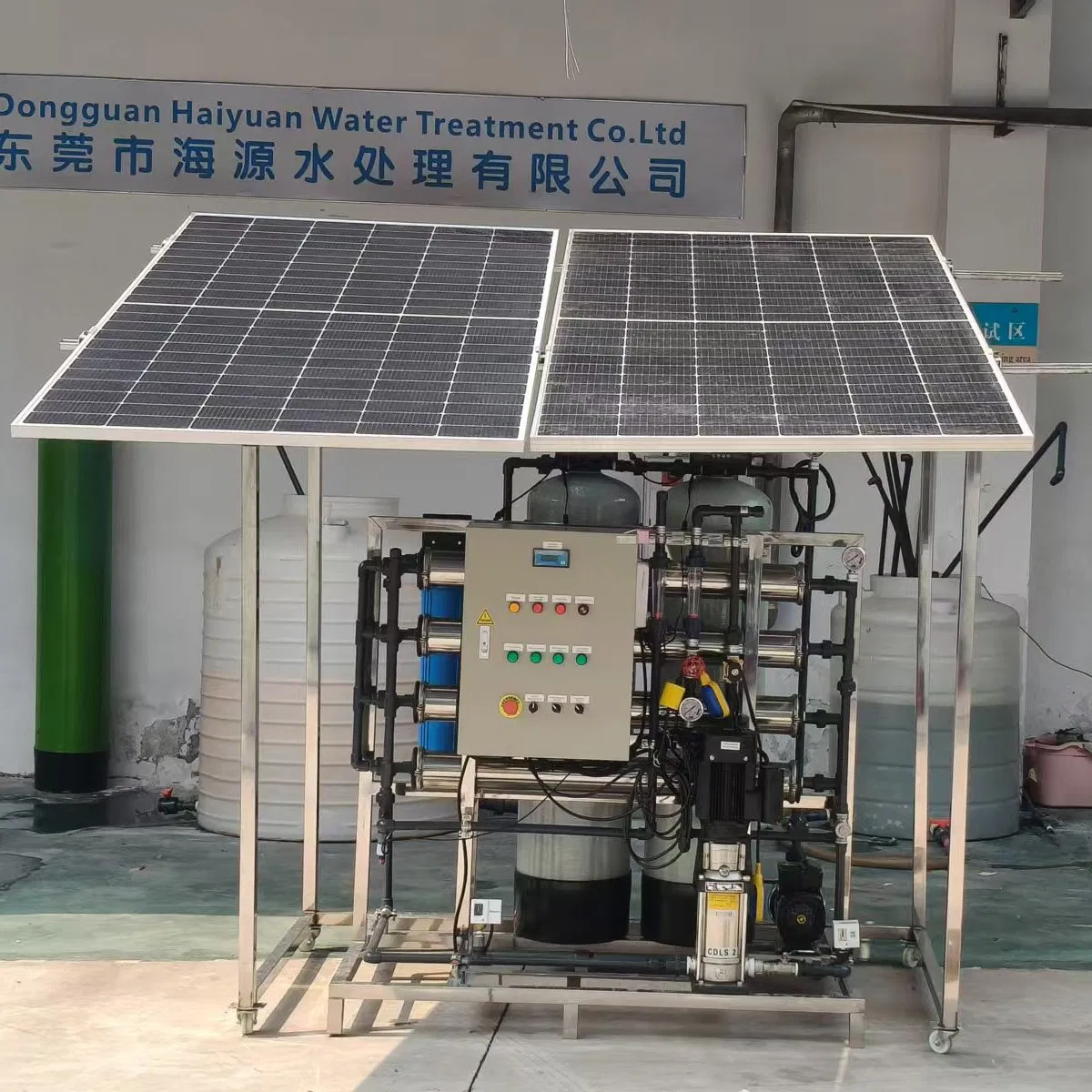

Solar Reverse Osmosis RO System 1000LPH

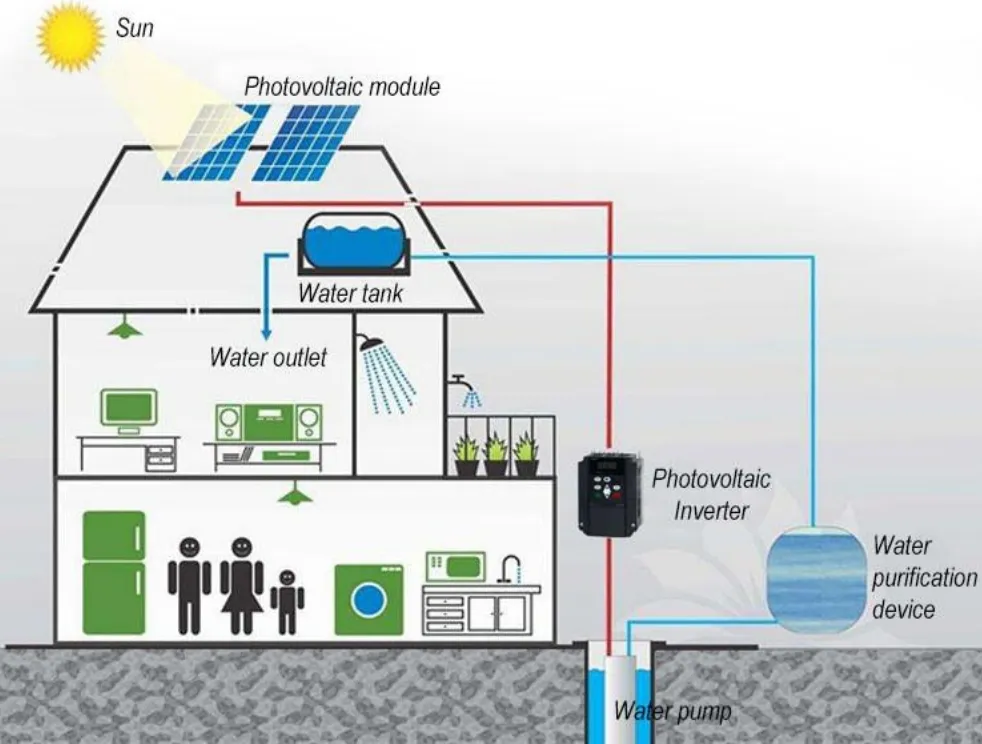

A solar powered reverse osmosis water system is a device that uses solar energy to remove impurities from water (such as seawater, brackish water, etc.) through reverse osmosis technology to produce fresh water. The system integrates solar heat collection, power conversion, and reverse osmosis membrane separation for a sustainable extraction process.
Solar energy is free, saving significant energy costs in long-term operation.
Suitable for remote areas, islands, and disaster zones with no power supply.
Effectively removes salts, heavy metals, bacteria, and organic matter.
Utilizes inexhaustible solar energy for stable, long-term water supply.
| HY-1000L/hr Solar RO System Parameters | |||
|---|---|---|---|
| Flow rate | 1000L/hr | Recovery rate | 50% |
| Applicable power | 1PH x 220V, 50Hz | Rated power | 1.65KW |
| Solar powered | 35 KW | Inverter | 44KW |
| Solar panel | 14 PCS | Battery | 14PCS, 36KW |
| Incoming TDS | 80-100 ppm | Output TDS | <0.6ppm |

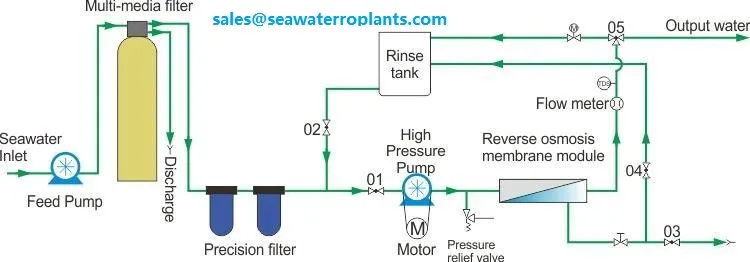

| Stage | Component | Function |
|---|---|---|
| Pre-treatment | Feed water pump (SS316L) | Provides pressure for filters |
| Quartz sand filter | Removes suspended particles | |
| Active Carbon Filter | Removes color, chloride, and organic matter | |
| RO Main Part | High pressure pump | Provides pressure for RO membrane |
| RO membranes | >98% desalination rate |

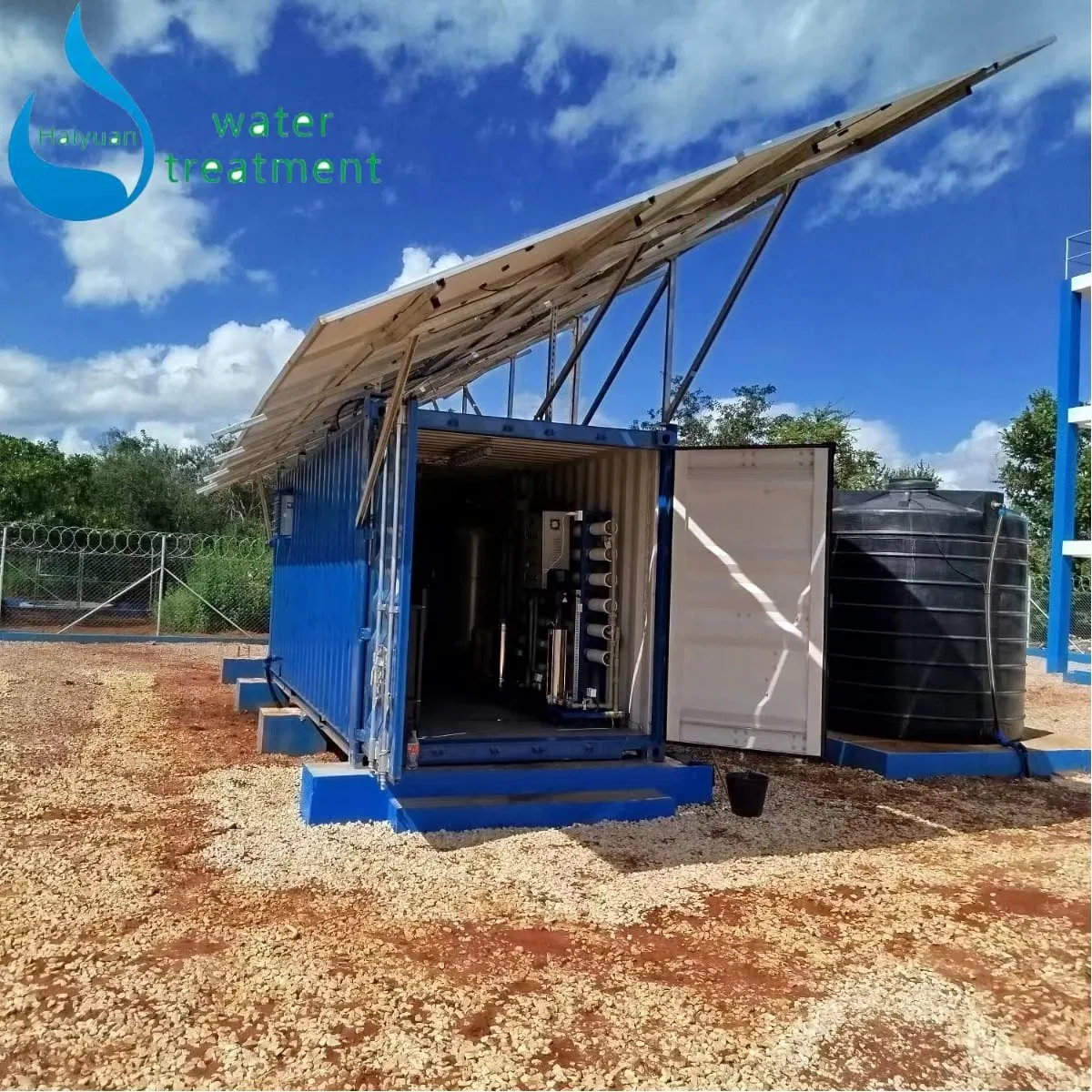

Our team specializes in the design, manufacture, installation, and commissioning of containerized solar-powered water purification and desalination plants. With over 15 years of experience, we provide integrated professional solutions focusing on quality and service.
