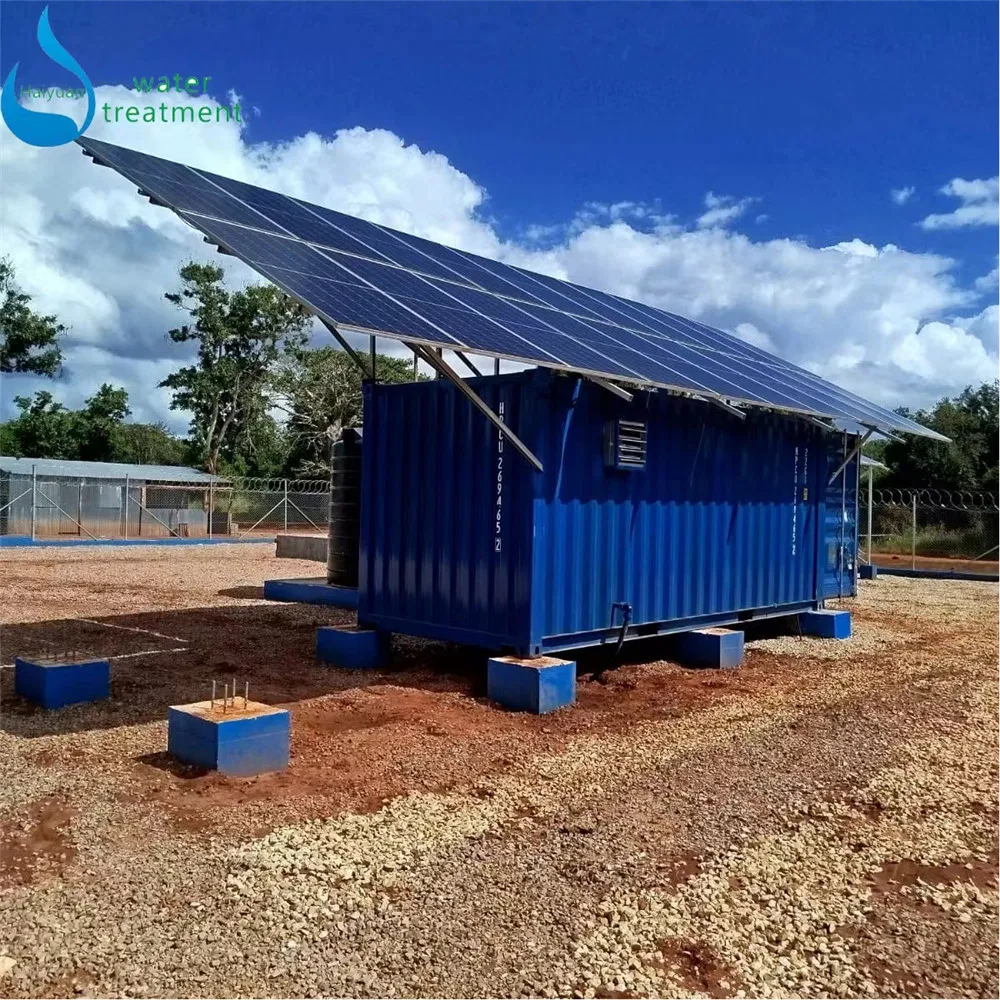

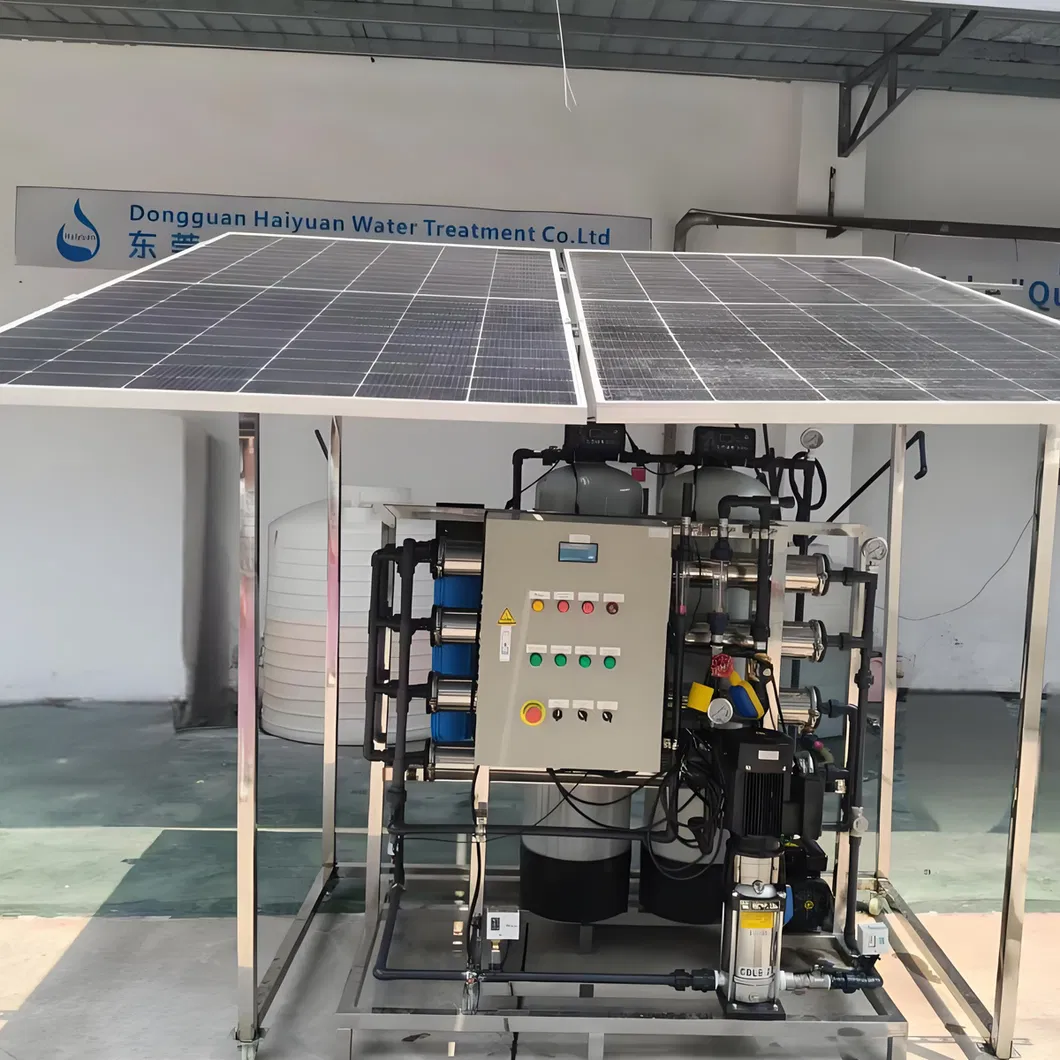

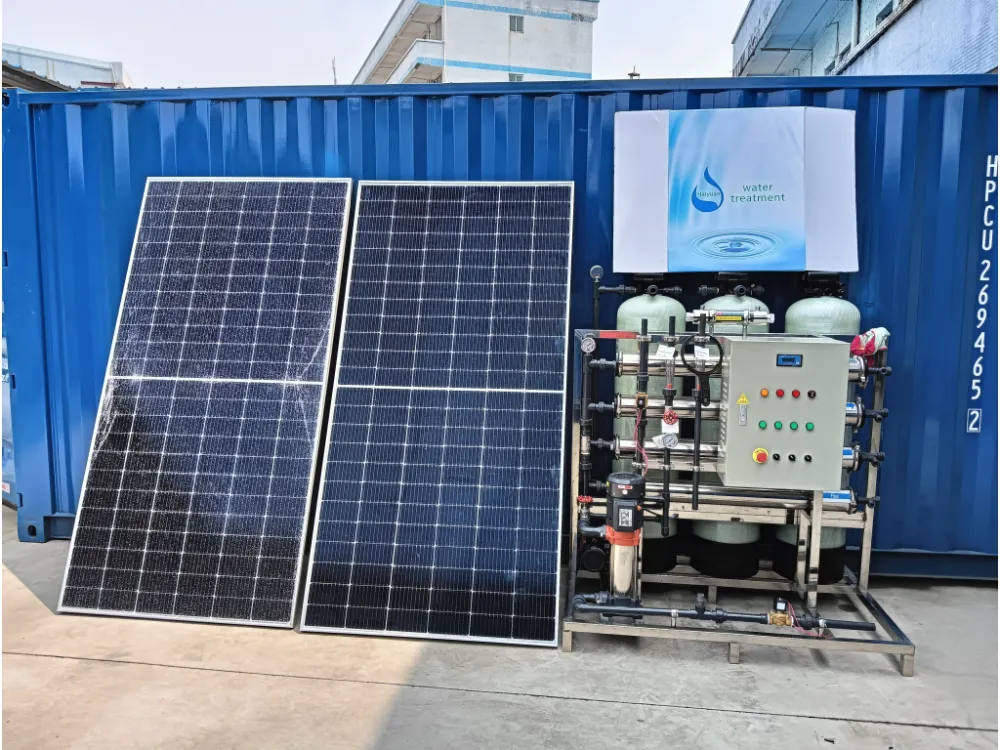

Solar Powered Containerized Reverse Osmosis Desalination Treatment System

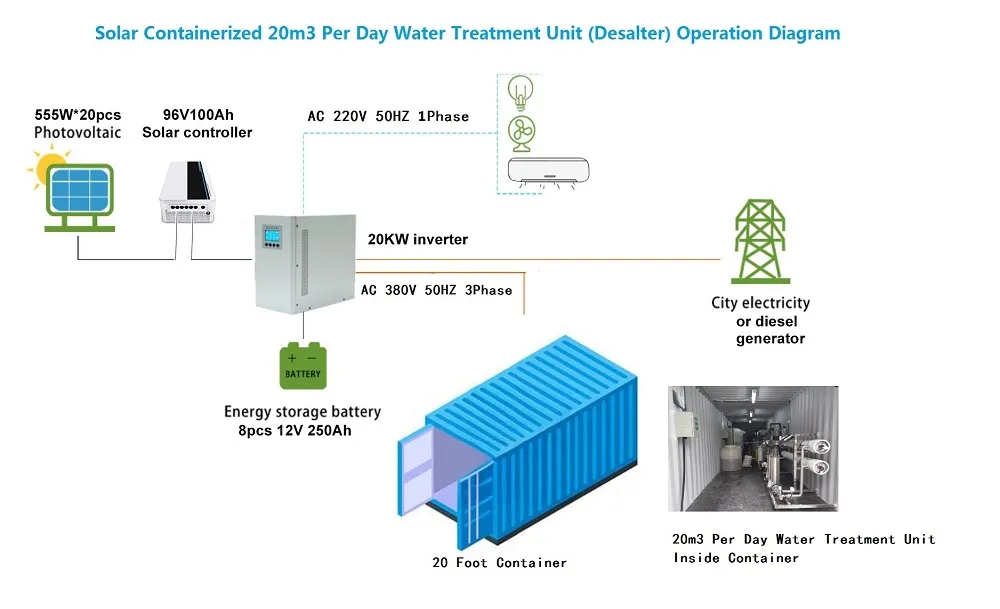

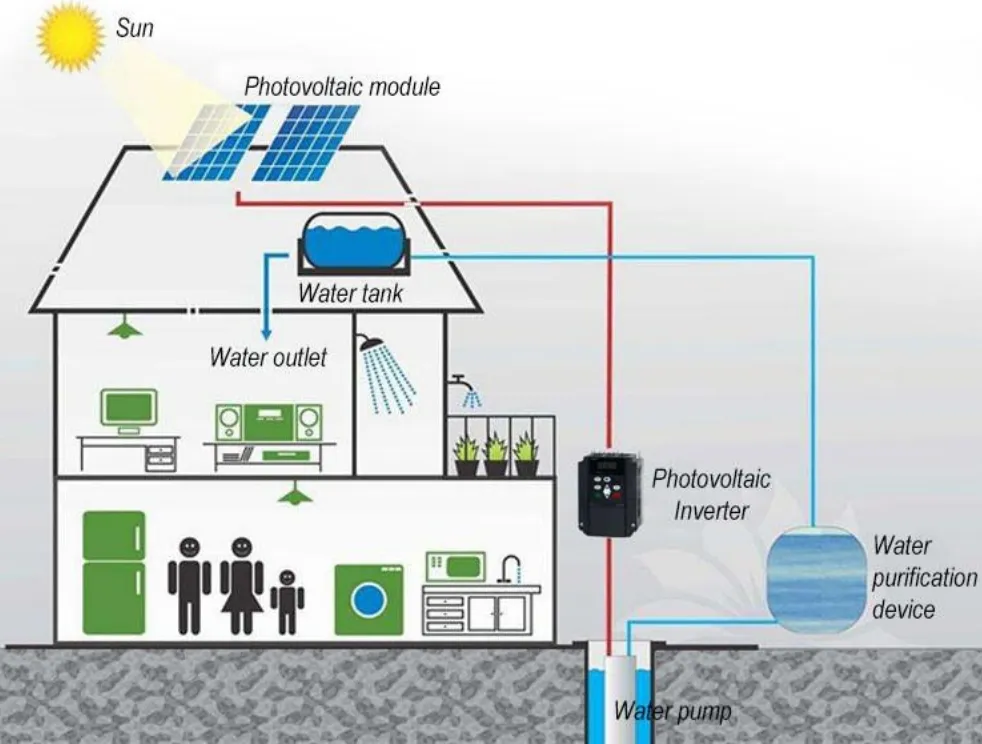

A solar powered reverse osmosis water system is a device that uses solar energy to remove impurities from water (such as seawater, brackish water, etc.) through reverse osmosis technology to produce fresh water. The system integrates solar heat collection, power conversion and reverse osmosis membrane separation to achieve a green and sustainable process of extracting fresh water.
Low Operating Cost
Uses free solar energy, significantly saving electricity costs during long-term operation.
Strong Adaptability
Ideal for remote areas, islands, and disaster zones with limited power supply.
Premium Water Quality
High desalination rate removes salts, heavy metals, bacteria, and organic matter.
Sustainability
Utilizes inexhaustible renewable energy for a stable and eco-friendly energy supply.
| HY-1000L/hr Solar Reverse Osmosis System | |||
|---|---|---|---|
| Flow rate | 1000L/hr | Recovery rate | 50% |
| Rated power | 1.65KW | Solar Power Input | 3.5 KW |
| Solar Panel Qty | 14 PCS | Battery Capacity | 36KW (14PCS) |
| Output TDS | <0.6ppm | Operating Temp | 5-45ºC |
| Working Pressure | 2.9 Bar | RO Membranes | 4PCS 4040 |

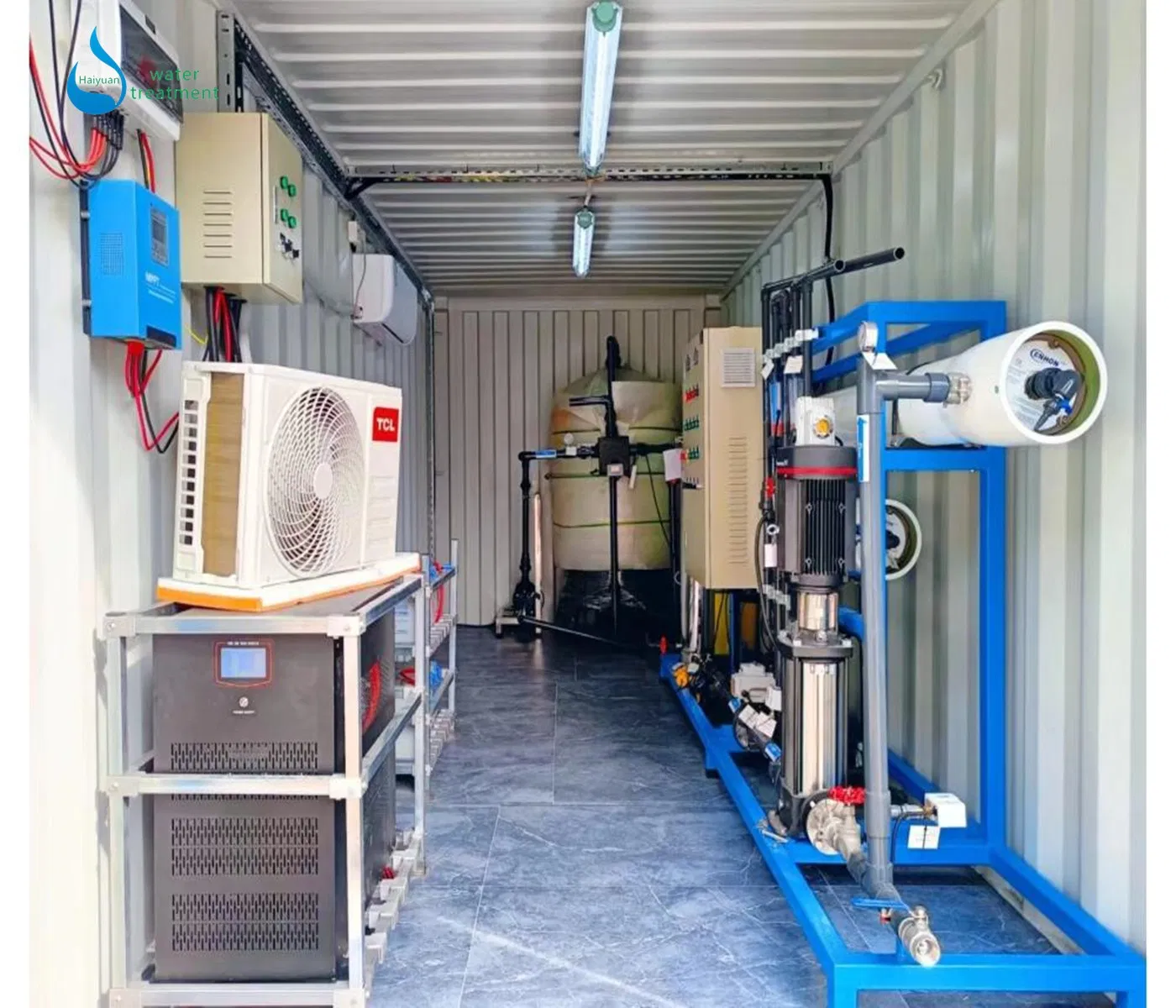

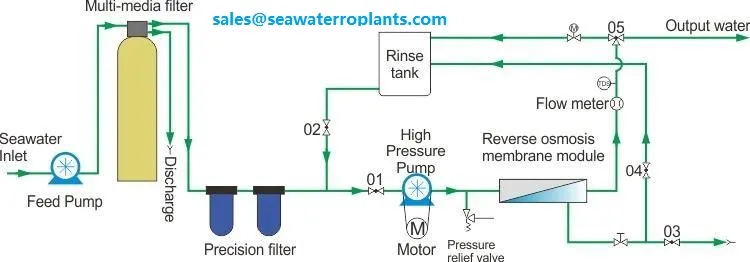

| Stage | Component | Function |
|---|---|---|
| Pre-treatment | Quartz Sand Filter | Remove suspended particles and large impurities. |
| Active Carbon Filter | Remove color, chloride, and organic matter. | |
| Anti-scalant System | Prevents membrane blocking and prolongs life. | |
| 5 & 1 Micron Filters | Precision filtration of micro colloids. | |
| Main RO Part | High Pressure Pump (SS 316L) | Provides necessary pressure for the RO process. |
| RO Membranes | Achieves >98% desalination rate. |

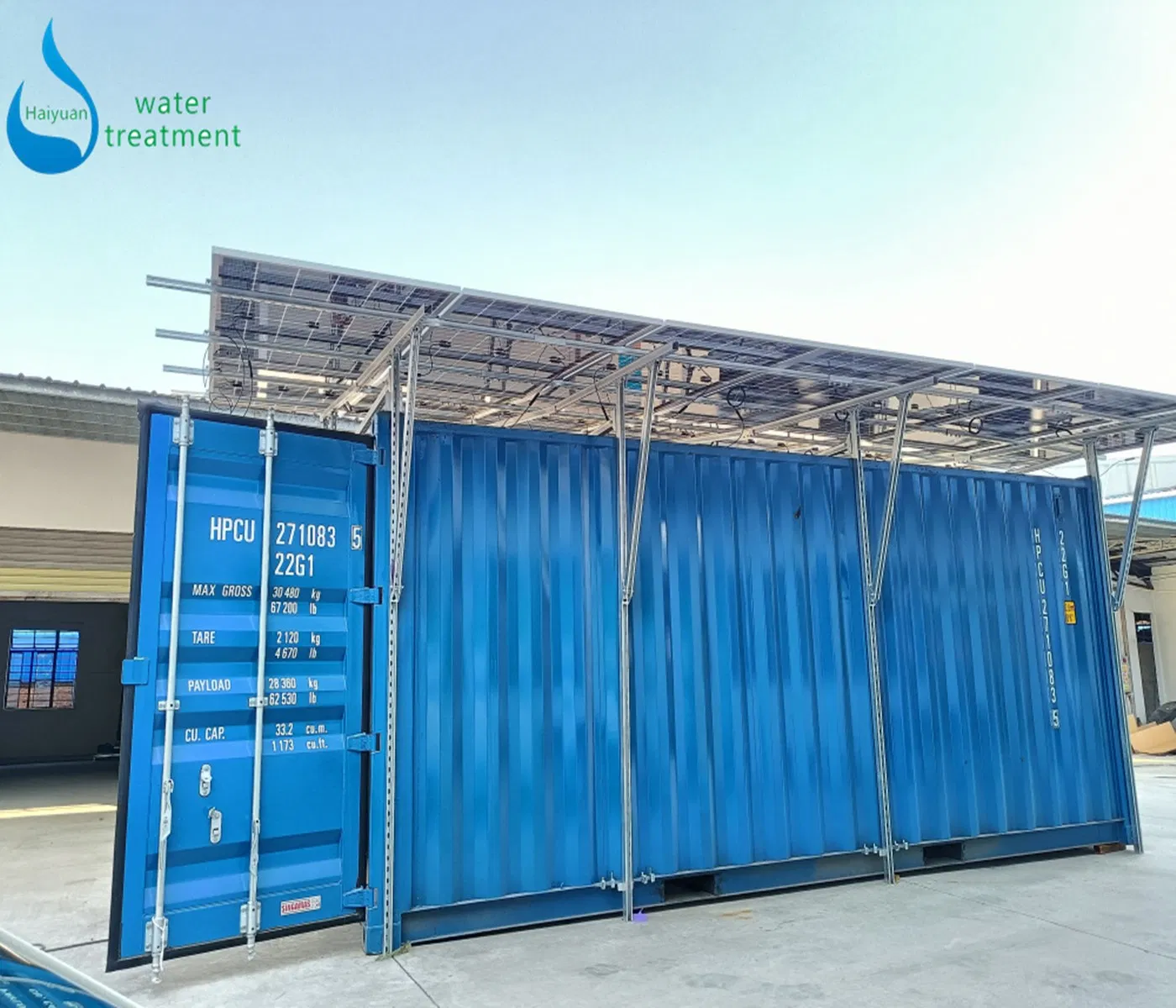

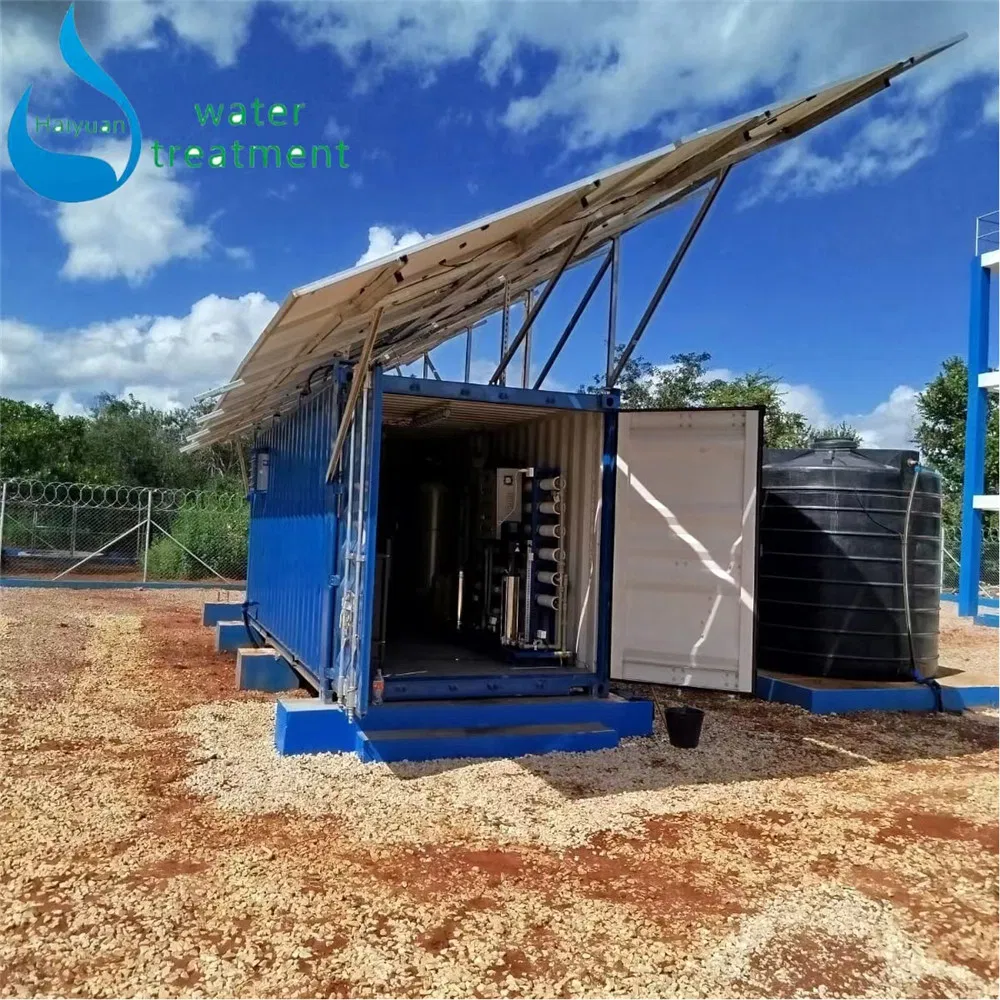

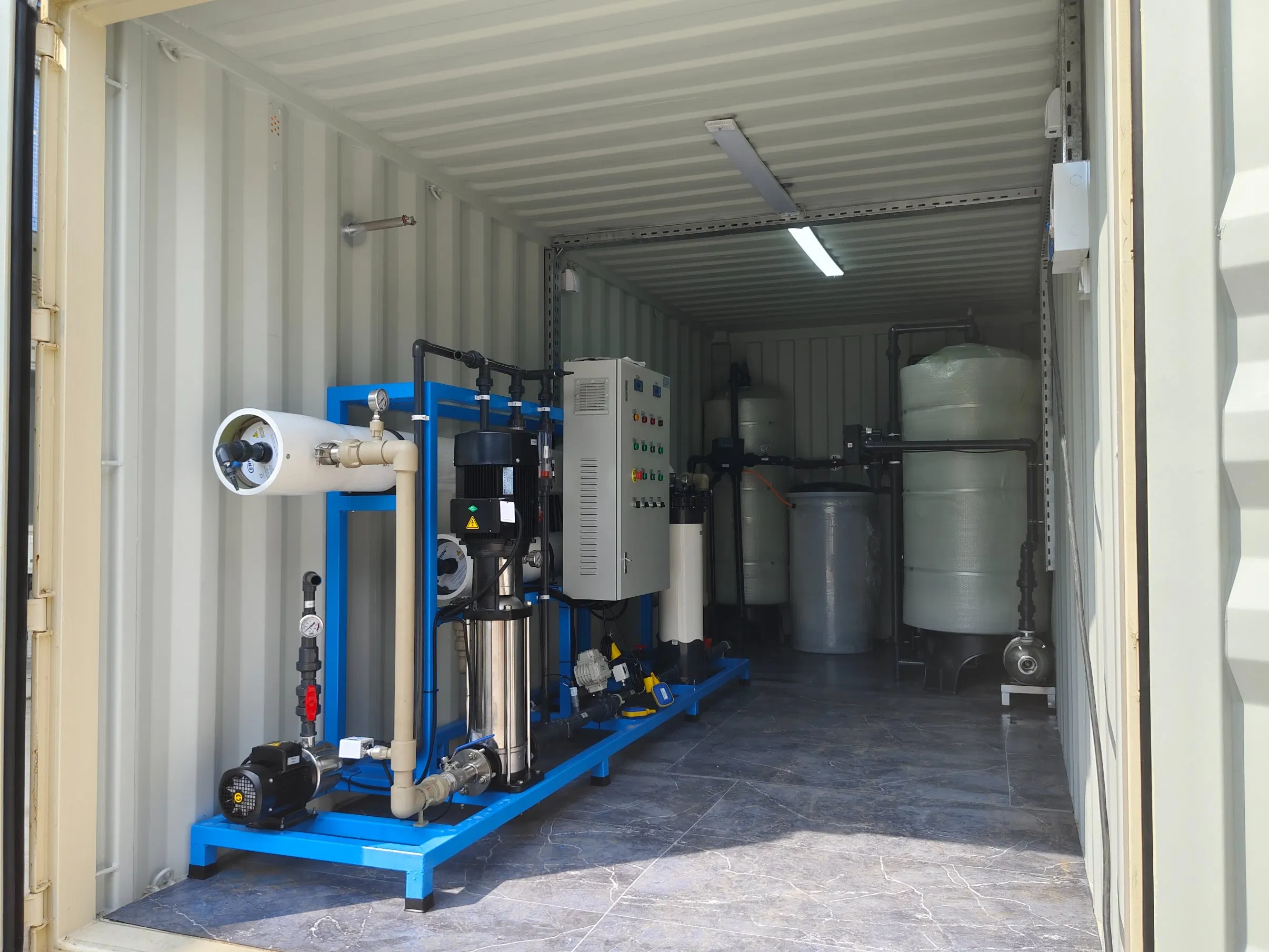

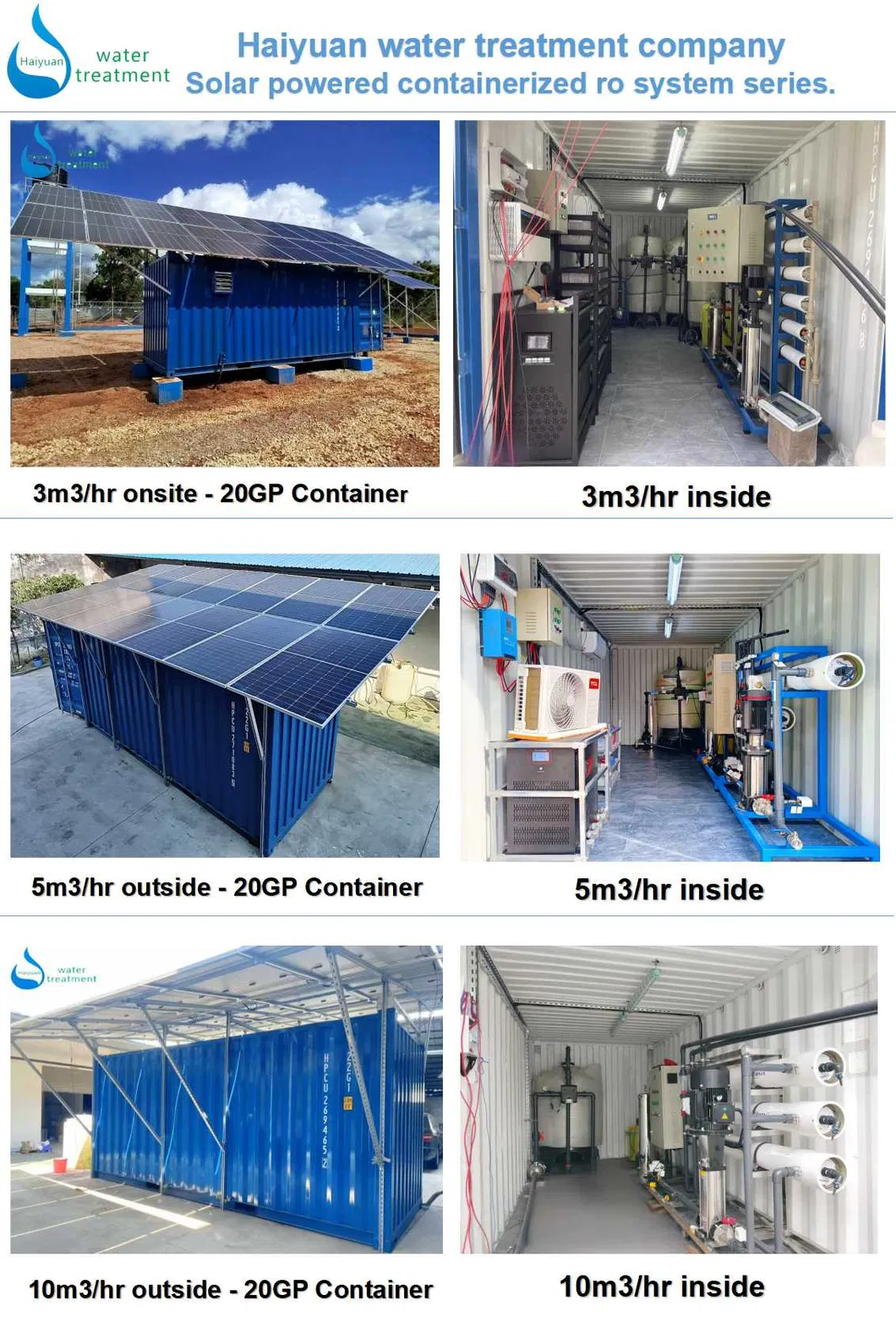

We provide 20GP and 40HGP containerized configurations for easy transport and rapid installation.
Installation: Overseas onsite service and remote video guidance available.
Customization: Full OEM & ODM services for specific flow rates and requirements.
Support: 24/7 after-sales department and 1-year product guarantee.
